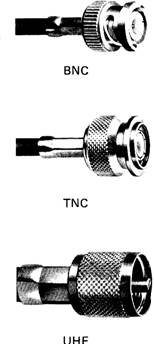

Coaxial cable assemblies with
crimp connectors |
|
SMB |
|
QLA |
|
H4
(MHV) |
|
A
satisfactory cable assembly is of great importance for all RF connections.
CASA manufactures ready‑for‑use cables in any variation required by
the customer. The purchase of cable assemblies with connectors offers many
advantages: ‑
faultless assembly by trained specialists ‑
no stocking of connectors and cables ‑
no scrap ‑
no expenditure on assembly equipment ‑
electrically matched cables and connectors from the
same supplier ‑
markings and colour codings |
|
‑
tested in accordance with customer's specifications, where required. SMS |
|
All
enquiries and orders for Leads and Harnesses should give the following
details: |
|
Cable
Type . . . . . . . . . . . (according to Catalogue). |
|
Connector
Type . . . . . . (according to Catalogue) at one end
of Lead. Connector Type . . . . .
(according to Catalogue) at other end of Lead. Length of Cable required or
OVER‑ALL length (to ends of Connectors) |
|
o f assembled Lead. |
|
Quantity of
Leads or Harness required. |
|
The
following additional requirements can be met: |
|
1. Colour coded
stress relieving tape sleeves can be fitted to most crimp connectors. |
|
2. Special identification with Heat‑Shrink
Sleeving, suitably marked or colour‑coded. |
|
Special requirements for the
packaging of the Leads and Harnesses, e.g. individual sealed plastic bags
with stock list numbers. |
|
Close
conformity to the exact electrical length of Lead. Please specify your
particular tolerances if desired (normal tolerance ± 2 mm / metre). |
|
Taper
Sleeves eliminates stress. |
|
Available
in 10 colours. |
|
PREFERRED CABLE TYPES |
|
Type Impedance Construction Size RG‑58C/U 50
± 2 E2 PE/PVC 11 4.95 Dia. RG‑58C/U‑1 50
± 1 E2 PE/PVC 11 4.96 Dia. RG‑59B/U 75
± 3 SZ PE/PVC 11 6.10 Dia. RG‑59B/U‑2 75
± 0.75 SZ PE/PVC 11 6.10 Dia. RG‑62A/U 93
± 5 SZ Semi‑Air / PVC 11 6.10 Dia. RG‑174/U 50
± 2 E2 PE/PVC 1 2.55 Dia. RG‑213/U 50
± 2 E2 PE/PVC 11 10.30 Dia. RG‑213/U‑1 50
± 1 E2 PE/PVC 11 10.30 Dia. RG‑316/U 50 ± 2 SZ PTFE/FEP 2.50 Dia. GO‑3233 75 ± 3 SZ PE/PVC 11 5.00 Dia. GO‑4233d‑8 75 ± 0.75 E2 Double Screen 6.70 Dia. |
|
OTHER CABLE TYPES
UPON REQUEST. |
|
Catalogues with full specifications |
|
of cable and connectors are available
upon request. |
|
A specialty: Coaxial instrument
leads, 50 or 75 ohm with specified coaxial connector at one end and coaxial
connector, crocodile clip, probe clip, hook probe, or banana plug at the
other. Available with coloured
taper sleeves in lengths of 250 mm or multiples thereof. |
|
Full
range of Inter‑Series Adaptors available. |
|
SUHNER
CABLE + SUHNER CONNECTOR = CASA PRECISION ASSEMBLY. |
|
Distributed by: |
|
CASA modular systems
ltd |
|
TELEPHONE
5687‑277, |
|
CCA/ 1‑8/78/ 1000 |
