UT-141-75
|
|
Semi-Rigid Coaxial
Cable |
|
|
MECHANICAL
CHARACTERISTICS |
| |
| Outer Conductor Diameter, inch (mm) |
0.141+/-0.001 (3.581+/-0.0254) |
| Dielectric Diameter, inch (mm) |
0.1175 (2.985) |
| Center Conductor Diameter, inch (mm) |
0.0201+/-0.0005 (0.511+/-0.0127) |
| Maximum Length, feet (meters) |
20 (6.1) |
| Minimum Inside Bend Radius, inch (mm) |
0.188 (4.78) |
| Weight, pounds/100 ft. (kg/100
meters) |
2.98 (4.43) |
|
|
ELECTRICAL
CHARACTERISTICS |
| |
| Impedance, ohms |
75+/-1.0 |
| Frequency Range GHz |
DC-38 |
| Velocity of Propagation % |
70 |
| Capacitance, pF/ft. (pF/meter) |
19.3 |
Typical Insertion Loss, dB/ft. (dB/meter)
and Average Power Handling,
Watts CW at 20
degrees Celsius and Sea level |
Frequency |
Insertion Loss |
Power |
0.5 GHz
1.0 GHz
5.0 GHz
10.0 GHz
20.0 GHz |
0.08 (0.28)
0.12 (0.40)
0.29 (0.96)
0.44 (1.45)
0.67 (2.20) |
549
382.2
160.6
108.6
72.4 |
| Corona Extinction Voltage, VRMS @ 60 Hz |
2000 |
| Voltage Withstand, VRMS @ 60 Hz |
5000 |
|
|
ENVIRONMENTAL
CHARACTERISTICS |
| |
| Outer Conductor Integrity Temperature, Celsius |
175 |
| Maximum Operating Temperature, Celsius |
125 |
|
|

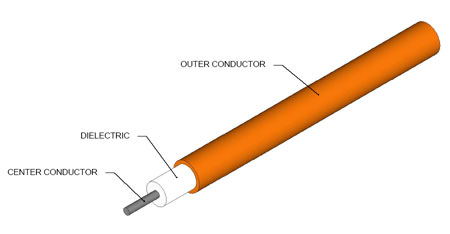

| Outer Conductor |
Copper |
| Dielectric |
PTFE |
| Center Conductor |
SPCW |
|
|
|
