206 Jones Blvd. Pottstown, PA 19464 USA
Phone:
610-495-0110 : 800-223-2629
www.micro-coax.com
|
UT-085-75
|
|
Semi-Rigid Coaxial
Cable |
|
|
MECHANICAL
CHARACTERISTICS |
| |
| Outer Conductor Diameter, inch (mm) |
0.085+/-0.001 (2.159+/-0.0254) |
| Dielectric Diameter, inch (mm) |
0.067 (1.702) |
| Center Conductor Diameter, inch (mm) |
0.0113+/-0.005 (0.287+/-0.0127) |
| Maximum Length, feet (meters) |
20 (6.1) |
| Minimum Inside Bend Radius, inch (mm) |
0.125 (3.175) |
| Weight, pounds/100 ft. (kg/100
meters) |
1.2 (1.79) |
|
|
ELECTRICAL
CHARACTERISTICS |
| |
| Impedance, ohms |
75+/-1.0 |
| Frequency Range GHz |
DC-67 |
| Velocity of Propagation % |
70 |
| Capacitance, pF/ft. (pF/meter) |
19.3 |
Typical Insertion Loss, dB/ft. (dB/meter)
and Average Power Handling,
Watts CW at 20
degrees Celsius and Sea level |
Frequency |
Insertion Loss |
Power |
0.5 GHz
1.0 GHz
5.0 GHz
10.0 GHz
20.0 GHz |
0.15 (0.48)
0.21 (0.68)
0.49 (1.60)
0.71 (2.34)
1.06 (3.47) |
173.3
121.4
52.2
35.9
24.4 |
| Corona Extinction Voltage, VRMS @ 60 Hz |
1200 |
| Voltage Withstand, VRMS @ 60 Hz |
2500 |
|
|
ENVIRONMENTAL
CHARACTERISTICS |
| |
| Outer Conductor Integrity Temperature, Celsius |
150 |
| Maximum Operating Temperature, Celsius |
125 |
|
|

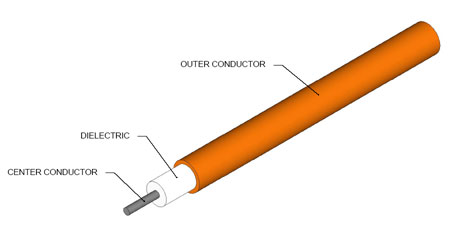

| Outer Conductor |
Copper |
| Dielectric |
PTFE |
| Center Conductor |
SPCW |
|
|
|
