Overview

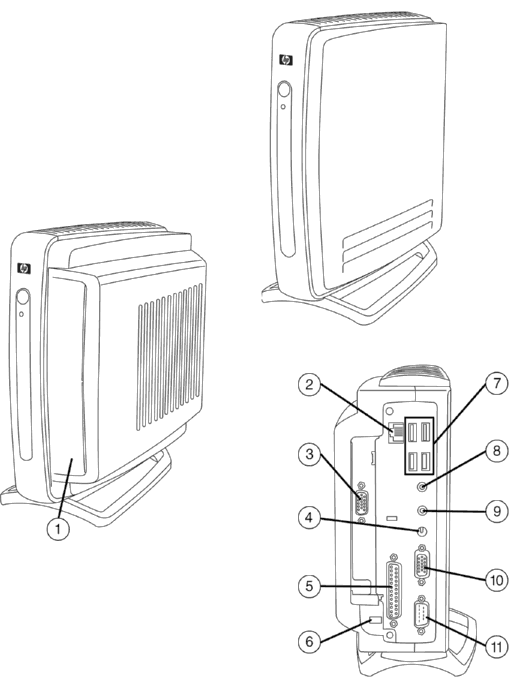

HP Compaq t5500 Thin Client


1.
 Optional PCI Expansion Module
7.
 USB Connectors
2.
 RJ-45
8.
 Audio Connector - Mic In
3.
 Optional PCI Slot External Connector
9.
 Audio Connector - Line Out
4.
 DC Power Input
10.
 Video Connector
5.
 Parallel Connector
11.
 Serial Connector
6.
 Security Lock
At A Glance
  • Simplified IT management for the enterprise.
  • Upgraded features and legacy support for mainstream corporate use
  • Helps lower ownership costs and increase resource efficiency for each end-user
  • 733 MHz processor
  • Powerful, discrete graphics
  • 128 MB of DDR SDRAM standard
  • Optional PCI Expansion Module
  • Broad range of support for options and peripherals
  • Microsoft® Windows®CE .NET operating system
  • Protected by Hewlett-Packard Services, including a limited three-year warranty – certain restrictions and exclusions apply.
contents
 Overview      Standard Features - Models      Options      Technical Specifications line.gif (50 bytes)

Standard Features - Models
DC641A Processor Transmeta Crusoe TM5800 733 MHz
Flash (ROM) 32 MB
Memory 128 MB DDR SDRAM (NOTE: 16 MB of system RAM is reserved for processor usage.)
Operating System Microsoft Windows CE .NET v4.20
Browser Internet Explorer 6.0
Client Management Software Altiris Deployment Solution
Terminal Personalities Standard Yes
contents
 Overview      Standard Features - Models      Options      Technical Specifications line.gif (50 bytes)

Options
Monitors HP Flat Panel Monitor L1502 (15-inch) P9617D
HP Flat Panel Monitor L1702 (17-inch) P9621D
HP Flat Panel Monitor L1530 (15-inch) P9624A
HP Flat Panel Monitor L1730 (17-inch) P9625A
HP Flat Panel Monitor L1925 (19-inch) P9626A
HP Flat Panel Monitor L2035 (20-inch) P9614A
HP CRT Monitor v7550 (17-inch) P9013
HP CRT Monitor s9500 (19-inch) P9010
HP CRT Monitor s7500 (17-inch) P9008
HP CRT Monitor s5500 (15-inch) P9006A
HP CRT Monitor p930 (19-inch performance, North America) P9009D
HP CRT Monitor p930 (19-inch performance, outside North America) P9009W
3000 Series Elo Entuitive 1725C 17-inch CRT Touchmonitor (USB) (http://www.elotouch.com/)**
ET1725C-4UWE-3
3000 Series Elo Entuitive 1525L 15-inch LCD Desktop Touchmonitor (USB) (http://www.elotouch.com/)**
ET1525L-BUWC-1
Security Compaq Security Lock
294316-B21;
DC368A
Identix BioTouch USB 200 Fingerprint Scanner (http://www.identix.com/)**
BTU-200-ML5-300
Storage HP 128-MB Disk on Key
DC190B
HP 256-MB Disk on Key
DL973B
Compaq External MultiBay
217388-001;
DC373A
Compaq MultiBay 1.44-MB Diskette Drive (requires External MultiBay)
226935-B25;
DC362A
Compaq MultiBay 60-GB Hard Drive (requires External MultiBay)
278420-B25;
DC894A
Compaq MultiBay 24X CD-ROM Drive (requires External MultiBay)
298452-B25;
DC351A
Communications HP PCI Expansion Module with Riser Card (supports single PCI device, sold separately)
DE961A
HP WL220 Wireless PCI Adapter (requires PCI Expansion Module)
DC756B
Zoom 3049 External Serial High Speed 56K modem from Zoom (http://www.zoom.com/)**
3049-00-00C
Zoom 2985 USB 56K External Modem from Zoom (http://www.zoom.com/)**
2985-00-00C
Connectivity HP Wireless USB Mouse and Keyboard
300403-008
Edgeport/1 USB to 1 port Serial Cable from Inside Out Networks (http://www.ionetworks.com/)**
301-1001-11
Edgeport/2 USB to 2 port Serial Cable from Inside Out Networks (http://www.ionetworks.com/)**
301-1000-02
Edgeport/4 USB to 4 port Serial Cable from Inside Out Networks (http://www.ionetworks.com/)**
301-1000-04
Targus Ultra Mini 4-port USB Hub from Targus (http://www.targus.com/)**
PA055U
USB to Parallel Printer Cable (6 ft/1.8 m) from Inside Out Networks (http://www.ionetworks.com/)**
301-9006-01
Printers HP DeskJet 5550 (USB and parallel)
C6487C
HP DeskJet 6122 (USB and parallel)
C8954B
HP LaserJet 1200SE (USB and parallel)
C7047A
HP DeskJet 3820 (USB and parallel)
C8952A
Accessories Mounting Bracket
DY928A
Care Packs (not available in all countries) 9x5 Next-Business-Day Advanced Exchange - 3 Years
331653-001;
U4847E
9x5 Next-Business-Day On-Site Coverage - 3 Years
331655-001;
U4849E
Hardware Installation
331686-001;
U4865E
Hardware Installation (2 or more)
331687-001;
U4866E
**The warranties for HP or Compaq branded products are set forth in the express limited warranty statements accompanying such products. Although these third-party products may work effectively on HP or Compaq thin clients, HP does not support or warrant third-party products, including the interoperability of such products with HP or Compaq thin clients. However, third-party manufacturers and vendors may provide their own warranties and support directly to you. Please contact the manufacturers and vendors listed previously for support on their products.
contents
 Overview      Standard Features - Models      Options      Technical Specifications line.gif (50 bytes)

Technical Specifications
Processor Transmetta Crusoe TM5800 733 MHz
Memory Flash ROM 32 MB
System Memory 128 MB DDR SDRAM (NOTE: 16 MB of system RAM is reserved for processor usage.)
Graphics ATI Rage XC with 8-MB SDRAM discrete graphics memory, VESA monitor support
Mode Refresh Rates Color Depth
640 x 480 60, 70, 72, 75, or 80 Hz 8, 16, or 32-bit
800 x 600 60, 70, 72, 75, or 80 Hz 8, 16, or 32-bit
1024 x 768 60, 70, 72, 75, or 80 Hz 8, 16, or 32-bit
1280 x 1024 60, 70, 72, 75, or 80 Hz 8, 16, or 32-bit
1600 x 1200 60, 70, 72, or 75 Hz 8 or 16-bit
Input/Output/
Peripheral Support		 Keyboard Enhanced USB with Windows keys (104 keys) included
Mouse Scroll USB mouse included
Printer Local and/or network printers (RDP, ICA, LPD)
Video VGA-type video output (DB-15)
Audio Output Internal amplified speaker, 1/8-inch mini, full 16-bit stereo, 44-kHz sample rate
Input 1/8-inch mini microphone
Security Security lock slot (cable lock sold separately)
Communications Integrated Microsoft RDP 5.1 and Citrix ICA 6.3 for remote server access. Terminal personalities standard
Networking TCP/IP with DNS and DHCP support
10/100 BaseT Fast Ethernet, twisted pair (RJ-45)
Direct connection through RS-232, Point-to-Point Protocol (PPP), Point-to-Point over Ethernet (PPPoE), Point-to-Point Tunneling Protocol (PPTP), Layer-2 Tunneling Protocol (L2TP)
Multiple master browser support on ICA
Supports Citrix load balancing on ICA
SNMP support allows configuration of terminal settings, reporting of terminal information and sending traps
DHCP support for automatic firmware upgrades
Wake on LAN
PXE
I/O ports and connectors Four USB 1.1 ports, 1 serial, 1 parallel, RJ-45, 1 optional PCI
Resident Operating System Microsoft Windows CE .NET v4.20 with Internet Explorer 6.0
Server OS Compatibility/
Support		 Microsoft Windows NT Server 4.0, Windows NT Server 4.0 Terminal Services, Windows 2000 Server, Windows 2000 Server Terminal Services, Windows 2000 Advance Server, Windows 2000 Advance Server Terminal Services, and Citrix MetaFrame (thin-client/server solution, built for Microsoft Windows NT 4.0, Windows 2000 Server, and Windows 2000 Advanced Server Terminal Services)
Software Included Microsoft Windows CE .NET v4.20 preinstalled
Microsoft Internet Explorer 6.0 preinstalled
Microsoft Windows Media Player 9.0 for CE .NET preinstalled
Altiris Deployment Solution (client agent) preinstalled. Altiris Deployment Solution (management console) available as free download from Altiris at: http://www.altiris.com/hptc
JetCET Print Professional v3.01 preinstalled
Microsoft Windows Messenger v4.0 for CE
Terminal Emulation Software
Languages English
Dimensions H x W x D (approximate) Without stand 2.2 x 8.2 x 7.8 in (55 x 205 x 195 mm)
With stand 9.2 x 4 x 7.8 in (230 x 100 x 195 mm)
With optional PCI
Expansion Module
nd without stand		 3.2 x 8.2 x 8.28 in (80 x 205 x 207 mm)
With optional PCI
Expansion Module
and stand		 9.2 x 4.2 x 8.28 in (230 x 105 x 207 mm)
Weight (approximate) With stand 3.07 lb (1.39 kg)
With optional PCI Expansion Module and stand 3.29 lb (1.49 kg)
Environmental Temperature range on 32° to 104° F (0° to 40° C)
Temperature range off -40° to 140° F (-40° to 60° C)
Humidity 20% to 80% condensing/10% to 95% non-condensing
Power Worldwide auto-sensing 100-240 VAC, 50-60 Hz energy-saving automatic power-down
Regulatory Compliance Ergonomics German ZH1/618; EN29241-3, approved
Safety UL 1950, CSA 950; TÜV-GS (EN60 950) approved
RF Interference FCC Class B; CE Mark; EN55022B; VCCI
Warranty Three-year limited warranty
NOTE: Certain restrictions apply. Consult the HP Customer Support Center for details.
Emulations and Terminal IDs Supported Emulation
 Terminal ID
ADDS A2

AIXTerm

ANSI BBS

AT 386

DG 410/412

HP 700-92/96
 70092, 70094, 70096, 2392A, 2622A
HZ1500

IBM3151
 Mod11, Mod31
IBM3270
 3278-2 (24x80), 3278-3 (32x80), 3278-4 (43x80), 3278-5 (27x132),
3278-2-E (24x80), 3278-3-E (32x80), 3278-4-E (43x80), 3278-5-E (27x132), 3279-2 (24x80), 3279-3 (32x80), 3279-4 (43x80), 3279-5 (27x132), 3287-1
IBM5250
 5291-1, 5292-2, 5251-11, 3179-2, 3196-A1, 3180-2, 3477-FC (27x132), 3477-FG (24x80), 3486-BA, 3487-HA, 3487-HC, 3812-1
SCO Console

TA6530

TVI910

TVI920

TVI925

TVI950

TVI955

VT52
 VT100, VT101, VT102, VT125, VT131, VT132, M2200, VT220, VT240, VT320, VT340, VT420, VT510, VT520, VT525
VT100
 VT100, VT101, VT102, VT125, VT131, VT132, M2200, VT220, VT240, VT320, VT340, VT420, VT510, VT520, VT525
VT500 7-bit
 VT100, VT101, VT102, VT125, VT131, VT132, M2200, VT220, VT240, VT320, VT340, VT420, VT510, VT520, VT525
VT500 8-bit
 VT100, VT101, VT102, VT125, VT131, VT132, M2200, VT220, VT240, VT320, VT340, VT420, VT510, VT520, VT525
VT PCTerm

Wyse PCTerm

WY50

WY50+

WY60

©Copyright 2005 Hewlett-Packard Development Company, L.P.

Microsoft, Windows, and Windows NT are trademarks and/or registered trademarks of Microsoft Corporation in the United States and other countries.

The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The warranties for HP products and services are set forth in the express limited warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

   DA-11746 - Worldwide - Version 16 - December 8, 2005
