MCX SMCX



MCX Interface Dimensions

Crimp Plugs and Receptacles

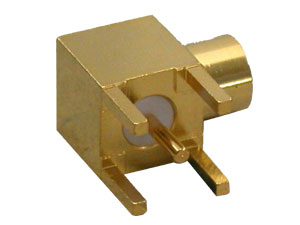

PCB Mounted Receptacles

SMCX Plugs and Receptacles



Features

Electrical Data
Impedance	50 ohms
Frequency range	0 to 6 GHz
Working voltage	RG178,196=250Vrms at sea level max. RG174,188,316=335Vrms at level max.
Insulation resistance	1000 Megohms min.
Dielectric withstanding voltage	RG178,196=750 Volts rms min. RG174,188,316=1000 Volts rms min.
Contact resistance	Center contact:5.0 milliohms max. Outer contact :1.0 milliohms max.
VSWR	Straight connector:RG178,196=1.07+0.06F(F in GHz) RG174,188,316=1.07+0.04F(F in GHz) R/A connector : RG178,196=1.17+0.06F(F in GHz) RG174,188,316=1.13+0.04F(F in GHz)
Mechanical Data
Engagement force	5.6 lbs max.
Disengagement force	1.8 lbs ~4.5 lbs
Connector durability	500 matings.
Cable retention force	RG 178 = 7.3 lbs min. RG 316 = 12.1 lbs min.
