3BR

Product type
  • Burgess Sealed Standard Micro switch
Typical markets
  • industrial equipment & automation
  • material handling
  • transportation
  • distribution
Typical applications
  • industrial automations
  • forklifts
  • specialist vehicles
  • international catalog distributors
Dimensions
  • 53.1 x 20.6 x 30.8 mm
Characteristics
  • choice of IP54 or IP67 sealed versions
  • precise movements and exceptional repeat accuracy
  • flying lead version available
  • long overtravel
Rating
  • 250 VAC, 10 A max.
Actuators
  • plunger
Approvals/Quality
  • UL
  • CSA


For Product Inquiries

Downloads
Printer friendly version
ROHS_overview_en
ROHS_overview_de
Catalog

For further technical information, please contact our sales representative in your region.


Distribution
B2B @ catalog distribution
Your sales & distribution support
Stock availability check

Dimensions

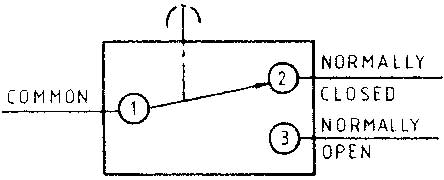

Circuits

Performance

Preferred range

Partnumber Terminal Actuator Electrical rating @
ENEC UL/CSA
3BR/103 screw plunger VAC A 250 VAC 5 A
3BR/510 screw plunger VAC A 250 VAC 5 A
