3. Planing

3.2 Four-sided moulders
3.2.2 Finish planing

VariPlan planerhead
Planing		 Planing
Design

Steel or Aluminium planerhead with resharpenable HS or HW reversible resharpenable knives positioned by form-locking knife clamping system.

Technical information

The VariPlan clamping system clamps new and resharpened knives in position automatically to a constant cutting circle.
As the clamping wedge is positioned behind the cutting edge the wedge is protected from dirt. Reduced noise level from the closed design.

Chip removal

Softwood: up to 10,0 mm. Hardwood: up to 8,0 mm.

No. of wings

2 to 4. 1,0 mm resharpening area with 2 cutting edges per sharpening cycle.

Cutting material

HS, HW

RPM

D = 100 mm, nmax. = 12.000 min-1
D = 125 mm, nmax. = 10.000 min-1
D = 140 mm, nmax. = 9.000 min-1

Note
– For fine finish planing, cutterheads can be supplied with a reduced distance between the chip breaker and cutting edge for a chip removal of up to 0,8 mm.

– The VariPlan clamping system clamps new and resharpened knives in position automatically to a constant cutting circle.

– Depending on the machine, the knives can be inserted axially or radially allowing removal of the knives on the machine.

Planing

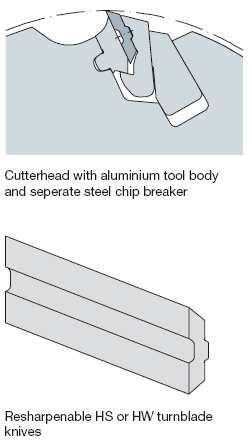

Aluminum cutterhead with separate steel chip breaker.		 Planing

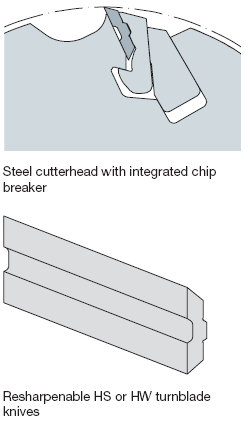

Steel cutterhead with integrated chip breaker.
Planing
Open the clamping system.		 Planing
Radial or axial knife removal possible.
Planing Close the clamping system. Knives clamped by form-fitting design assisted by centrifugal force.
Planing

VariPlan planerhead

Planing


Economic and ideal for high chip removal by solid resharpenable, reversible HS or HW knives. Constant diameter after resharpening axial or radial knife removal/ replacement possible on the machine.

Tool body of aluminium

Planing WW 240-2-05 *
Class. D
mm		 SB
mm		 ND
mm		 BO
mm		 BO max
mm		 Z n max
min-1		 ID Nr.
HS		   ID Nr.
HW
* 125 210 216 40 45 2 10000 030367   030368
* 125 230 236 40 45 2 10000 030362 • 030369 •
* 125 210 216 40 45 4 10000 030370   030371
* 125 230 236 40 45 4 10000 030372 • 030373 •
* 125 240 246 40 45 4 10000 030374 • 030375 +


Spare knives
BEZ QAL ABM VE STCK ID Nr.
VariPlan knives-Set HS B210; 2 part 2 610515 •
VariPlan knives-Set HW B210; 2 part 2 610715 •
VariPlan knives-Set HS B220; 2 part 2 610516 •
VariPlan knives-Set HW B220; 2 part 2 610716 •
VariPlan knives-Set HS B240; 2 part 2 610518 •
VariPlan knives-Set HS B240; 2 part 2 610718 •
Further dimensions and dimensions in inches available on request

Planing

VariPlan planerhead

Planing


Economic and ideal for high chip removal by solid resharpenable, reversible HS or HW knives. Constant diameter after resharpening axial or radial knife removal/ replacement possible on the machine.

Tool body of steel.

Planing WW 240-2-04 *
Class. D
mm		 SB
mm		 ND
mm		 BO
mm		 BO max
mm		 Z n max
min-1		 ID Nr.
HS		   ID Nr.
HW
* 125 130 136 40 45 2 10000 030249 • 030250 •
* 125 150 156 40 45 2 10000 030251   030252
* 125 170 176 40 45 2 10000 030298   030299
* 125 180 186 40 45 2 10000 030253 • 030254 +
* 125 190 196 40 45 2 10000 030255 • 030256 +
* 125 60 66 40 45 4 10000 030261   030262
* 125 80 86 40 45 4 10000 030263   030264
* 125 100 106 40 45 4 10000 030265   030266
* 125 120 126 40 45 4 10000 030267   030268
* 125 130 136 40 45 4 10000 030240 • 030269 •
* 125 150 156 40 45 4 10000 030270 • 030271 +
* 125 170 176 40 45 4 10000 030140 • 030141 •
* 125 180 186 40 45 4 10000 030241   030272
* 140 130 130 50 60 4 9000 030282   030283


Spare knives
Class. BEZ QAL ABM VE STCK ID Nr.
  VariPlan knives-Set HS B60; 2 part 2 610501 +
  VariPlan knives-Set HW B60; 2 part 2 610701 •
  VariPlan knives-Set HS B80; 2 part 2 610502 +
  VariPlan knives-Set HW B80; 2 part 2 610702 •
  VariPlan knives-Set HS B100; 2 part 2 610504 •
  VariPlan knives-Set HW B100; 2 part 2 610704 •
  VariPlan knives-Set HS B120; 2 part 2 610505 +
  VariPlan knives-Set HW B120; 2 part 2 610705 +
  VariPlan knives-Set HS B130; 2 part 2 610506 +
  VariPlan knives-Set HW B130; 2 part 2 610706 +
  VariPlan knives-Set HS B150; 2 part 2 610509 •
  VariPlan knives-Set HW B150; 2 part 2 610709 •
  VariPlan knives-Set HS B170; 2 part 2 610511 •
  VariPlan knives-Set HW B170; 2 part 2 610711 •
  VariPlan knives-Set HS B180; 2 part 2 610512 •
  VariPlan knives-Set HW B180; 2 part 2 610712 •
  VariPlan knives-Set HS B190; 2 part 2 610514 •
  VariPlan knives-Set HW B190; 2 part 2 610714 •
Further dimensions and dimensions in inches available on request

3. Planing

3.2 Four-sided moulders
3.2.3 Combination Tools

Planing

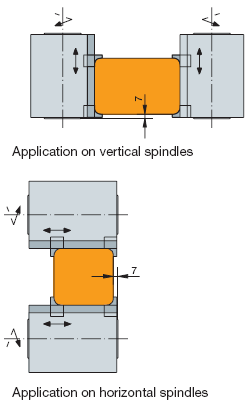

Multi-purpose planerhead, VariPlan/ProFix for jointing and profiling

Planing


Ideal for four-sided planing and at the same time shaping on the edges e.g. bevel, radius. Resharpenable tooling system with constant diameter and constant profile. Fast knife change of planing and profile knives in axial direction.

Tool body of steel with 2 HS-planer knives and 2 seatings for ProFix-profile knives.

Planing WW 240-2-06 *
Class. D
mm		 SB
mm		 ND
mm		 BO
mm		 BO max
mm		 n max
min-1		 ID Nr.
* 125 130 136 40 45 9000 031700 •
* 125 180 186 40 45 9000 031701 •
* 125 230 236 40 45 9000 031702 •
* 140 130 130 50 60 8000 031703
* 140 180 180 50 60 8000 031704
* 140 230 230 50 60 8000 031705


Spare knives
BEZ QAL ABM VE STCK ID Nr.
VariPlan knives-Set HS B130; 2 part 2 610506 •
VariPlan knives-Set HW B130; 2 part 2 610706 •
VariPlan knives-Set HS B230; 2 part 2 610516 •
VariPlan knives-Set HW B230; 2 part 2 610716 •
VariPlan knives-Set HS B180; 2 part 2 610512 •
VariPlan knives-Set HW B180; 2 part 2 610712 •

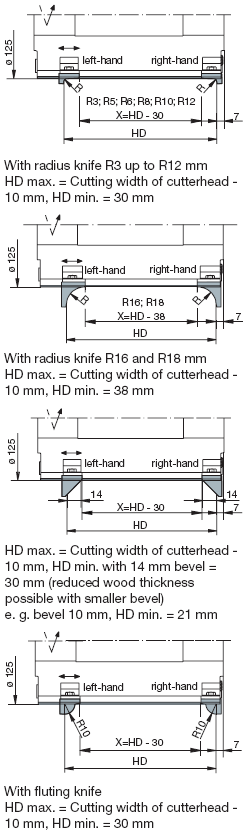

Spare knives with profile
BEZ QAL ABM R
mm		 ID Nr.
ProFix knife PF20;
R3; left-hand		 HS-B PG026; SB20 3 012031 •
ProFix knife PF20;
R3; right-hand		 HS-B PG025; SB20 3 012032 •
ProFix knife PF20;
R4; left-hand		 HS-B PG026; SB20 4 012033 •
ProFix knife PF20;
R4; right-hand		 HS-B PG025; SB20 4 012034 •
ProFix knife PF20;
R6; left-hand		 HS-B PG026; SB20 6 012035 •
ProFix knife PF20;
R6; right-hand		 HS-B PG025; SB20 6 012036 •
ProFix knife PF20;
R8; left-hand		 HS-B PG026; SB20 8 012037 •
ProFix knife PF20;
R8; right-hand		 HS-B PG025; SB20 8 012038 •
ProFix knife PF20;
R10; left-hand		 HS-B PG026; SB20 10 012039 •
ProFix knife PF20;
R10; right-hand		 HS-B PG025; SB20 10 012040 •
ProFix knife PF20;
R12; left-hand		 HS-B PG026; SB20 12 012041 •
ProFix knife PF20;
R12; right-hand		 HS-B PG025; SB20 12 012042 •
ProFix knife PF20;
R16; left-hand		 HS-B PG026; SB24 16 012043
ProFix knife PF20;
R16; right-hand		 HS-B PG025; SB24 16 012044
Planing

Multi-purpose planerhead, VariPlan/ProFix for jointing and profiling

Planing


Planing Spare knives with profile
BEZ QAL ABM R
mm		 Bevel ° ID Nr.
ProFix knife PF20;
R18; left-hand		 HS-B PG026; SB24 18   012045
ProFix knife PF20;
R18; right-hand		 HS-B PG026; SB24 18   012046
ProFix knife PF20;
14x45°; left-hand		 HS-B PG026; SB20   14x45° 012047 •
ProFix knife PF20;
14x45°; right-hand		 HS-B PG026; SB20   14x45° 012048 •
ProFix fluting knife PF20;
R10; left-hand		 HS-B PG026; SB20 10   012049
ProFix fluting knife PF20;
R10; right-hand		 HS-B PG026; SB20 10   012050
ProFix knife PF20;
R3; left-hand		 HW-B PG026; SB20 3   012051 •
ProFix knife PF20;
R3; right-hand		 HW-B PG026; SB20 3   012052 •
ProFix knife PF20;
R4; left-hand		 HW-B SB20 4   012053 •
ProFix knife PF20;
R4; right-hand		 HW-B SB20 4   012054 •
ProFix knife PF20;
R6; left-hand		 HW-B SB20 6   012055 •
ProFix knife PF20;
R6; right-hand		 HW-B SB20 6   012056 •
ProFix knife PF20;
R8; left-hand		 HW-B SB20 8   012057 •
ProFix knife PF20;
R8; right-hand		 HW-B SB20 8   012058 •
ProFix knife PF20;
R10; left-hand		 HW-B SB20 10   012059 •
ProFix knife PF20;
R10; right-hand		 HW-B SB20 10   012060 •
ProFix knife PF20;
R12; left-hand		 HW-B SB20 12   012061 •
ProFix knife PF20;
R12; right-hand		 HW-B SB20 12   012062 •
ProFix knife PF20;
R16; left-hand		 HW-B SB24 16   012063
ProFix knife PF20;
R16; right-hand		 HW-B SB24 16   012064
ProFix knife PF20;
R18; left-hand		 HW-B SB24 18   012065
ProFix knife PF20;
R18; right-hand		 HW-B SB24 18   012066
ProFix bevelling knife PF20;
14x45°; left-hand		 HW-B SB20   14x45° 012067 •
ProFix bevelling knife PF20;
14x45°; right-hand		 HW-B SB20   14x45° 012068 •
ProFix knife PF20;
R20; left-hand		 HW-B SB20 10   012069
ProFix knife PF20;
R20; right-hand		 HW-B SB20 10   012070


•  available ex stock
+ available at short notice
