II 8-robo Waldown Pty Ltd _

PI N : c0.34

PRECISION DRILLING MACtliNES . . · ·

1

SUPER SENSITIVE HIGH SPEED DRILLING MACHINE

Brobo Waldown Pty. ltd. STATE OFFICES Your Brobo Waldown Distributor is -

138 Argus Street VIC., TASOlD.. W.A. & N.T.

Cheltenham, Vic., Australia 3192 Brobo Waidown Pyl , Lid.

138 Ar us Street.

Chellen am,Vic.AustraUa 3192

Phone No: (03)583 7485 P.0. Box 222.Chell.enham 3192

Fax No:(03) 583 5914

Phone No.:(03) 563 7485

fax No(03) 583 59 14

OPERATING MANUAL FOR

BROBO WALDOWN SUPER SENSITIVE HIGH SPEED DRILLING MACHINES

CONTENT PAGE

•

1. WARRANTY CERTIFICATE

2. SPECIFICATION/CAPACITY 1

3. INSTALLATION - MECHANICAL 1

4. INSTALLATION- ELECTRICAL 2

5. PREPARATION : FOR OPERATION 2

6. MAINTENANCE 2

7. SAFETY INSTRUCTIONS 4

8. ELECTRICAL CIRCUIT ASSEMBLY- SINGLE PHASE 6

9. ELECTRICAL CIRCUIT ASSEMBLY - THREE PHASE 7

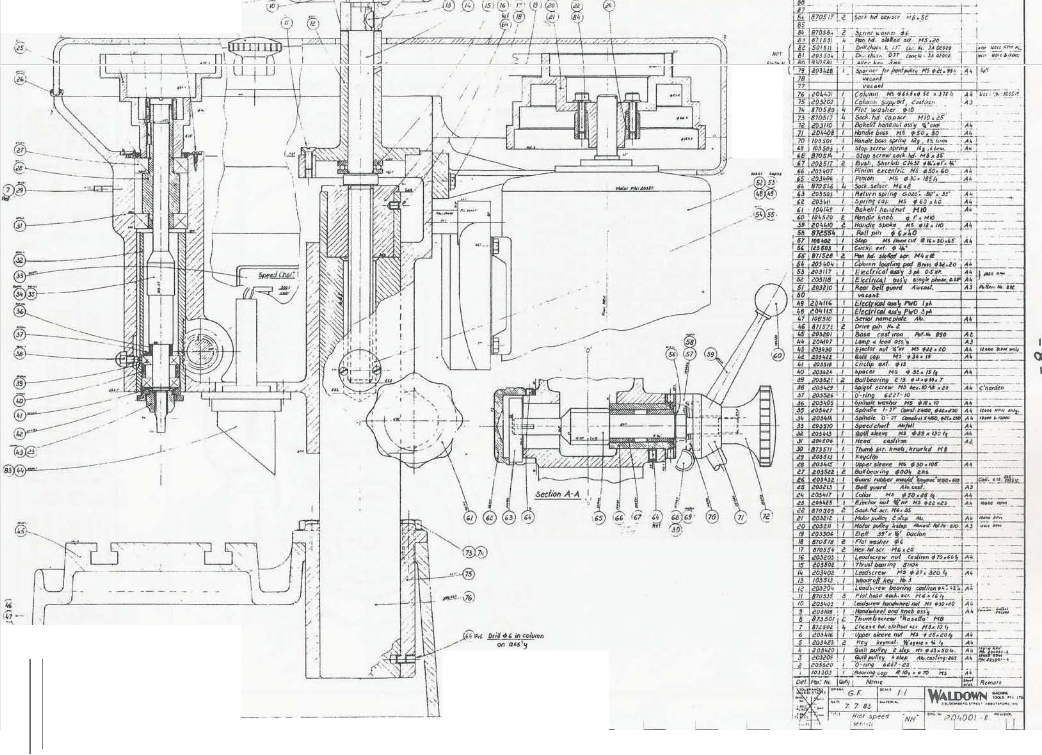

10. ASSEMBLY DRAWING AND PART LIST 8

1

2) SPECIFICATION/CAPACITY

Drilling Capacity: (diameter) 6 mm maximum

Spindle nose: No. '0' or No. '1' JACOB Tapper

(according to specifications)

Speed Range: Stroke - 67 mm •

(a)4 step pulley set

(b) 2 step pulley set

3000, 6000, 9000, 12000 RPM

15000, 18000 RPM

Motor: 0.37 Kw, 415V, 2850 RPM, 3 Ph, 50 Hz

OR

0.37 Kw, 220V, 2850 RPM, 1 Ph, 50 Hz

Base Machine Area: 150 x 150 with 10 mm T-Slots

Max. Distance Spindle

to base: 200 mm

Throat depth: 124 mm

Column Diameter: 063.5 Nom.

Weight Unpacked:

Weight Packed:

56.0 Kg.

66.0 Kg.

3) INSTALLATION - MECHANICAL

This Bench type of Drilling Machine is not absolutely necessary to fasten to the bench, regarding the size of drill and weight of machine, however, it is

recommended to do so. The provided holes relation 'See fig. below'

.320

/ - -( 7\.

"""'

- -·- 1-- -t -

J 1\. '"'"'.L

. '

. I ./

...... 2 hole!> ¢ II

2

4) INSTALLATION - ELECTRICAL

·ca) Single phase Drilling Machine - no electrical installation required, plug and lead supplied.

You only need to plug into 240V, 50Hz main supply directly.

DO NOT use extension leads.

(b) Three phase Drilling Machine should fit with four core lead and plug direct to the switch. Refer Electrical Circuit drawing page 4.

Check spindle rotation direction and change

phases if required. The right direction is clockwise looking down on top of motor pulley.

5) PREPARATION FOR OPERATION

Clean off machine all protective coating material by using solvent. The solvent should be non-flammable and toxic free.

6) MAINTENANCE

(a} LUBRICATION:

Remove Lifting Handwheel and Guard. Bearings are grease packed and should not require further

lubrication for many months. However, when lubrication

is required, a drop or two of oil on the Quill Spindle

will lubricate the quill bearings as well as the spindle

Do not over oil.

Occassionally oil the vertical bearing of the lifting leadscrew. An oil hole is provided in the bearing stalk.

A smear of oil on the column now and then keeps it working freely and free from rust.

(b) ADJUSTMENTS:

(1)To adjust the Torison Loading on the quill return spring for sensitive 'Feel', Undo the setscrew in the spring cap on the left hand side of the head, with the allen key provided, and wind the cap clockwise or anticlockwise to slacken or tighten the spring respectively.

(2) The rack and pinion may be adjusted to eliminate backlash to prevent quill drop on drill breakthrough a vital factor in small hole drilling.

The pinion bearings are mounted in a eccentric

3

6) (b)ADJUSTMENTS: (cont)

Tommy bar holes are provided round the sleeve flange to facilitate the above adjustment.

(c) STOP ADJUSTMENT (DEPTH)

By simply undoing the bakelite knob on the pinion handle boss, a few turns the serrated stop may e moved into position and locked again, and the final fine adjustment made by the stop screw.

(d)HANDLE POSITION

If the handle operating position is not comfortable, the handle boss may be rotated .into a more convenient position for the drilling operation.

Undo the bakelite handout and withdraw the handle boss off the splined pinion shaft and replace in new position. Replace knob and adjust stop and lock.

(e)TO RAISE AND LOWER HEAD

Unlock clamp handnut or right hand side of column and raise or lower by handwheel.

(f)Machine Light is provided by a 12 volt transformer situated in a drill base and the globe is a 12 volt

24 W SBC.

(g)The belt is a 39" x 1/2" endless daclon No. 2 brown. (h)TO REMOVE MOTOR PULLEY ON NH DRILL

With Allen key provided, loosen the two screws on top of motor pulley approximately two turns each, then with light hammer firmly tap first screw, then the other until the other tapered ring under the pull has been driven off it's tapered seat, the motor pull will then lift off the spindle.

(i)TO REPLACE A MOTOR PULLEY

With tapered ring and screws loosely in position in pulley, place pulley on motor spindle in line {line up with straight edge) with front pulley. Tighten cap leadscrew first one, then the other evenly until they are tight making sure the pulley is running through.

-4-

6.) MAINTENANCE cont.,

0) QUILL PULLEYS

To remove and replace the quill pulleys using the spanner provided, proceed as follows:-

Remove the larger (4 step) pulley by holding it or the belt, while loosening and removing the pulley retaining nut. Then lift the pulley vertically off the keyed shaft.

Remove the small (2 step) pulley by holding the chuck with the cnuck key in place with your left hand, while loosening and removing the pulley retaining nut. Then lift the pulley vertically off the keyed shaft.

Re-install the pulleys in a similar manner.

7.) SAFETY INSTRUCTIONS

PLEASE ENSURE YOU READ THIS INFORMATION PRIOR TO USING THE MACHINE!

The noise level of the idling drilling machine has been measured to be below 85 dB (A). This complies with the Australian Occupational Health and Safety (Noise) Regulations 1992. Please note that higher peak noise levels may be encountered due to variables such as drill make/type/condition and sizeJtype of material being drilled, as well as other intermittent noise sources such as components being placed or dropped onto the work table or floor. Under these circumstances management should make available to the operator(s) the appropriate hearing protection equipment as prescribed under the above mentioned act.

1. Only TRAINED OPERATORS should be permitted to operate this machine. Before the machine is used, carefully read the "Machine Operating Manual", especially the "Safety Instructions". Supervision must ensure both the operator and themselves understand the machine's correct method of operating before it is used by the operator.

1.1 HIGH VOLTAGE POWER -415/240 VOLTS

The power supply to this machine is of a high level and unauthorised interference and or inadequate maintenance could result in a situation that could put the operator at risk. A qualified electricalengineer should be assigned to maintain/repair the system.

2. Always wear eye protection when attending and operating drilling machines.

3. Do not operate this machine unless the belt guard is correctly positioned.

4. Do not touch drill bits or rotating spindle, and d o not place hands and arms into or near to the drill when the machine is running.

5. Fasten the work piece to the drill table, or use a machine vice.

6. Do not wear loose clothing, long sleeves, gloves, jewellery or any other item which may be caught, confine long hair in an appropriate hair net or cap.

7. If a coolant hose fails or there is excessive water splashed onto the electrical equipment, ensure that power to the machine is isolated, before attempting to repair.

8. Disconnect the electrical power when performing maintenance work on the machine or making adjustments other than those necessary for the normal operation of the machine.

9. Keep the working area of the table clear of tools and other loose objects, and keep the floor area clear of liquid spillage and excessive swarf.

... _ --·, . -- _, _. .... ---1-.!-- .t-: 1- ..r..t- -- ...l- : 1 --- ---:--

-5-

7.) SAFETY INSTRUCTIONS cont.

11. Excess1ve continual repetitive use of a drilling machine can lead to muscle fatigue/strain.

12. Rap1d and excessive metal removal by drilling can lead to worl<pieces and drill bits becoming qu1te hot. In addition, the drill motor and qUill can become hot if the machine is used for long period, although this is qwte normal.

13. Do not use extension leads.

14. Do not extend the height of the machine past the maxlmun spindle to base distance indicated. (on page 1) as this will cause the column to extend out of the column support. This can cause damage to the mach1ne and can cause mjury to anyone in the area.

15. Ensure appropriate breathing equipment is used if drilling objects that produce toxic fumes and/or excessive dust. Also, note that some coolant solutions may cause allergic reactions to some people.

16. Ensure that the machine (whether bench or floor mounted) has adequate lighting and ventilation.

17. Ensure that all electrical leads and cables (including supply leads} are maintained in good condition, and replaced if cut, sliced or damaged in any way.

RGIPART No.

031170

O NOT SCALE

ERCIAI. STOCX SI ZES

::: -

(f) 25 2

3 4

CEPTE!> Nf> I.N.ESS Oll£11WISI: IIJTE!>

l(l.EJW«:ES Ql

D11£181QIS ARE:

IE'TRIC

To llc>ch. Ca.t•

6 M i0.1 t 0.5

0 "" t 0.2 i1.0

0 M t 0.3 t 1.5

0 M t 0.5 t 2.0

0 nn t 0.6 i 3.0

0 nn t 1.2 t 5.0

laOS STR\JC'TlJW.. STEfl. .

lVE All lllJIRS AK>

W 8Y 0.3 x >IS'

27 8 7 35 4 00 1-+F L A T W A SH ER B R A SS- g ow +- \

26 8735390 1 SOLDERLESS LUG <EYELET>- H390

25 1 041380 1 MOTOR LEAD ASSEMBLY 3PH M

24 8725650 3 LOCK WASHER ¢J 5 - INTERNAL SERATION

23 8705700 3 HEX HEAD NUT M5 - ZINC PLATED

SS OnERVI SE STATE!>

SU!FACE FIHI&I

R MYo l ue

Hot Crodo

LM No.

so 1112

25 Nil

12.5 1110

5.3 II 9

3.2 II 8

22 871531 0 I PAN HEAD SLOTTED SCREW M5 X 20 LG

2 1 872521 0 2 EYELETS ¢ 5 MM - NON INSULATED

20 8725200 4 EYELETS ¢4.2 MM - NON INSULATED

! 19 8725290 B SPADE CONNECTORS - ¢ 5 INSULATED

====== I !

i I

I

PART No.

2031 190

;,. 01..96 I1I176

.. 0.4 II S

0.2 II 4

0.1 II 3

O.OS II 2

0.925 II I

I' I

I' I

I

I

I I

I I

I

00 - PRO..ECTIQI I

AVIIIC I'RACJICE TO

DI (IK£SS NOTED )

..LAR ITY Tll.ERAIC£

( 0' 7" ' 6

CQICEHTl!ICITT

/ 0.1 nn

OE31QIIR ORAWIIC IS 7

'll.O, ll11 LENt AHl IS

&IU:Cl 10 Rroll.

PI!OOl.Cli<MS 0: lHIS

8 9 10 11 12 13 14 IS

VIIC IN A'fl HAID!i.ll

RN ARE l!£saMD TO

I9 20 21 22 23 24 26 27

Det. Port No. Oty. None Moteriol Sheet

Renork

SO 11A:.OOVll Pty . ltd.

N/A Drown M.G. Scole 1 :

>ER tQlllAV.

NOTE: ITEMS 7-25 ARE ALSO CONTAINED IN SYITCHBOX ASSEMBLY - P/N 2031 190

1 I

RAW HA.T. '· Hose In l(g.

N/A

2

Doh 20 Dec 94 Checked

BROBO WALDO.. .

I

A !PIN 2052070 WAS 1052060 <MOTOR PLATE)

I

M.G. i 13-05-97

m••d ELECTRICAL ASSEMBLY o..g No. R••lelon

STD NH DRILL - 3 PHASE 20311 70 IAI I I I
