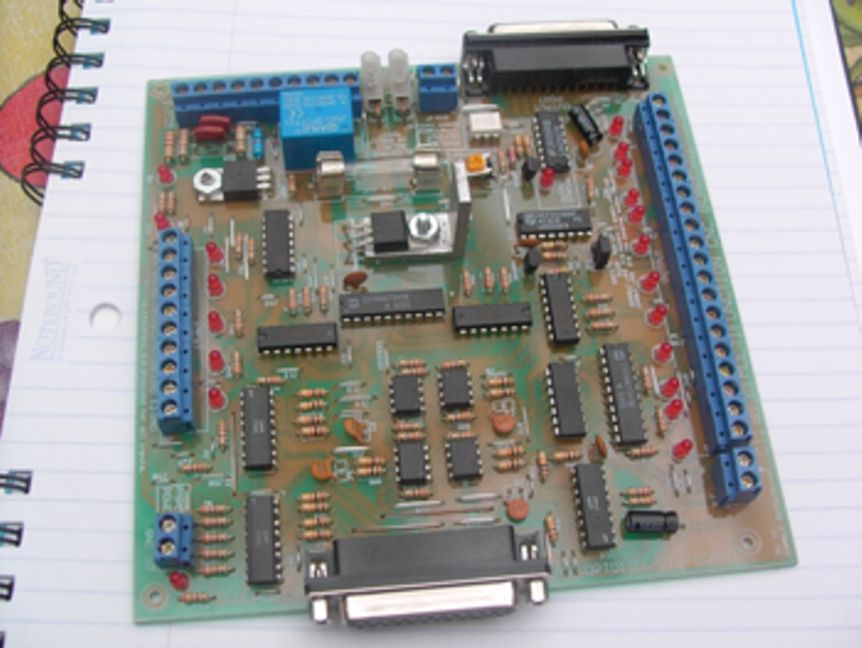

Overview

This card has been designed to provide a flexible interface and functions to your computer projects, by using the parallel port control software. This board comes as a response to many customers that have been asking for a faster way to connect devices and reduce the possibility of wiring errors.

Features

·  Fully optoisolated

· Built-in Safety Charge Pump.

· Built-in Variable Speed Control.

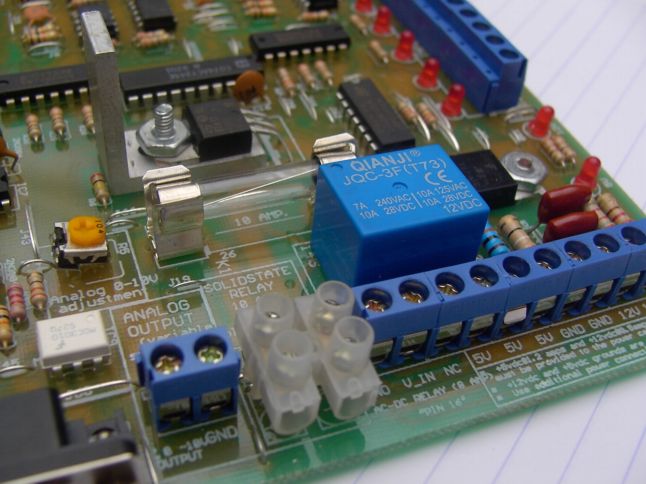

· Built-in 10 amp AC Solid State Relay.

· Built-in 8 amp Solid State Relay with NO and NC positions.

· All pins can be used in a concurrent manner.

· Buffered outputs.

· Status LEDs on all inputs and output connections.

· Has an extra DB25 female connection for output.

· Output pins 1, 2, 3, 4, 5, 6, 7, 8, 9, 14, 16, 17.

· Input pins 10, 11, 12, 13, 15.

· Input and output pins with close by ground connections.

· Easy installation of an On/Off switch. You can control the card externally.

· All TTL 5VDC signals.

· Works directly with popular CNC hardware and software.

· Screw-On connections for all terminals.

· Check out the scope images at 93.9khz on pins 2-9.

BREAKOUT BOARD COMPARISON CHART

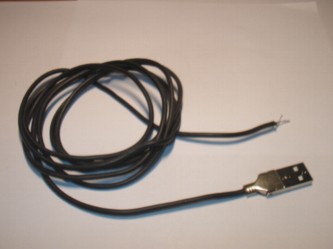

USB Cable to power the PC side of the circuit is included.  For powering the board you can use the new power supply found under accessories.

PDF Manual  Wiring Guide
