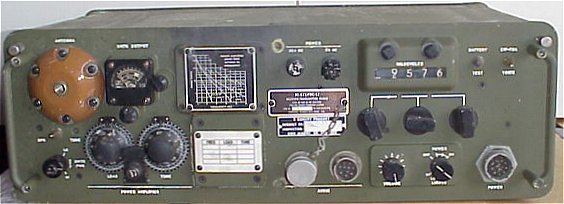

RT-671/PRC-47 HF TRANSCEIVER, 2 to 11.999 MHz USB (voice and CW+800 Hz) in 1 KHz steps. Output 100 watts PEP (Hi) or 20 W (Lo). FSK possible with accessory converter (not availaable). Transistorized except for PL-177WA tube in power amp and 5907, 7761, and 7905. Has 5-place mechanical digital tuning, P-A Load and Tune controls, and XMTR Output Meter. Designed for field or vehicular use; operates from either 24 VDC 20 amps or 115 V 400 Hz. 7x21.3x13.5, 45#. Used-reparable, $150.00
Used Checked, $295.00
MANUAL for PRC-47, partial repro, $25.00
AS-1321 LONG-WIRE ANTENNA, 3 lbs., $15.00
H-33/PT HANDSET, used-checked, $19.95
CX-8393 50 ft AC Cable, $15.00
CX-8396 "Y" CABLE for H-233 to RT, $8.00
CY-3700 ALUMINUM TRANSIT CASE, 65 lbs. $28.00
PL-177WA TUBE USED STT, $25.00
MODULES from RT-671/PRC-47 transceiver. Used not tesed:
AM-3506 AUDIO AMP has mic, sidetone, vox and compressor circuits of TX; AGC & audio for Rx. Requires 20 & 24 VDC. 4.3x4.3x2.8, 2 lbs. $15.00
AM-3507 AMPLIFIER MODULATOR contains LSB 500 KHz mech filter F500-Z5 (#526-9376) plus balanced modulator and product detector. Requires 20 VDC; 4.3x4.5x1.3, 1 lb. $35.00
Connector set $6.00
C-4311 CONTROL OSCILLATOR, 3 lbs. $25.00
CV-1377 SIGNAL DATA TRANSLATOR with tubes 5907, 7761, 7905; 5 lbs sh. $40.00
O-1032 RF OSCILLATOR contains 3 MHz crystal in oven; produces 500 and 100 KHz outputs. Requires 20 VDC; 4.3x4.5x1.3, 1 lb sh. $20.00
PP-3518 POWER SUPPLY is the internal power supply for the PRC-47 transceiver. Power input is 115 v 400 HERTZ . The transformer is also used as part of the DC to DC inverter to power the PRC-47 from 28 VDC. The components of the inverter are on the radio chassis, NOT on the power supply chassis and are NOT part of the PP3518. The PP3518 produces -110 vdc PA bias, -32 vdc driver bias, 1500 vdc, 650 vdc, + 300 vdc, +20 vdc, and 6.3 vac for the various circuits of the PRC-47. 16 lbs sh., #PP-3518, $25.00
Schematic for PP-3518 $4.00
BB-451/U SILVER-ZINC BATTERY rated 24 VDC 25 AH; uses four 4-cell blocks. Requires 40% solution potassium hydroxide (not available) as electrolytic. Approx 40 troy ounce of silver per battery. In fiberglass case designed for use with AN/PRC-41/47 radio sets. 7.5x11x4.1, 15 lbs sh. Call for availability.
MANUAL, $7.50
