Staco Variable Transformer 100/200 Series

These manually operated panel mounted Variacs are available in single and three phase models from 0.8 to 3.0 amperes. The 171, 201, 221-B and 291 units operate from 120 volt input, while the 252 unit operates from a 240 volt input. STACO’s coil tapping arrangement permits an output voltage from 0 to line voltage in either the clockwise or counterclockwise direction and from 0 to 10% above line voltage in the clockwise direction. Two and three ganged, manually operated units are available for increased single phase voltage ratings and for three phase applications.

See Important Notes at the end of the page.

Goto Selector for other sizes

100-200 Series Variable Transformer3 Ganged variable Transformer

1 & 3 Ganged 100-200 Series Variac

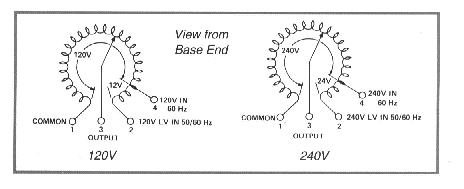

Staco 100, 200 Series Wiring - Click to Enlarge

Click Drawings to Enlarge

Staco 100, 200 Series Variac - Click to Enlarge

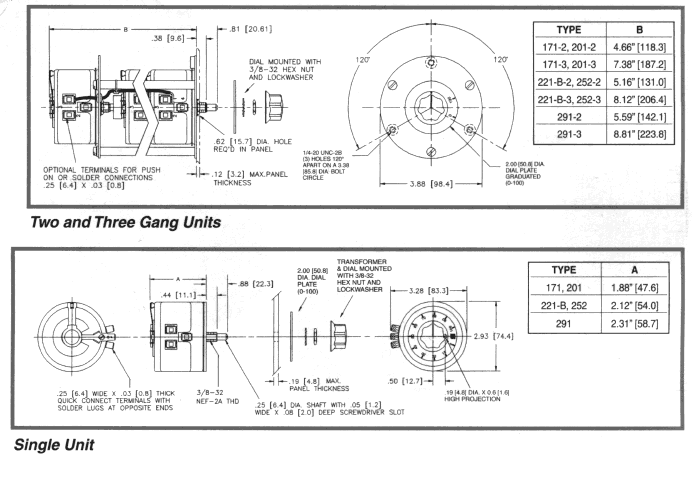

100/200 Series Variac Drawings

Portable Series Variac Drawings

* All 100/2000 Series Variable transformers can operate to 2000 Hz without derating the specifications shown below.

Single Phase 120V Input

Manually Operated P/N Motor Driven P/N

Input

Volts

 Phase Hertz *

Output

Volts

Constant

Current

Rating

Constant

Impedance

Rating

 Features
171   120 1 PH 50/60 0-120 1.75A 2.2A
60 0-132 1.75A
201   120 1 PH 50/60 0-120 2.00A 2.5A
60 0-132 2.00A
221B   120 1 PH 50/60 0-120 2.50A 3.2A
60 0-132 2.50A
3PN221B   120 1 PH 60 0-132 2.50A   Case, Cord, Plug, Switch, Light, Fuse, Receptacle
291   120 1 PH 50/60 0-120 3.00A 3.5A
60 0-132 3.00A

Single Phase 240V Input

Manually Operated P/N Motor Driven P/N

Input

Volts

 Phase Hertz *

Output

Volts

Constant

Current

Rating

Constant

Impedance

Rating

 Features
252   240 1 PH 50/60 0-240 0.8A 1.0A
0-264 0.8A
171-2   240 1 PH 50/60 0-240 1.75A 2.2A 2-Ganged Unit
60 0-264 1.75A
201-2   240 1 PH 50/60 0-240 2.00A 2.5A 2-Ganged Unit
60 0-264 2.00A
221B-2   240 1 PH 50/60 0-240 2.50A 3.2A 2-Ganged Unit
60 0-264 2.5A
291-2   240 1 PH 50/60 0-240 3.00A 3.5A 2-Ganged Unit
60 0-264 3.00A

Single Phase 480V Input

Manually Operated P/N Motor Driven P/N

Input

Volts

 Phase Hertz

Output

Volts

Constant

Current

Rating

Constant

Impedance

Rating

 Features
252-2   480 1 PH 50/60 0-480 0.8A 1.0A 2-Ganged Unit
0-528 0.8A

Three Phase 240V Input

Manually Operated P/N Motor Driven P/N

Input

Volts

 Phase Hertz *

Output

Volts

Constant

Current

Rating

Constant

Impedance

Rating

 Features
171-3   240 3 PH 60 0-240 1.75A 2.20A 3-Ganged Unit
201-3   240 3 PH 60 0-240 2.00A 2.5A 3-Ganged Unit
221B-3   240 3 PH 60 0-240 2.50A 3.2A 3-Ganged Unit
291-3   240 3 PH 50/60 0-240 3.00A 3.5A 3-Ganged Unit

Three Phase 480V Input

Manually Operated P/N Motor Driven P/N

Input

Volts

 Phase Hertz

Output

Volts

Constant

Current

Rating

Constant

Impedance

Rating

 Features
252-3   480 3 PH 50/60 0-480 0.8A 1.0A 3-Ganged Unit
60 0-528 0.8A

100/200 Series Variac Drawings
Portable Series Variac Drawings

[Transformers/staco_notes.htm]

* All 100/200 Series Variable transformers can operate to 2000 Hz without derating the specifications shown above.
