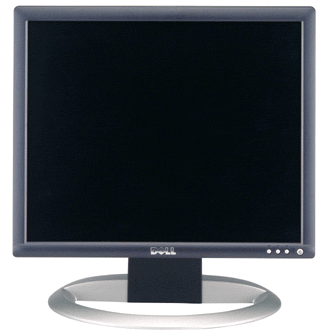

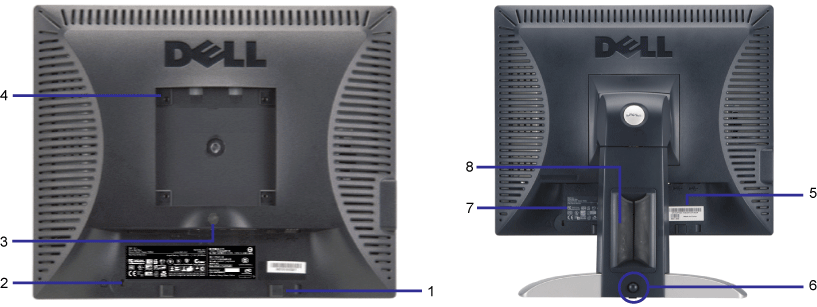

1. |
Dell
Soundbar mounting brackets — Attach the optional
Dell Soundbar. |
|
2. |
Security
lock slot — Attach a lock to secure your
monitor. |
|
3. |
Stand
removal button — Press to release the
stand. |
|
4. |
VESA mounting holes (100mm
[Behind attached base plate]) — Use to mount the
monitor. |
| 5. |
Barcode serial number
label — Refer to this label if you need to contact
Dell for technical support |
| 6. |
Lock down/release button — Push
the monitor down, press the button to unlock the
monitor, and then lift the monitor to the
desired height. |
| 7. |
Regulatory rating label —
Lists the regulatory approvals. |
| 8. |
Cable holder — Help
organize cables by placing them in the
holder. |

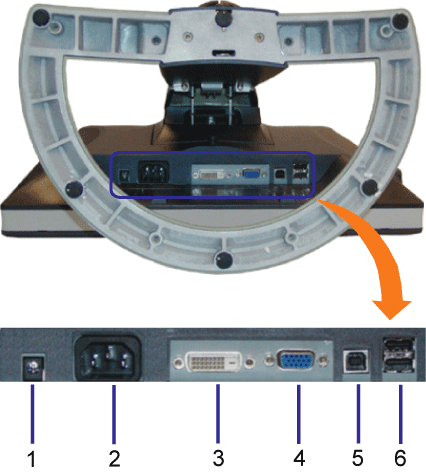

| 1. |
Dell Soundbar power connector - Connect the
power cord for the Soundbar (optional) |
| 2. |
Power connector - Connect the power
cable |
| 3. |
DVI connector - Connect your computer DVI
cable |
| 4. |
VGA connector - Connect your computer VGA
cable |
| 5. |
USB upstream connector - Connect the USB
cable that came with your monitor to the monitor
and the computer. Once this cable is connected you
can use the USB connectors on the side and bottom
of the monitor. |
| 6. |
USB connector - Connect your USB devices. You
can only use this connector after you have
connected the USB cable to the computer and USB
upstream connector on the
monitor. |
 |

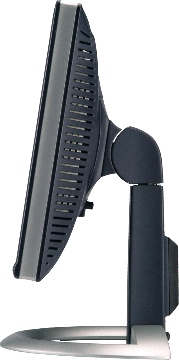

USB connectors (downstream) |
 |
|
| Left side |
|
Right side |
|
If you have VESA's DPM™ compliance display card or
software installed in your PC, the monitor can
automatically reduce its power consumption when not in
use. This is referred to as 'Power Save Mode'*. If input
from keyboard, mouse or other input devices is detected
by the computer, the monitor will automatically "wake
up". The following table shows the power consumption and
signaling of this automatic power saving feature:
| VESA Modes |
Horizontal Sync |
Vertical Sync |
Video |
Power Indicator |
Power Consumption |
| Normal operation( with Dell
Soundbar and USB active) |
Active |
Active |
Active |
Green |
56 W (maximum) |
| Normal operation |
Active |
Active |
Active |
Green |
20 W (typical) |
| Active-off mode |
Inactive |
Inactive |
Blanked |
Amber |
Less than 3 W |
| Switch off |
- |
- |
- |
Off |
Less than 1 W |
 |

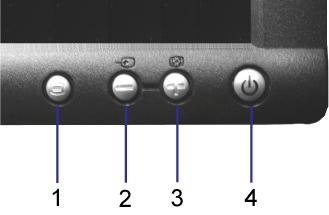

NOTE: The OSD will
only function in the 'normal operation' mode.
Otherwise one of the following messages will
appear when the “menu” or “plus” buttons are
pressed when in Active-off mode.
|
|
1. Analog Input
In Power Save Mode
Press
Any Key on Keyboard or Move
Mouse |
or
|
2. Digital Input
In
Power Save Mode
Press
Any Key on Keyboard or Move
Mouse |
Activate the computer and 'wake up' the
monitor to gain access to the OSD.
| This monitor is ENERGY
STAR®-compliant as well as TCO '99 / TCO '03
power management compatible. |
 |
* Zero power consumption in OFF mode can only be
achieved by disconnecting the main cable from the
monitor.
ENERGY STAR® is a U.S. registered mark. As an
ENERGY STAR® Partner, DELL has determined that
this product meets the ENERGY STAR® guidelines
for energy efficiency.

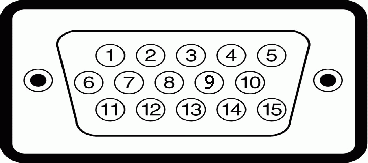

15-pin D-Sub connector:
| Pin Number |
Monitor Side of the
15-Pin Side Signal Cable |
| 1 |
Video-Red |
| 2 |
Video-Green |
| 3 |
Video-Blue |
| 4 |
GND |
| 5 |
GND |
| 6 |
GND-R |
| 7 |
GND-G |
| 8 |
GND-B |
| 9 |
DDC +5V |
| 10 |
Sync/self-test |
| 11 |
GND |
| 12 |
DDC data |
| 13 |
H-sync |
| 14 |
V-sync |
| 15 |
DDC clock |

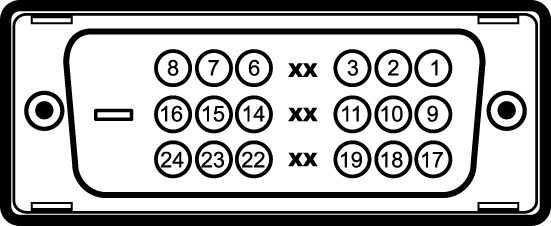

24 pin digital-only DVI connector:
Note: Pin 1 is at the top right.
| Pin |
Signal Assignment |
Pin |
Signal Assignment |
Pin |
Signal Assignment |
| 1 |
T.M.D.S. Data 2- |
9 |
T.M.D.S. Data 1- |
17 |
T.M.D.S. Data 0- |
| 2 |
T.M.D.S. Data 2+ |
10 |
T.M.D.S. Data 1+ |
18 |
T.M.D.S. Data 0+ |
| 3 |
T.M.D.S. Data 2 Shield |
11 |
T.M.D.S. Data 1 Shield |
19 |
T.M.D.S. Data 0 Shield |
| 4 |
No Pin |
12 |
No Pin |
20 |
No Pin |
| 5 |
No Pin |
13 |
No Pin |
21 |
No Pin |
| 6 |
DDC Clock |
14 |
+5V Power |
22 |
T.M.D.S. Clock Shield |
| 7 |
DDC Data |
15 |
Ground (for +5V) |
23 |
T.M.D.S. Clock + |
| 8 |
No Connect |
16 |
Hot Plug Detect |
24 |
T.M.D.S. Clock - |
| This monitor supports
High-Speed Certified USB 2.0 interface.*
|
 |
| |
Data Rate |
Power Consumption |
| High speed |
480 Mbps |
2.5W (Max., each port) |
| Full speed |
12 Mbps |
2.5W (Max., each port) |
| Low speed |
1.5 Mbps |
2.5W (Max., each
port) | |

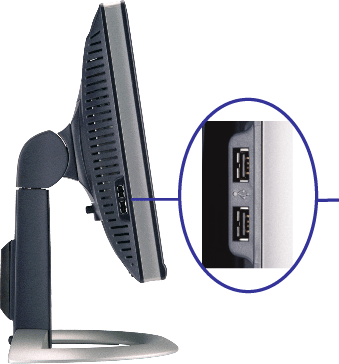

USB ports:
- 1 upstream - rear
- 4 downstream - 2 on rear; 2 on left side
|
NOTE: USB
2.0 capability requires 2.0 capable
computer |
|
NOTE: Monitor's USB
interface works ONLY when monitor is Powered ON
(or in Power Save Mode). Switching your monitor
OFF and then ON would re-enumerate its USB
interface; attached peripherals may take a few
seconds to resume normal functionality.
|
You can install the monitor in any Plug and
Play-compatible system. The monitor automatically
provides the computer system with its Extended Display
Identification Data (EDID) using Display Data Channel
(DDC) protocols so the system can configure itself and
optimize the monitor settings. If desired, the user can
select different settings, but in most cases monitor
installation is automatic.
General |
|
| Model number |
1505FP |
|
|
|
| Screen type |
Active matrix - TFT
LCD |
| Screen dimensions |
15 inches (15-inch
viewable image size) |
| Preset display area: |
|
Horizontal |
304.1 mm (11.97
inches) |
Vertical |
228.1 mm (8.98
inches) |
| Pixel pitch |
0.297 mm |
| Viewing angle |
90° (vertical) typ, 120°
(horizontal) typ
|
| Luminance output |
250 CD/m ²(typ)
|
| Contrast ratio |
400 to 1 (typ)
|
| Faceplate coating |
Antiglare with
hard-coating 3H
|
| Backlight |
CCFL (4) edgelight
system |
| Response Time |
16 ms typical |
|
|
|
|
| Horizontal scan range |
30 kHz to 61 kHz
(automatic) |
| Vertical scan range |
56 Hz to 76 Hz
(automatic) |
| Optimal preset
resolution |
1024 x 768 at 60 Hz |
| Highest preset
resolution |
1024 x 768 at 75 Hz |
| Display Mode |
Horizontal
Frequency (kHz) |
Vertical
Frequency (Hz) |
Pixel Clock
(MHz) |
Sync Polarity
(Horizontal/Vertical) |
| VESA, 720 x 400 |
31.5 |
70.0 |
28.3 |
-/+ |
| VESA, 640 x 480 |
31.5 |
60.0 |
25.2 |
-/- |
| VESA, 640 x 480 |
37.5 |
75.0 |
31.5 |
-/- |
| VESA, 800 x 600 |
37.9 |
60.3 |
49.5 |
+/+ |
| VESA, 800 x 600 |
46.9 |
75.0 |
49.5 |
+/+ |
| VESA, 1024 x 768 |
48.4 |
60.0 |
65.0 |
-/- |
| VESA, 1024 x 768 |
60.0 |
75.0 |
78.8 |
+/+ | |
|
|
|
|
| Video input signals |
Analog RGB, 0.7 Volts
+/-5%, positive polarity at 75 ohm input
impedance
Digital DVI-D TMDS, 600mV for each
differential line, positive polarity at 50 ohm
input impedance |
| Synchronization input
signals |
Separate horizontal and
vertical synchronizations, polarity-free TTL
level, SOG (Composite SYNC on green) |
| AC input voltage /
frequency / current |
100 to 240 VAC / 50 or 60
Hz + 3 Hz / 0.9A (Max.) |
| Inrush current |
120V:42A
(Max.)
240V:80A (Max.) |
|
|
|
|
| Connector type |
15-pin D-subminiature,
blue connector; DVI-D, white connector |
| Signal cable type |
Analog: Detachable,
D-sub, 15pin, shipped attached to the
monitor
Digital: Detachable, DVI-D, Solid pins,
shipped detached from the monitor |
| Dimensions (with
stand): |
|
Height (fully extended in portrait
mode) |
480.4 mm (18.913
inches) |
Height (compressed/locked in landscape
mode) |
442.35 mm (17.415
inches) |
Width |
341.6 mm (13.45
inches) |
Depth |
180.97 mm (7.12
inches) |
| Weight (monitor only) |
4.6 Kg (10.14 lb) |
| Weight (with
packaging) |
6.25 Kg (13.8
lb) |
|
|
|
|
| Temperature: |
|
Operating |
5° to 35°C (41° to
95°F) |
Nonoperating |
Storage: -20° to 60°C
(-4° to 140°F)
Shipping: -20° to 60°C(-4° to
140°F) |
| Humidity: |
|
Operating |
10% to 80%
(noncondensing) |
Nonoperating |
Storage: 5% to 90%
(noncondensing)
Shipping: 5% to
90%(noncondensing) |
| Altitude: |
|
Operating |
3,657.6m (12,000 ft)
max |
Nonoperating |
12,192 m (40,000 ft)
max |
| Thermal dissipation |
191.208 BTU/hour
(maximum)
68.2885 BTU/hour
(typical) |
| System Frequency
Response |
95 Hz to 20 kHz @ 10 dB
below avg. SPL |
| Total Power Output |
14 W continuous average
power (all speakers operating) @ 10% (THD+N), 1
kHz (FTC rated) |
Headphone Jack
Output
Power |
40 mW continuous average
power (RL = 32Ω) @ 10% (THD+N), 1 kHz |
Input Sensitivity for
Rated Output |
500 ± 50 mVrms @ 1
kHz |
| Input Impedance |
>10kΩ |
| Maximum Input Signal
Voltage |
2 Vrms |
| Controls |
Power On/Off Volume
Control |
| Input Cables |
3.0 m ± 0.1 m AWG26 black
cable attached to enclosure, with 3.5 mm lime
green stereo plug |
| Power Requirements |
DC12V, 1.5A +/-10% |
| Power Cord Length |
305 mm ± 15 mm AWG22
black cable attached to enclosure, with DC plug
(5.5 x 2.1 x 12 mm) |
| Operating Temperature
Range |
10°C to 40°C |
| Humidity,
Non-condensing |
95% RH @ 40 °C
|
 |
CAUTION: Read and follow the safety
instructions before cleaning the
monitor. |
|
CAUTION: Before cleaning the
monitor, unplug the monitor from the electrical
outlet. |
- To clean your antistatic screen, lightly dampen a
soft, clean cloth with water. If possible, use a
special screen-cleaning tissue or solution suitable
for the antistatic coating. Do not use benzene,
thinner, ammonia, abrasive cleaners, or compressed
air.
- Use a lightly-dampened, warm cloth to clean the
plastics. Avoid using detergent of any kind as some
detergents leave a milky film on the plastics.
- If you notice a white powder when you unpack your
monitor, wipe it off with a cloth. This white powder
occurs during the shipping of the monitor.
- Handle your monitor with care as
darker-colored plastics may scratch and show white
scuff marks more than lighter-colored monitor.
