PD-SATA USB/LAN

The PD-SATA USB/LAN offers both high speed USB 2.0 and LAN connection in one unit! A slim, stylish and powerful aluminum enclosure for your 3.5" SATA hard drive, designed to share and access your data on the home network. Features fanless design and passive cooling, ideal for home users and quiet working environments.

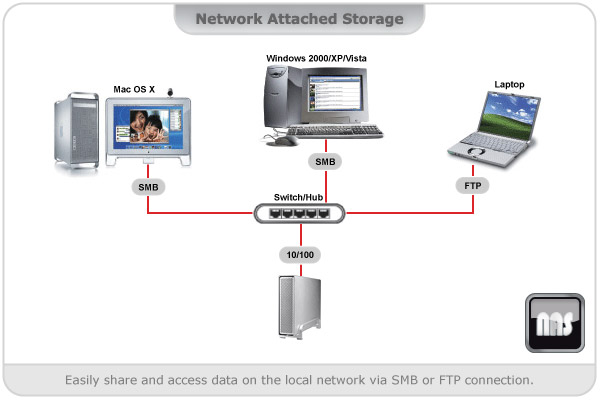

Network Attached Storage (SMB/FTP)
Multiple users can access the PD-SATA USB/LAN to share and exchange files via Ethernet connection. Set up shared folders and let users access the files via local network connection using SMB or FTP. For admins, the web interface offers useful tools such as user and share management, disk utility, plus other system and network tools to let you manage the LAN disk with ease.

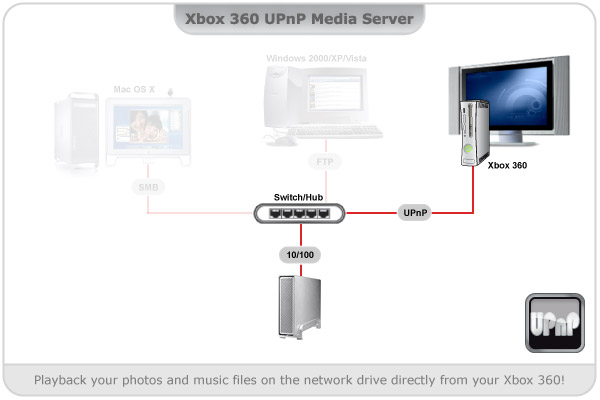

Xbox 360 Media Server (UPnP)
Store your photos and music files on the PD-SATA USB/LAN, define the directory that you would like to share and the files (MP3, WMA, JPEG) will be immediately available on the Xbox 360 to playback on the TV. Simply access your photos or music library on the TV and the UPnP server will show up automatically, making all the shared photos and music files available for access.

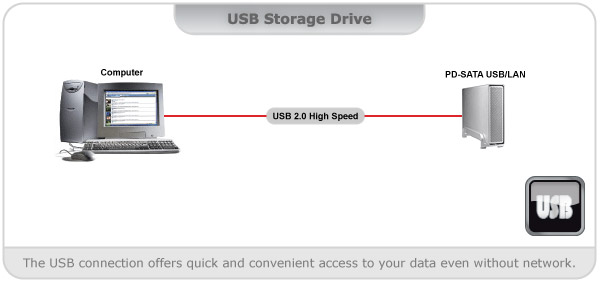

USB Hard Drive
The PD-SATA USB/LAN comes with a high speed USB 2.0 port for quick and convenient access to your data. The common USB connection comes in handy when there is no network connection available or the device is used as a simple USB storage device.

Model No.	PD-LN2U2RGS
Certifications	CE, FCC
Case Material	Aluminum with internal metal chassis for optimised heat dissipation
Application	Single 3.5" SATA-I or SATA-II hard drive (1.5Gb/s) 20GB - 1.5TB FAT32
Interface/Ports	10/100Base-TX Auto MDI/MDI-X, 1 port (RJ-45) USB 2.0 High Speed (USB1.1), 1 port (4pin)
LAN	Speed: Half-Duplex and Full-Duplex operation, 7.2MB/s throughput Protocol: TCP/IP Network File System: CIFS(SMB), FTP Maximum Sessions: Up to 16 simultaneous connections
Web Based Configuration	Network: DHCP Server, DHCP Client, Auto IP, Fixed IP, Xbox 360 media server FTP Server: Setup for Accounts, Status, Access Right Samba Server: Share Level Access, NBNS Support System Tools: Standard Settings, Formatting, SNTP, Firmware Upgrade
Environment	Operating Temperature: 5°C ~ 40°C Operating Humidity: 10%RH ~ 80%RH Storage Temperature: -20°C ~ 70°C Storage Humidity: 5%RH ~ 90%RH
System Requirements (PC)	LAN: Windows 2000/XP/Vista USB 2.0 (USB 1.1): Windows 2000/XP/Vista Your hardware device must have the correct corresponding port (eg. USB 2.0, USB 1.1 or PCI card)
System Requirements (Mac)	LAN: Mac OS 10.2 or higher (Samba/FTP) USB 2.0: Mac OS 10.2 or higher USB 1.1: Mac OS 10.1.5 or higher Your hardware device must have the correct corresponding port (eg. USB 2.0, USB 1.1 or PCI card)
Power Supply	External Power Adapter universal auto-switching (UL, cUL, CE, TUV approved) Input: AC 100-240V, 1.2A, 50-60Hz Output: DC +12V/2A, +5V/2A
Enclosure Size	22.8cm x 13.7cm x 3.5cm
Packing Accessories	PD-SATA USB/LAN enclosure USB 2.0 cable (4pin x 4pin) Ethernet cable Power adapter plus cord, screw package, manual
Carton/Packing	Retail Box Size: 32.0cm x 24.0cm x 10.5cm Carton Size: 56.5cm x 51.0cm x 35.0cm (10pcs per carton) G.W. 16.5kg
Remarks

Description	Version	Date	Size	File
High resolution JPG images	N/A	2007/12/05	1.15MB	ZIP
Manual (English)	v1.0	2008/03/16	1.69MB	PDF
Manual (German)	v1.0	2008/03/25	1.68MB	PDF
Manual (Traditional Chinese)	v1.0	2008/03/25	2.00MB	PDF
LAN disk utility for PC (English)	v1.7.2	2007/05/10	617KB	ZIP
LAN disk utility for PC (Traditional Chinese)	v1.7.2	2007/05/10	621KB	ZIP
