Abstract
Do you have an older IBM RAID controller that you can't identify? This document describes all ServeRAID controllers that are no longer sold by IBM. It is quick guide that shows photos, key features, visual identifiers, and tables listing server compatibility and feature comparisons. This archive document is a partner to the ServeRAID Quick Reference that lists all current ServeRAID controllers.
Changes in the December 26 update:
* Added withdrawn ServeRAID controllers
Contents
This document is a quick guide to the different ServeRAID adapters that IBM has produced since their introduction in mid-1996. If you have an older adapter, this document can help you identify the adapter with photos and a key features table.
| Looking for current adapters? You can find reference information for the current range of ServeRAID controllers in the ServeRAID Quick Reference that is available from: |
Table of contents:
ServeRAID SCSI Adapter
Part number: 70G8489
Year of availability: 1996
US Announcement Letter: 196-134
Features:
- RAID 0, 1, 5
- SCSI Fast/wide
- Three internal connectors, one external
Visual identifiers:
- Single external 68-pin industry-standard SCSI connector (all other ServeRAID cards use VHDCI connectors)
- Three internal 68-pin industry-standard SCSI connectors
- Connector located vertically in the center of the board (unused)
Figure 1. ServeRAID SCSI Adapter
ServeRAID II Ultra SCSI Adapter
Part number: 76H3584
Year of availability: 1997
US Announcement Letter: 197-256
Features:
- Supports both SCSI-2 and Wide Ultra SCSI modes
- RAID levels 0, 1, and 5
- 4 MB of cache
- Supports up to 45 drives
- Supports logical drive migration
- Three internal SCSI connectors, two or three external VHDCI connectors
Visual identifiers:
- Two external VHDCI (very high density connector interface) connectors
- Three internal 68-pin industry-standard SCSI connectors
- Optional cable to route channel 3 externally

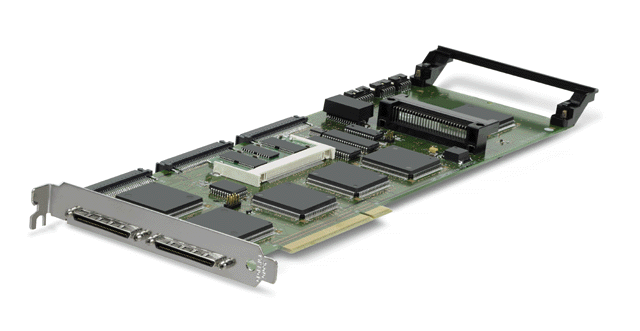

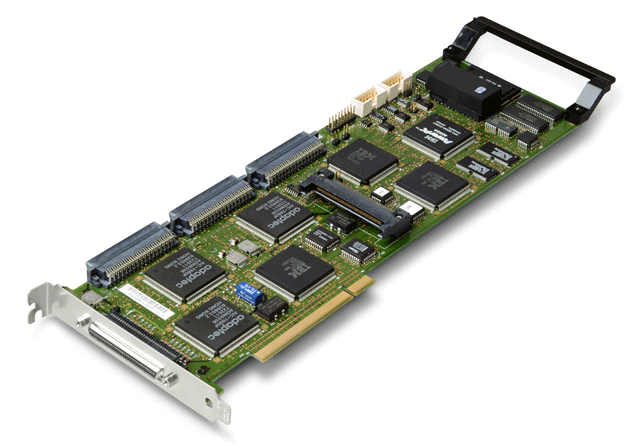

Figure 2. ServeRAID II Ultra SCSI Adapter
Optional cable (part 76H5400) routes channel 3 to an external connector:

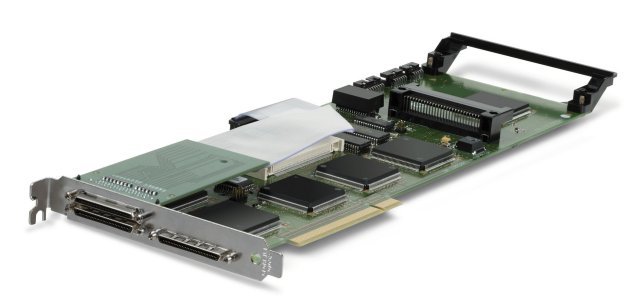

Figure 3. ServeRAID II adapter with third channel cable
ServeRAID-3L Ultra2 SCSI Adapter
ServeRAID-3L Ultra2 SCSI Adapter II
ServeRAID-3L:
- Part number: 01K7364
- Year of availability: 1998
- US Announcement Letter: 198-232
ServeRAID-3L II:
- Part number: 19K0564
- Year of availability: 2000
- US Announcement Letter: 100-101
Features:
- 32-bit PCI adapter
- Single channel adapter supports up to 15 disk drives
- Low-voltage differential SCSI (LVDS) support for up to 80 MBps and cable lengths up to 25 m
- 4 MB of standard cache
- Hot-swap PCI support
- 25 MHz RISC processor
- RAID 0, 1 and 5
Visual identifiers:
- One external VHDCI connector, labeled "LVD/SE"
- One internal 68-pin industry-standard SCSI connector
- 32-bit PCI connector (short)

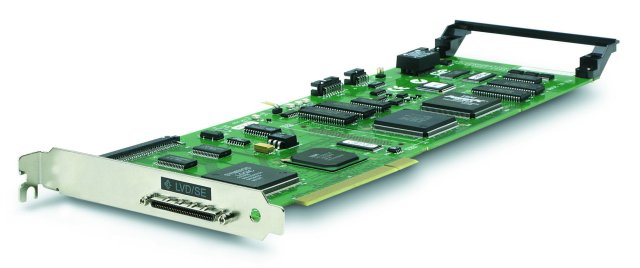

The photo below is that of the ServeRAID-3L. Note that the internal connector is not on an indentation in the circuit board.
Figure 4. ServeRAID-3L
The ServeRAID-3L was replaced by the ServeRAID-3L II (part 19K0564) in April 2000. The internal connector of the ServeRAID-3L II adapter was redesigned so that the adapter will fit in 3U servers, such as the Netfinity 4500R. This board design is the only difference. In fact, the two adapters are the same FRU, 01K7352.
ServeRAID-3H Ultra2 SCSI Adapter
Part number: 01K7207
Year of availability: 1998
US Announcement Letter: 198-232
Features:
- 64-bit PCI adapter (also supports 32-bit data path)
- Three-channel adapter supports up to 45 disk drives
- Low-voltage differential SCSI (LVDS) support for up to 80 Mbps and cable lengths up to 25 m
- 32 MB of standard cache
- Support for the new optional 32 MB battery-backup cache
- Hot-swap PCI support
- 25 MHz RISC processor
- RAID 0, 1 and 5
Visual identifiers:
- Two external VHDCI connectors, labeled "LVD/SE"
- Single internal 68-pin industry-standard SCSI connector
- Connector on the top edge of the card with EDO memory DIMM installed
- Might have an optional daughter card with a battery pack (part 28L1003) installed into the connector near the handle. This adapter looks similar to the ServeRAID-3HB.
- 64-bit PCI connector (long)
Note: The adapter also includes a cable similar to ServeRAID II option to route the internal channel 3 connector to an external VHDCI connector (not shown).

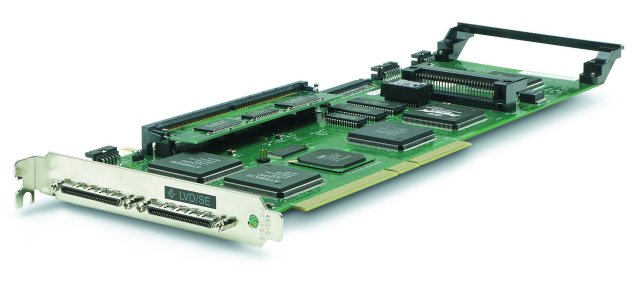

Figure 5. ServeRAID-3H
ServeRAID-3HB Ultra2 SCSI Adapter
Part number: 37L6086
Year of availability: 1999
US Announcement Letter: 199-152
Features:
- Three channels that support up to 45 disk drives
- Wide Ultra2 SCSI with up to 80 MBps data transfers and cable lengths up to 25 m
- 32 MB EDO cache memory
- Supports 64- or 32-bit PCI data paths
- RAID 0, 1, 1E, 5, 5E
- 32 MB cache
- Battery backup standard
Visual identifiers:
- Same as ServeRAID-3H adapter except battery backup module is standard

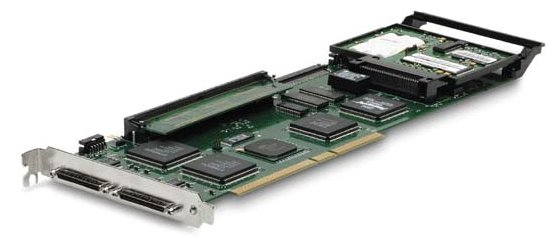

Figure 6. ServeRAID-3HB
ServeRAID-4L Ultra160 SCSI controller
Part number: 37L6091
Year of availability: 2000
US Announcement Letter: 100-099
Features:
- Single-channel controller
- Supports 64- or 32-bit PCI installations
- 16 MB ECC cache
- Supports new Ultra160 SCSI technology — 160 MBps data transfers
- Support for RAID 0, 00, 1, 1E, 1E0, 5, 50, 5E, and 10
- IBM Active PCI
- Supports clustering and failover
Visual identifiers:
- One external VHDCI connector
- One internal 68-pin industry-standard SCSI connector
- Space for two internal connectors, but only one present (same circuit board as the 4M)

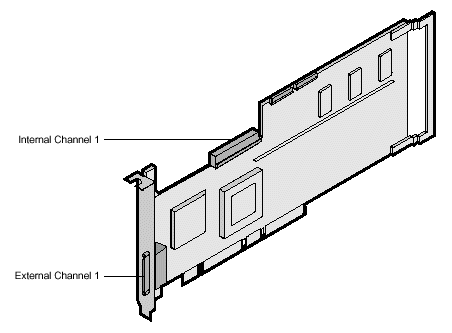

Figure 7. ServeRAID-4L
ServeRAID-4Lx Ultra160 SCSI controller
Part number: 06P5740
Year of availability: 2001
US Announcement Letter: 101-146
Features:
- Updated to 66 MHz PCI bus performance
- Supports 64- or 32-bit PCI installations
- Single-channel controller
- 16 MB ECC cache
- Supports new Ultra160 SCSI technology, 160 MBps data transfers
- Support for RAID 0, 00, 1, 1E, 1E0, 5, 50, 5E, and 10
- IBM Active PCI
- Supports clustering and failover
Visual identifiers:
- Half-length card
- Square heat sink in the middle of the card
- One external VHDCI connector
- One internal 68-pin industry-standard SCSI connector
- 64-bit PCI connector (long)

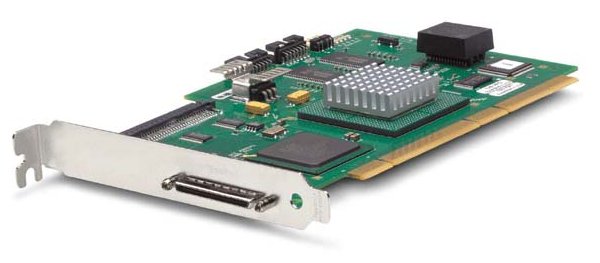

Figure 8. ServeRAID-4Lx
ServeRAID-4M Ultra160 SCSI controller
Part number: 37L6080
Year of availability: 2000
US Announcement Letter: 100-099
Features:
- Two-channel controller
- Supports 64- or 32-bit PCI installations
- 64 MB ECC cache
- Supports new Ultra160 SCSI technology, 160 MBps data transfers
- Support for RAID 0, 00, 1, 1E, 1E0, 5, 50, 5E, and 10
- IBM Active PCI
- Supports clustering and failover
Visual identifiers:
- Two external VHDCI connectors
- Two internal 68-pin industry-standard SCSI connectors
- Battery integrated into a daughter card lengthwise along card, near handle
- No heat sinks (4Mx has heat sinks)

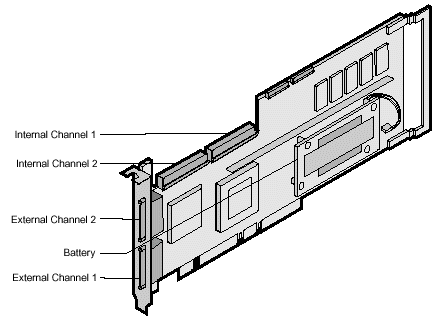

Figure 9. ServeRAID-4M
ServeRAID-4Mx Ultra160 SCSI controller
Part number: 06P5736
Year of first availability: 2001
US Announcement Letter: 101-146
Features:
- Updated to 66 MHz PCI bus performance
- Two-channel controller
- Supports 64- or 32-bit PCI installations
- 64 MB ECC cache
- Supports new Ultra160 SCSI technology, 160 MBps data transfers
- Support for RAID 0, 00, 1, 1E, 1E0, 5, 50, 5E, and 10
- IBM Active PCI
- Supports clustering and failover
Visual identifiers:
- Similar to ServeRAID-4M (check for heat sinks)
- Two external VHDCI connectors
- Two internal 68-pin industry-standard SCSI connectors
- Battery integrated into a daughter card lengthwise along card, near handle
- Heat sink on central chip and smaller chip near PCI connector

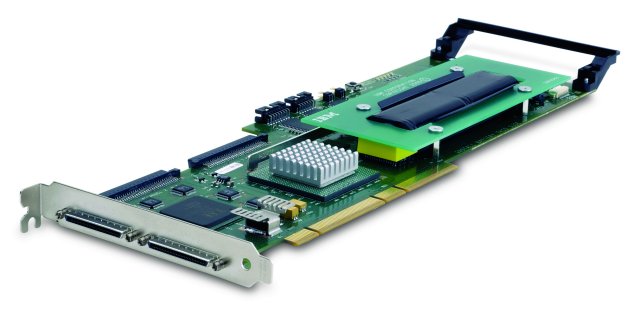

Figure 10. ServeRAID-4Mx
ServeRAID-4H Ultra160 SCSI controller
Part number: 37L6889
Year of first availability: 2000
US Announcement Letter: 100-099
Features:
- Four-channel controller
- 128 MB ECC battery-backed cache
- Removable/transferable cache for high-availability environments
- 266 MHz PowerPC 750
- Supports 64- or 32-bit PCI installations
- Supports new Ultra160 SCSI technology, 160 MBps data transfers
- Support for RAID 0, 00, 1, 1E, 1E0, 5, 50, 5E, and 10
- IBM Active PCI
- Supports clustering and failover
Visual identifiers:
- Four external VHDCI connectors
- Two internal 68-pin industry-standard SCSI connectors
- Large daughter card with battery attached to the main board

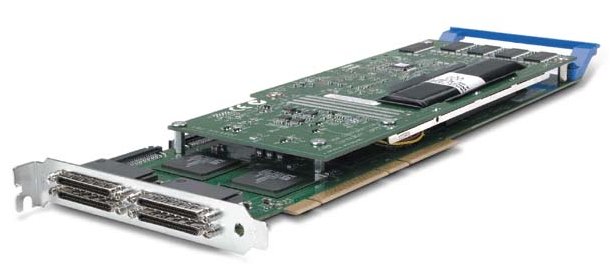

Figure 11. ServeRAID-4H
ServeRAID-5i Controller
Part number: 25P3492
Year of first availability: 2002
US Announcement Letter: 102-170
Features:
- Wide-bandwidth, high-speed 64-bit, 66 MHz PCI controller
- 128 MB of ECC write-back cache with battery backup
- Supports mixed environments of Ultra320 and Ultra160 SCSI HDDs
- RAID levels 0, 00, 1, 10, 5, 50, and IBM exclusive 1E and 1E0
- Support for up to eight logical drives composed of 16 physical drives
- Logical drive migration and auto synchronization support
- Support for stripe unit sizes of 8 KB, 16 KB, 32 KB, or 64 KB
- Up to 28 physical drives supported per controller
- Support for hot- and cold-swapping of HDDs
Visual identifiers:
- No internal or external SCSI connectors (uses the server's onboard SCSI)

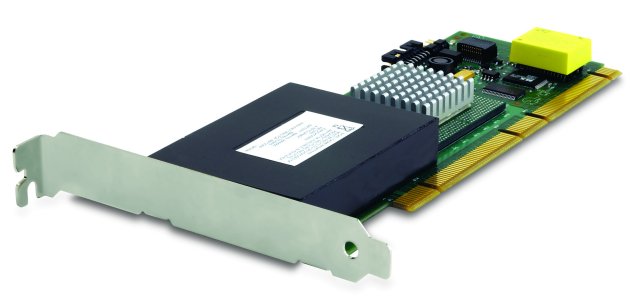

Figure 12. ServeRAID-5i
ServeRAID-6M Ultra320 SCSI controller
Part numbers:
- 128 MB cache: part 32P0033 (2003) and 39R8815 (2006)
- 256 MB cache: part 02R0988 (2003) and 39R8816 (2006)
US Announcement Letter: 103-206
Features:
- 64-bit, 133 MHz PCI-X adapter
- 128 or 256 MB ECC DDR SDRAM battery-backed cache
- Two channels
- Support for up to 28 HDDs
- Ultra320 SCSI interface; Wide bandwidth for multi-drive, concurrent, streaming data transfers
- RAID support for 0, 00, 1, 10, 1E, 1E0, 5, 50, and 5EE
- Clustering and failover support
Visual identifiers:
- Two external connectors and two internal connectors
- Adaptec name and logo printed on the board (not IBM)
- Two notches in the PCI connector, not three - indicating that it is a 3.3V adapter, not a combo 3.3V+5V adapter
- One DIMM attached to the bottom edge of the card (see photo) for the cache
- The 128 MB DIMM has five chips (as shown in the photo); the 256 DIMM has nine chips
Note: The battery shown in the photo is not a production-level battery.

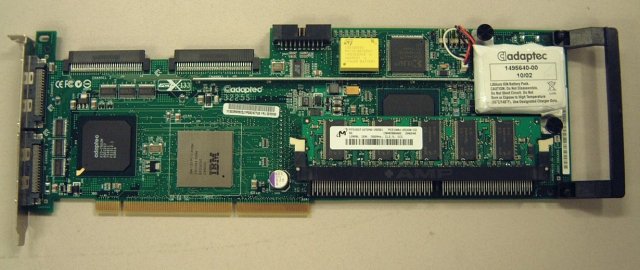

Figure 13. ServeRAID-6M
ServeRAID-6i Controller
Part number: 71P8595
Year of first availability: 2003
US Announcement Letter: 103-210
Features:
- Innovative design works with the onboard SCSI chipset of selected xSeries servers
- Wide-bandwidth, high-speed 64-bit, 133 MHz 1 PCI-X controller
- 128 MB of ECC write-back cache with battery backup with up to 48 hour battery life
- Support for mixed environments of Ultra320 and Ultra160 SCSI HDDs
- Support for RAID levels 0, 00, 1, 10, 5, 50, and IBM exclusive 1E, 5EE, and 1E0
- Support for up to 8 logical drives composed of 16 physical drives
- Logical drive migration and auto synchronization support
- Support for stripe unit sizes of 8 KB, 16 KB, 32 KB, or 64 KB
- Up to 28 physical drives supported per controller
- Support for hot- and cold-swapping of HDDs
- FlashCopy support; Application for tape backup, software application test, and image rollout
Visual identifiers:
- No internal or external SCSI connectors (uses the server's onboard SCSI)
- Two notches in the PCI connector (versus four notches in the ServeRAID-5i)
Notes:
- The 6i and 6i+ are physically identical adapters. The only difference is that the 6i+ is flashed at the factory to V7.0 firmware to support the x206 and x306. A ServeRAID-6i+ is supported in servers that support the ServeRAID-6i.
- The battery shown in the photo is not a production-level battery.

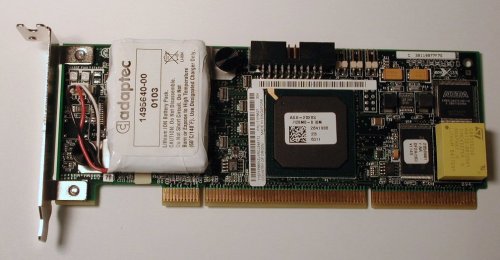

Figure 14. ServeRAID-6i
ServeRAID-6i+ Controller
Part number: 13N2190 (2004) and 39R8793 (2006)
Year of first availability
US Announcement Letter: 104-078
Features:
- Innovative design works with the onboard SCSI chipset of selected xSeries servers
- Wide-bandwidth, high-speed 64-bit, 133 MHz 1 PCI-X controller
- 128 MB of ECC write-back cache with battery backup with up to 48 hour battery life
- Support for mixed environments of Ultra320 and Ultra160 SCSI HDDs
- Support for RAID levels 0, 00, 1, 10, 5, 50, and IBM exclusive 1E, 5EE, and 1E0
- Support for up to 8 logical drives composed of 16 physical drives
- Logical drive migration and auto synchronization support
- Support for stripe unit sizes of 8 KB, 16 KB, 32 KB, or 64 KB
- Up to 28 physical drives supported per controller
- Support for hot- and cold-swapping of HDDs
- FlashCopy support; Application for tape backup, software application test, and image rollout
Visual identifiers:
- No internal or external SCSI connectors (uses the server's onboard SCSI)
- Two notches in the PCI connector (versus four notches in the ServeRAID-5i)
Notes:
- The 6i and 6i+ are physically identical adapters. The only difference is that the 6i+ is flashed at the factory to V7.0 firmware to support the x206 and x306. A ServeRAID-6i+ is supported in servers that support the ServeRAID-6i.
- The battery shown in the photo is not a production-level battery.
Figure 15. ServeRAID-6i+
ServeRAID 7t SATA RAID Controller
Part number: 71P8648 (2004) and 39R8805 (2006)
Year of first availability: 2004
US Announcement Letter: 104-075
Features:
- Four-port SATA controller for entry-level servers
- Four SATA ports and associated cabling
- 64 MB SDRAM cache
- Universal PCI design
- MD2 card design with Notch for installation in 3U server systems
- Uses Intel 80302 processor
- SMART enabled
- Support for RAID levels 0, 1, 5, 10
- Support for one logical drive per array
- Support for stripe unit sizes of 16 KB, 32 KB, or 64 KB
- Up to four physical drives supported per controller
Visual identifiers:
- Four internal Serial ATA (SATA) connectors
- No external connectors

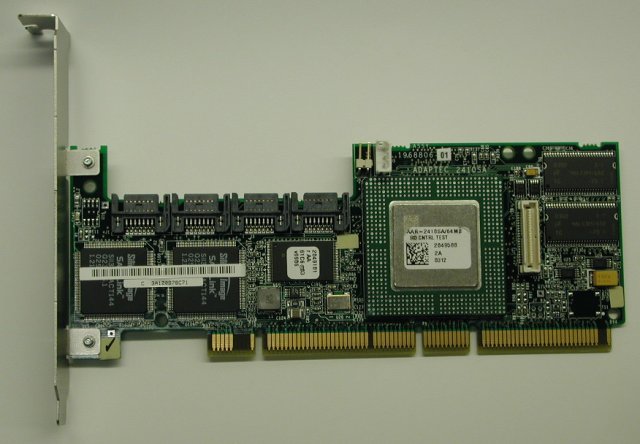

Figure 16. ServeRAID 7t
ServeRAID 7e SATA RAID Controller
Part number: None
Year of first availability: Varies by server
US Announcement Letter: Varies by server
Features:
- RAID controller integrated into specific servers providing RAID-0 and RAID-1
Visual identifier:
- No extra hardware
- Function is integrated into the SCSI controller, SATA controller, or both of specific xSeries servers and enabled with software
- See the Supported servers table for the servers with this controller built in.

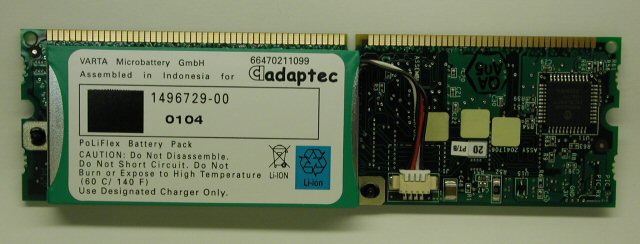

ServeRAID 7k SATA RAID Controller
Part number: 71P8642 (2004) and 39R8800 (2006)
Year of first availability: 2004
US Announcement Letter: 104-284 (announced with the x346)
Features:
- DIMM-shaped controller - installs in dedicated slot
- 256 MB DDR1 333 MHz
- RAID-0, 1, 10, 5, 50 and 5EE
- Copyback
- FlashCopy
- Stripe-unit size: 8 KB, 16 KB, 32 KB, and 64 KB
- Enables 33 hours of battery life for 3 years at 50°C
Visual identifiers:
- The option is shipped as a special memory DIMM with a battery attached (for battery-backup purposes)
- Memory is 256 MB, 133 MHz (PC2100) DDR1 memory
Figure 17. ServeRAID 7k
ServeRAID 8e SATA RAID Controller
Part number: None
Year of first availability: 2005
US Announcement Letter: Varies by server
Features:
- RAID controller integrated into specific servers providing RAID-0 and RAID-1
Visual identifiers:
- No extra hardware
- Function is integrated into the SAS or SATA controller of specific xSeries servers and enabled with software
- See the Supported servers table for the servers with this controller built in.
ServeRAID 8i SAS controller
Part number: 13N2227 (2005), 39R8729 (2005)
Year of first availability: 2005
US Announcement Letter:
Features:
- RAID 0, 1, 5, 1E, 00, 10, 50, 1E0, 5EE
- Zero Channel RAID (ZCR) controller
- Half-length adapter
- Dedicated PCI-X 64-bit ZCR slot at 133 MHz
- Supports independent and adjustable stripe sizes of 256 KB and 512 KB
- 256 MB cache
- 600 MHz processor
- Supports Logical Drive Migration, Global Hot Spare, Copyback, and FlashCopy
- Battery backup
Visual identifiers:
- Blue circuit board
- The card will either have a blue handle attached (for use with x260, x366, x460) or a PCI bracket attached (for use with x206m and x306m)
- No connectors for disks
- Battery attached
- The two part numbers are identical electronics - the difference is the level of firmware installed at the factory. Packaging is also different as follows:
- Part 13N2227: Has the blue handle attached by default, with the PCI bracket in the box
- Part 39R8729: Has the PCI bracket attached by default, with the blue handle in the box
A note about the two part numbers and firmware: 13N2227 was introduced with the x366 and may have V8.00 or later firmware. 39R8729 was introduced with the x206m and ships with V8.15 or later firmware. 39R8729 will replace 13N2227. The cards are interchangeable, but a ServeRAID-8i installed in the x206m and x306m must have V8.15 firmware or later. A card with firmware earlier than V8.15 will not function in an x206m or x306m. In addition, you cannot upgrade the firmware of the card to V8.15 while it is installed in an x206m or x306m if it has older firmware . You must upgrade the firmware in another system.

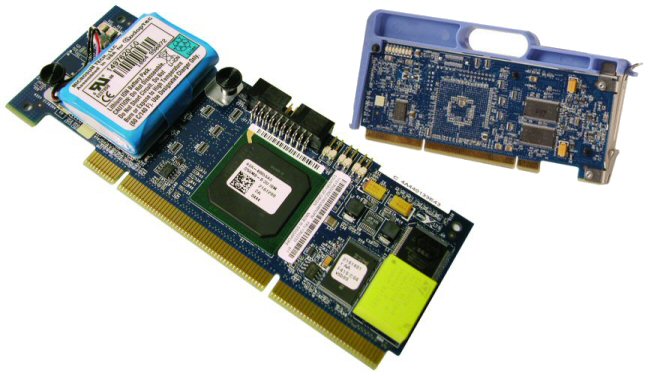

Figure 18. ServeRAID-8i

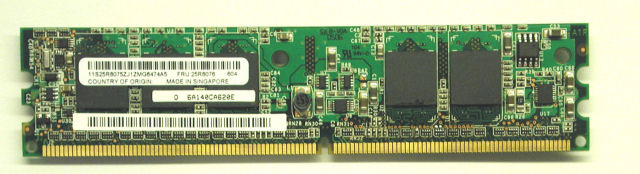

ServeRAID 8k SAS Controller
Part number: 25R8064
Year of first availability: 2006
US Announcement Letter: 106-379 (announced with the System x3650)
Features:
- 256 MB DDR2 533 MHz
- Enables 72 hours of battery life for 3 years at 45°C
- RAID-0, 1, 1E, 10, 5, 6,
- Copyback
- FlashCopy
- Stripe-unit size: 16 KB, 32 KB and 64 KB, 128 KB, 256 KB, 512 KB, and 1024 KB
Visual identifiers:
- The option is shipped as a special memory DIMM with a battery attached through wires (for battery-backup purposes)
- The DIMM is installed in a special DIMM socket in supported servers
- Five DRAM chips on the DIMM
- FRU on label is 25R8076; Stamped "Adaptec ATB-200" on battery side
- Write-back cache memory is 256 MB, 533 MHz DDR2 unbuffered memory
- Battery is connected to the DIMM by wires and is typically mounted on the server chassis
Figure 19. ServeRAID 8k (battery not shown)

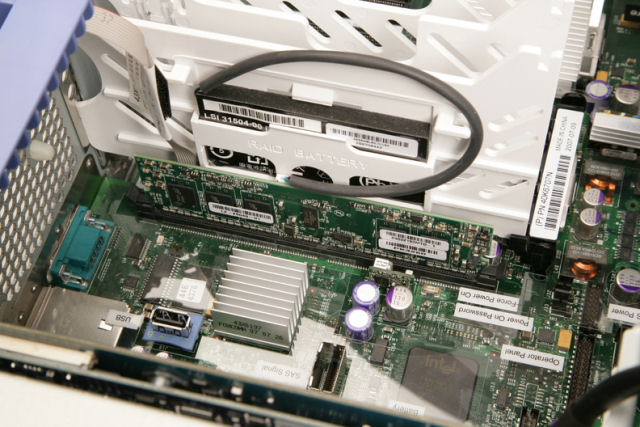

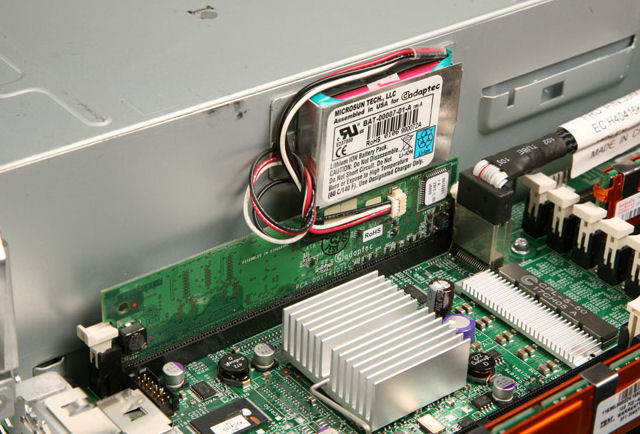

Figure 20. ServeRAID 8k installed in an x3650
ServeRAID 8k-l SAS Controller
Part number: None (standard in supported servers)
Year of first availability: 2006
US Announcement Letter: 106-379 (announced with the System x3650)
Features:
- Supports RAID-0, 1, and 10
Visual identifiers:
- A special memory DIMM, but no battery attached (unlike ServeRAID 8k)
- One DRAM chip on the DIMM
- No cache for data (see RETAIN tip H187701 for clarification)
- See the Supported servers table for the servers with this controller standard
Photo not currently available. The DIMM is similar to the ServeRAID 8k but with only one DRAM chip and no battery.
ServeRAID 8s SAS PCIe Controller
Part number: 39R8765
Year of first availability: 2007
US Announcement Letter: 107-028
Features:
- Two x4 Internal SFF-8470 connector / One x4 external SFF-8484 connector
- RAID levels: 0, 1, 1E, 10, 5, 6, 50, and 60
- 8-lane 2.5 Gbps PCI Express
- Up to 3 Gbps of performance throughput for each port at full duplex
- Supports independent and adjustable stripe unit sizes up to 1024 KB, default 256 KB
- Logical Drive Migration, Global Hot Spare, and Rebuild and Rapid Restore features
- 3/4 Length, Full Height adapter
- Optional ServeRAID-8s Battery (39R8812)
Visual identifiers:
- One x4 external SFF-8470 SAS connector
- Two x4 internal SFF-8484 SAS connectors
- 3/4 length, full height board
- Large fan on the board
- Optional battery (option part number 39R8812)
- Optional internal cable for hot-swap System x3250 models and hot-swap x3200 models (43W4908)
- Optional internal cable for simple-swap x3200 models (43W4910)

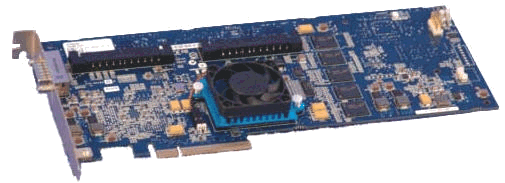

Figure 21. ServeRAID-8s

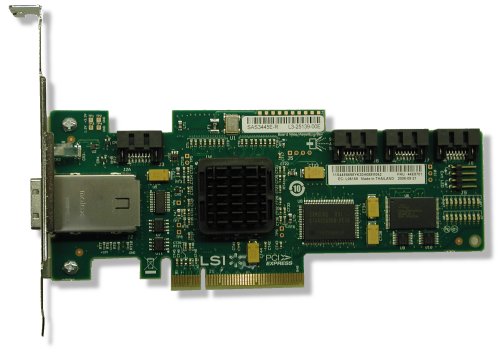

IBM SAS HBA Controller
Part number: 25R8060
Year of first availability: 2006
US Announcement Letter: 106-646
Features:
- 3 Gbps per SAS port
- PCI Express host interface
- Small form-factor design (MD-2)
- Four x1 internal 7 pin connectors / one x4 external SFF8088
- 8-lane 2.5 Gbps PCI-Express
- Connects to both SAS and SATA HDDs and tape drives
- Connects to external storage controllers via optional mini-SAS cable
- SAS hard disk support with integrated RAID 0, 1, 1E (specific systems only)
- SAS tape support
Visual identifiers:
- 1 external Mini-SAS x4 connector (SFF-8088)
- 4 internal SATA x1 connectors

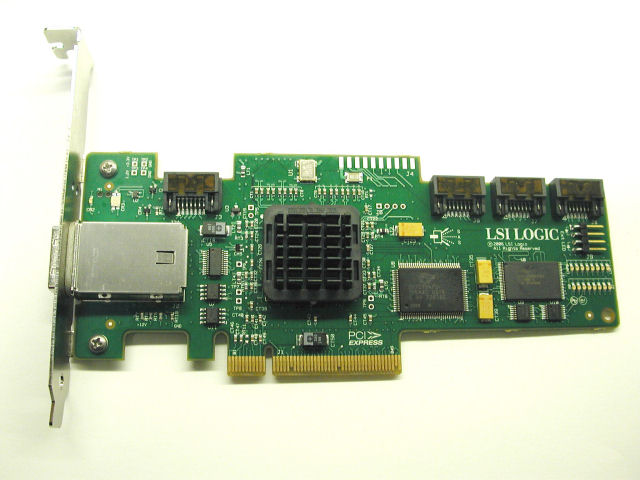

Figure 22. IBM SAS HBA Controller
MegaRAID 8480 adapter
Part number: 39R8850
Year of first availability: 2006
US Announcement Letter: 106-640
Features:
- Two SAS SFF8470 x4 external connectors
- Support up to 48 HDDs, using four EXP3000 external disk enclosures
- Performance up to 3 Gbps throughput at full duplex
- Support for independent and adjustable stripe unit sizes for 8 KB up to 128 KB configurable per logical drive
- Support for 256 MB DDR2 SDRAM for data caching
- An intelligent Transportable Battery Backup (iTBBU) that protects cached data for up to 72 hours in the event of power failure
- Support for RAID-0,-1,-5,-10, and 50
Visual identifiers:
- Two SAS SFF8470 x4 external connectors
- Full-height half-length adapter
- Attached battery

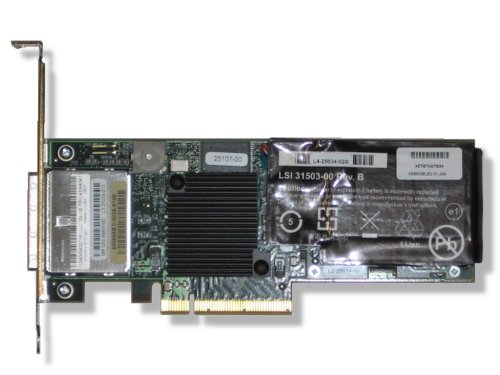

Figure 23. MegaRAID 8480 adapter

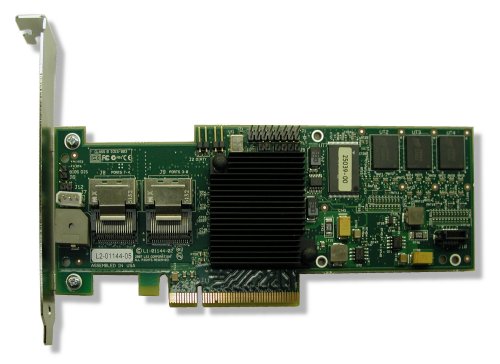

ServeRAID-MR10il SAS/SATA II Controller
Part number: 44E8767
Year of first availability: 2008
US Announcement Letter: AG08-0353 (announced in Asia Pacific countries only)
Features:
- Low-profile MD2 half-length 2U form factor adapter card
- Two internal x4 SFF-8087 connectors
- PCI Express x8 host interface
- SAS Controller: LSI 1078e
- 3 Gbps per port data transfer rate
- Supports SAS 3 Gbps and SATA 2
- 128 MB cache
- Stripe unit sizes up to 1024 KB, default 256 KB
- RAID levels : RAID 0, 1, 1E, 5, 6, 10, 50, 60
- Support for Logical Drive Migration, Global Hot Spare, and Rebuild and Rapid Restore features
Visual identifiers:
- No external connectors
- Low-profile MD2 half-length 2U form factor adapter card.
- Two x4 SFF-8087 connectors on left side of card

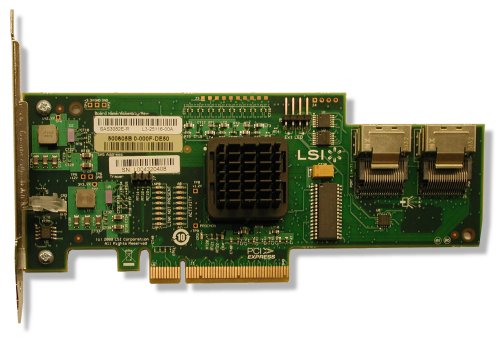

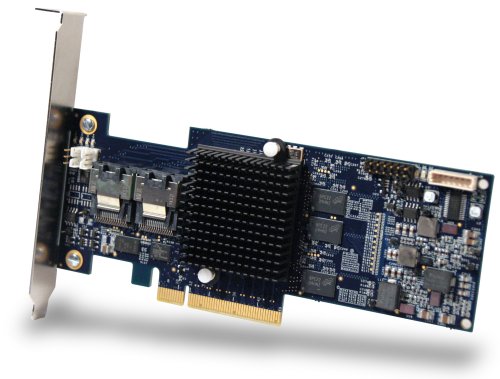

Figure 24. ServeRAID-MR10il SAS/SATA II Controller

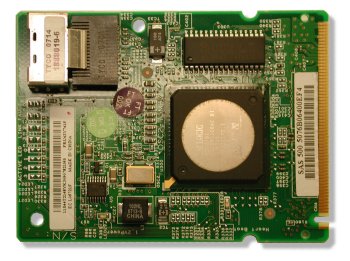

ServeRAID BR10il SAS/SATA Controller
Part number: 44X0411
Year of first availability: 2008
US Announcement Letter: US108-352
Features:
- Form factor: Rectangular card with mini-PCIe connector
- One internal x4 SFF-8087 connectors
- PCI Express x4 host interface
- SAS Controller: LSI 1064e
- 3 Gbps per port data transfer rate
- Supports SAS 3 Gbps and SATA 2
- Cache: None
- Maximum stripe size: 64 KB (fixed)
- RAID levels : RAID 0, 1, 1E
Visual identifiers:
- No external connectors
- Rectangular card with mini-PCIe connector
- One x4 SFF-8087 connector
Figure 25. IBM ServeRAID-BR10il SAS/SATA PCIe Controller
ServeRAID MR10k SAS/SATA Controller
Part number: 43W4280
Year of first availability: 2007
US Announcement Letter: US107-594
Features:
- Installs in a dedicated connector on the system planar
- DIMM form factor (uses existing SAS connections as provided by the server)
- PCI Express x8 host interface
- SAS Controller: LSI 1078E
- 3 Gbps per port data transfer rate
- Supports SAS 3 Gbps and SATA 2
- 256 MB cache
- External Intelligent Transportable Battery Backup (iTBBU) connected via wires (FRU 44W4283)
- Maximum stripe size: 1024 KB
- RAID levels : RAID 0, 1, 5, 6, 10, 50, 60
Visual identifiers:
- The option is shipped as a special memory DIMM with a battery attached through wires (for battery-backup purposes)
- The DIMM is installed in a special DIMM socket in supported servers
- Five DRAM chips on the DIMM
- FRU on label is 25R8076; Stamped "Adaptec ATB-200" on battery side
- Battery is connected to the DIMM by wires and is typically mounted on the server chassis
Figure 26. ServeRAID MR10k SAS/SATA Controller

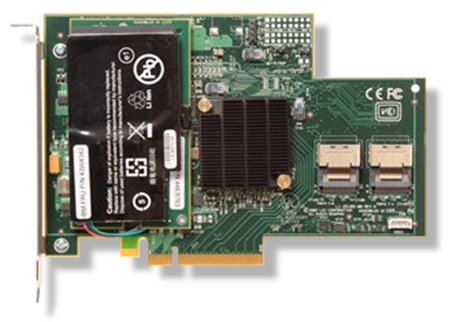

ServeRAID MR10is VAULT SAS/SATA Controller
Part number: 44E8695
Year of first availability: 2008
US Announcement Letter: US108-444
Features:
- Stored data encryption
- Full height (3U), half length card
- Two internal x4 SFF-8087 connectors
- PCI Express x8 host interface
- SAS Controller: LSI 1078DE
- 3 Gbps per port data transfer rate
- Supports SAS 3 Gbps and SATA 2
- 256 MB cache
- Li-Ion battery backup
- Maximum stripe size: 1024 KB
- RAID levels : RAID 0, 1, 5, 6, 10, 50, 60
Visual identifiers:
- No external connectors
- Full-height half-length form factor adapter card.
- Two x4 SFF-8087 connectors on right side of card
- Battery is mounted on left side of card

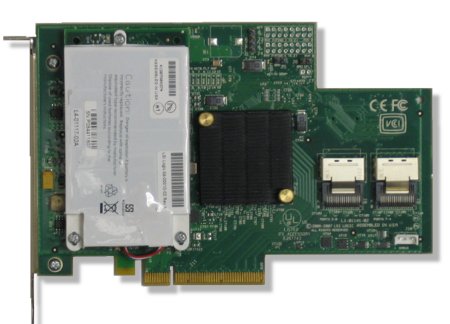

Figure 27. ServeRAID-MR10is VAULT SAS/SATA Controller
IBM 3Gb SAS HBA v2
The IBM 3Gb SAS HBA v2 provides an ideal solution for all servers and workstations needing ultra high-speed data transfer in disk connectivity for data backup and mission critical applications. This HBA provides support for SAS and SATA HDDs and tape drive configurations.
Figure 28. IBM 3Gb SAS HBA v2
Table 1. IBM 3Gb SAS HBA v2 part number and feature code
| Description | Part number | Feature code |
| IBM 3Gb SAS HBA v2 | 44E8700 | 3583 |
IBM 3Gb SAS HBA v2 specifications
- 1 external Mini-SAS x4 connector (SFF-8088)
- 4 internal SATA x1 connectors
- LSI 1068E SAS controller
- PCI Express x8 host interface
- RAID levels : None*
* The 3Gb SAS HBA v2 supports RAID but only on the System x3455 (RAID levels 0, 1, 1E are supported). All other supported systems support tape connectivity only. See the announcement letter (link below) for details.
Resources
- IBM 3Gb SAS HBA User's Guide
http://ibm.com/support/entry/portal/docdisplay?lndocid=MIGR-5084130 - IBM Announcement Letter
US: http://ibm.com/common/ssi/cgi-bin/ssialias?infotype=dd&subtype=ca&&htmlfid=897/ENUS109-099
EMEA: http://ibm.com/common/ssi/cgi-bin/ssialias?infotype=dd&subtype=ca&&htmlfid=877/ENUSZG09-0132
ServeRAID MR10M SAS/SATA Controller
The ServeRAID-MR10M SAS/SATA Controller is a high performance PCIe RAID Controller for external direct-attached storage, including IBM System Storage EXP3000. This RAID adapter provides investment protection by supporting SAS and SATA hard drive configurations, and providing performance enhancements enabled by a standard battery. The battery enables cached data protection during unexpected power outages when the controller is operating in its higher performance, write back mode.
Figure 29. ServeRAID-MR10M SAS/SATA Controller
Table 2. ServeRAID-MR10M SAS/SATA Controller part number and feature code
| Description | Part number | Feature code |
| ServeRAID MR10M SAS/SATA Controller | 44E8825 43W4339* | 3559 |
ServeRAID MR10M specifications
The ServeRAID MR10M has the following specifications:
- MD2 form factor card (2U low profile height)
- Two SFF-8088 SAS x4 external connectors
- PCI Express x8 host interface
- SAS Controller: LSI 1078e
- 3 Gbps per port data transfer rate
- Supports SAS 3 Gbps and SATA 2
- 256 MB cache
- Li-Ion battery backup
- Maximum stripe size: 1024 KB
- RAID levels : RAID 0, 1, 5, 6, 10, 50, 60
Resources
- ServeRAID MR10M User's Guide
http://ibm.com/support/entry/portal/docdisplay?lndocid=MIGR-5074105 - ServeRAID software and drivers
http://ibm.com/support/entry/portal/docdisplay?lndocid=SERV-RAID - IBM Announcement Letter
US: http://ibm.com/common/ssi/cgi-bin/ssialias?infotype=dd&subtype=ca&&htmlfid=897/ENUS107-594
EMEA: http://ibm.com/common/ssi/cgi-bin/ssialias?infotype=dd&subtype=ca&&htmlfid=877/ENUSZG08-0660
ServeRAID MR10i SAS/SATA Controller
The ServeRAID-MR10i SAS/SATA Controller is a low-cost PCIe RAID controller for Internal System RAID 0, 1, 10, 5, 50, 6, 60. This full height, half length adapter uses an LSI 1078 controller with an x8 PCI Express host interface and eight internal SAS/SATA II 3 Gb/s ports. MegaRAID Storage Manager (MSM), included with ServeRAID-MR10i, is a robust RAID management, configuration, and reporting application.
Figure 30. ServeRAID-MR10i SAS/SATA Controller
Table 3. ServeRAID-MR10i SAS/SATA Controller part numbers and feature codes.
| Description | Part number | Feature code |
| ServeRAID MR10i SAS/SATA Controller | 43W4296 | 3571 |
| ServeRAID-MR10i NiMH Battery | 43W4299* | None |
| ServeRAID-MR10i Li-Ion Battery | 44E8826 | 5864 |
ServeRAID MR10i specifications
The ServeRAID MR10i has the following specifications:
- Full height (3U), half length card
- Two internal x4 SFF-8087 connectors
- PCI Express x8 host interface
- SAS Controller: LSI 1078e
- 3 Gbps per port data transfer rate
- Supports SAS 3 Gbps and SATA 2
- 256 MB cache
- Optional battery backup; two options: NiMH (now withdrawn from marketing) or Li-Ion
- Maximum stripe size: 1024 KB
- RAID levels : RAID 0, 1, 5, 6, 10, 50, 60
Note: Not all servers that support this controller also support the battery. See IBM ServerProven® for details.
Resources
- ServeRAID MR10i User's Guide
http://ibm.com/support/entry/portal/docdisplay?lndocid=MIGR-5074114 - ServeRAID software and drivers
http://ibm.com/support/entry/portal/docdisplay?lndocid=SERV-RAID - IBM Announcement Letter
US: http://ibm.com/common/ssi/cgi-bin/ssialias?infotype=dd&subtype=ca&&htmlfid=897/ENUS108-055
EMEA: http://ibm.com/common/ssi/cgi-bin/ssialias?infotype=dd&subtype=ca&&htmlfid=877/ENUSZG08-0114
ServeRAID BR10i SAS/SATA Controller
The ServeRAID-BR10i SAS/SATA Controller provides an ideal solution for all servers requiring solid performance with RAID 0, 1 and 1E capability. This RAID adapter provides investment protection by supporting SAS and SATA hard drive and tape drive configurations.
Figure 31. ServeRAID-BR10i SAS/SATA Controller
Table 4. ServeRAID-BR10i SAS/SATA Controller part number and feature code
| Description | Part number | Feature code |
| ServeRAID BR10i SAS/SATA Controller | 44E8689 | 3577 |
ServeRAID BR10i specifications
The ServeRAID BR10i has the following specifications:
- Low-profile MD2 half-length 2U form factor adapter card
- Two internal x4 SFF-8087 connectors
- PCI Express x8 host interface
- SAS Controller: LSI 1068e
- 3 Gbps per port data transfer rate
- Supports SAS 3 Gbps and SATA 2
- Cache: None
- uEFI support
- Maximum stripe size: 64 KB (fixed)
- RAID levels : RAID 0, 1, 1E
Resources
- ServeRAID BR10i User's Guide
http://ibm.com/support/entry/portal/docdisplay?lndocid=MIGR-5084255 - ServeRAID BR10 software and drivers
http://ibm.com/support/entry/portal/docdisplay?lndocid=MIGR-65666 - IBM Announcement Letter
US: http://ibm.com/common/ssi/cgi-bin/ssialias?infotype=dd&subtype=ca&&htmlfid=897/ENUS109-099
EMEA: http://ibm.com/common/ssi/cgi-bin/ssialias?infotype=dd&subtype=ca&&htmlfid=877/ENUSZG09-0132
Today's business-critical servers require more protection, performance, and manageability than ever. An enterprise-grade RAID solution needs to provide the greatest level of data protection, the highest performance, and easy-to-use management tools. The ServeRAID B5015 SSD Controller combines the PM8013 maxSAS RAID-on-Chip (RoC) controller and the RAID stack from PMC-Sierra to accommodate the most rigorous server environments and to support high-performing SSDs.
Figure 32. ServeRAID B5015 SSD Controller
Table 5. ServeRAID B5015 SSD Controller part numbers and feature codes
| Description | Part number | Feature code |
| ServeRAID B5015 SSD Controller | 46M0969 | 3889 |
ServeRAID B5015 specifications
The ServeRAID B5015 SSD Controller has the following specifications:
- RAID 1 and 5 support
- Hot-spare support with automatic rebuild capability
- Background data scrubbing
- 6 Gbps per SAS port
- PCI Express 2.0 x8 host interface
- PCI MD2 low profile form factor
- Two x4 internal (SFF-8087) connectors
- SAS controller: PMC-Sierra PM8013 maxSAS 6 Gbps SAS RoC controller
- Up to 8 disk drives per RAID adapter
- Performance optimized for SSDs
- Three multi-threading MIPS processing cores
- High performance contention-free architecture
- Up to four ServeRAID B5015 adapters supported in a system
- Maximum stripe size: 1024 KB
- Support for up to 4 arrays/logical volumes
Resources
For more information, see the following documents:
- ServeRAID B5015 SSD Controller for IBM System x Product Guide
http://www.redbooks.ibm.com/abstracts/tips0763.html - ServeRAID B5015 Installation Guide (download the unpack the ISO file)
http://www.ibm.com/support/docview.wss?uid=psg1MIGR-5085047 - ServeRAID B5015 drivers, maxRAID software, and utilities
http://www.ibm.com/support/docview.wss?uid=psg1MIGR-5085047 - IBM US Announcement Letter
http://ibm.com/common/ssi/cgi-bin/ssialias?infotype=dd&subtype=ca&&htmlfid=897/ENUS110-113
The ServeRAID-MR10ie Controller is a high-performance PCIe RAID Controller expansion card for BladeCenter for on-board and external Direct Attached Storage RAID 0, 1, 10, 5, 50, 6, and 60. This expansion card form factor (CIOv) with battery backed memory cache, utilizes an LSI 1078 controller for support with up to 26 disk drives. Option includes battery backup module (BBU) that installs in blade server DIMM socket.
The following table provides the ordering part numbers and feature codes.
Table 6. Ordering part numbers and feature codes
| Description | Part number | System x feature code |
| ServeRAID MR10ie (CIOv) Controller for IBM BladeCenter (includes battery) | 46C7167 | 0070 |
| Battery for ServeRAID-MR10ie (CIOv) Controller | 46M0800 | 5741 |
ServeRAID MR10ie (CIOv) specifications
The ServeRAID MR10ie (CIOv) Controller has the following specifications:
- Two SAS ports routed internally to the two hot-swap drive bays
- Two SAS ports routed internally to the chassis I/O bays 3 and 4
- Supports RAID levels 0, 1, 5, 6, 10, 50, and 60
- Provides 256 MB of ECC DDR-2 battery-backed cache
- 3 Gbps throughput per port
- PCI Express 1.0 x4 host interface
- Based on the LSI 1078 controller
- Supports up to 26 disk drives
- Supports connectivity to the BladeCenter S disk storage modules (via SAS Connectivity Modules) and tape drives
- Supports connectivity to the EXP3000, EXP2512 and EXP2524 storage expansion enclosures
Resources
For more information, see the following documents:
- ServeRAID MR10ie SAS/SATA Controller Installation and User Guide
http://www.ibm.com/support/entry/portal/docdisplay?lndocid=MIGR-5078830 - System x RAID products home page
http://www.ibm.com/systems/storage/product/systemx/scsi_raid.html - IBM ServeRAID software matrix
http://www.ibm.com/support/entry/portal/docdisplay?lndocid=SERV-RAID - IBM US Announcement Letter
http://ibm.com/common/ssi/cgi-bin/ssialias?infotype=dd&subtype=ca&&htmlfid=897/ENUS108-761
The following three tables provide a comparison of features between the members of the ServeRAID family and other RAID controllers sold by IBM.
RAID controller device driver downloads: http://ibm.com/support/entry/portal/docdisplay?lndocid=MIGR-65723
Jump to:
Feature comparison - ServeRAID 1-4 adapters
Table 7. Feature comparison - ServeRAID to ServeRAID 4H
| Feature_____________ | SR | II | 3L | 3L-II* | 3H | 3HB | 4L | 4Lx | 4M | 4Mx | 4H |
| SCSI or SATA | SCSI | SCSI | SCSI | SCSI | SCSI | SCSI | SCSI | SCSI | SCSI | SCSI | SCSI |
| First available | 1996 | 1997 | 1998 | 2000 | 1998 | 1999 | 2000 | 2001 | 2000 | 2001 | 2000 |
| US Announcement Letter | 196-134 | 197-256 | 198-232 | 100-101 | 198-232 | 199-152 | 100-099 | 101-146 | 100-099 | 101-146 | 100-099 |
| Marketing part number | 70G8489 | 76H3584 | 01K7364 | 19K0564 | 01K7207 | 37L6086 | 37L6091 | 06P5740 | 37L6080 | 06P5736 | 37L6889 |
| FRU part number (adapter only) | 06H9334 | 76H3587 | 37L6083 01K7352 | 01K7352 | 01K7396 | 01K7396 | 09N9540 | 06P5741 | 37L7258 | 06P5737 | 37L6892 |
| Useful links | Drivers | Drivers | Drivers | Drivers | Drivers | Drivers | Guide Drivers | Guide Drivers | Guide Drivers | Guide Drivers | Guide Drivers |
| Internal connectors | 3 | 3 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 |
| External connectors (std/max) | 1/1 | 2/3 | 1/1 | 1/1 | 2/3 | 2/3 | 1/1 | 1/1 | 2/2 | 2/2 | 4/4 |
| Cable for extra external connector | None | Optional 76H5400 | None | None | Included | Included | None | None | None | None | None |
| External connector type | 68 pin | VHDCI | VHDCI | VHDCI | VHDCI | VHDCI | VHDCI | VHDCI | VHDCI | VHDCI | VHDCI |
| Cache | 4 MB | 4 MB | 4 MB | 4 MB | 32 MB | 32 MB | 16 MB | 32 MB | 64 MB | 64 MB | 128 MB |
| Battery backup for cache | No | Optional 76H5401 28L1003 | No | No | Optional 28L1003 | Yes | No | No | Yes | Yes | Yes |
| SCSI channels / SATA ports | 3 | 3 | 1 | 1 | 3 | 3 | 1 | 1 | 2 | 2 | 4 |
| Disks per channel (SCSI) or port (SATA) | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 14 | 15 | 14 | 15 |
| SCSI level | SCSI F/W | Ultra | Ultra2 | Ultra2 | Ultra2 | Ultra2 | Ultra160 | Ultra160 | Ultra160 | Ultra160 | Ultra160 |
| PCI or PCI-X or PCI Express | PCI | PCI | PCI | PCI | PCI | PCI | PCI | PCI | PCI | PCI | PCI |
| PCI bus speed | 33 MHz | 33 MHz | 33 MHz | 33 MHz | 33 MHz | 33 MHz | 33 MHz | 66 MHz | 33 MHz | 66 MHz | 33 MHz |
| PCI bus width | 32 bit | 32 bit | 32 bit | 32 bit | 64 bit | 64 bit | 64 bit | 64 bit | 64 bit | 64 bit | 64 bit |
| PCI bus voltage | 5V | 5V | 5V | 5V | 5V | 5V | 3.3 or 5V | 3.3 or 5V | 3.3 or 5V | 3.3 or 5V | 3.3 or 5V |
| Autosync | No | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| "Optimal" SCSI speed setting | No | No | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| LVDS support | No | No | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| I2O enabled | No | No | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Active PCI support (hot-swap) | No | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Clustering support | No | No | No | No | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Usable in a fault-tolerant pair | No | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Data scrubbing | No | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| FlashCopy | No | No | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Copyback | No | No | No | No | No | No | No | No | No | No | No |
| Maximum stripe size | 64 KB | 64 KB | 64 KB | 64 KB | 64 KB | 64 KB | 64 KB | 64 KB | 64 KB | 64 KB | 64 KB |
| RAID-0 and RAID-1 support | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| RAID-5 support | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| RAID-1E support | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| RAID-5E support | No | No | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| RAID-5EE support (replaces 5E) | No | No | No | No | No | No | No | Yes | No | Yes | No |
| RAID-6 | No | No | No | No | No | No | No | No | No | No | No |
| RAID-00 support | No | No | No | No | No | No | Yes | Yes | Yes | Yes | Yes |
| RAID-10 support | No | No | No | No | No | No | Yes | Yes | Yes | Yes | Yes |
| RAID-1E0 support | No | No | No | No | No | No | Yes | Yes | Yes | Yes | Yes |
| RAID-50 support | No | No | No | No | No | No | Yes | Yes | Yes | Yes | Yes |
| RAID-60 support | No | No | No | No | No | No | No | No | No | No | No |
| Feature | SR | II | 3L | 3L-II* | 3H | 3HB | 4L | 4Lx | 4M | 4Mx | 4H |
* The ServeRAID-3L II, part 19K0564, replaced the ServeRAID-3L. The ServeRAID-3L and ServeRAID-3L II have identical features and support the same servers. The ServeRAID-3L II has a different card design so that it will fit vertically in 3U servers.
Feature comparison - ServeRAID 5-7
Table 8. Feature comparison - ServeRAID 5i to ServeRAID 7k
| Feature | 5i | 6M | 6M | 6i | SR-6i+ | 7t | 7e | 7k |
| SCSI or SATA or SAS | SCSI | SCSI | SCSI | SCSI | SCSI | SATA | SCSI, SATA | SCSI |
| First available | 2002 | 2003 | 2003 | 2003 | 2004 | 2004 | 2004 | 2004 |
| US Announcement Letter | 102-170 | 103-206 | 103-206 | 103-210 | 104-078 | 104-075 |  | 104-284 |
| Marketing part number | 25P3492 | 32P0033 39R8815 | 02R0988 39R8816 | 71P8595 | 13N2190 39R8793 | 71P8648 39R8805 | None | 71P8642 39R8800 |
| Processor | | Intel IOP321 600 MHz | Intel IOP321 600 MHz | | Intel IOP321 400 MHz | 80302 | Not applicable | Intel IOP332 |
| Useful links | Guide Drivers | Drivers | Drivers | Drivers | Drivers | Drivers | Drivers | Drivers |
| Internal connectors | 0 | 2 | 2 | 0 | 0 | 4 | 0 | 0 |
| External connectors (std/max) | 0 | 2/2 | 2/2 | 0 | 0 | 0 | 0 | 0 |
| Cable for extra external connector | None | None | None | None | None | None | None | None |
| External connector type | None | VHDCI | VHDCI | None | None | None | None | None |
| Cache | 128 MB | 128 MB | 256 MB | 128 MB | 128 MB | 64 MB | None | 256 MB |
| Battery backup for cache | Yes | Yes | Yes | Yes | Yes | No | No | Yes |
| SCSI channels / SATA ports / SAS ports | 1 on server | 2 | 2 | 1 or 2 on server | 1 or 2 on server | 4 | 1 or 2 | 2 on server |
| Disks per channel (SCSI) or port (SATA/SAS) | 14 | 14 | 14 | 14 | 14 | 1 | Varies | 14 |
| SCSI level | Ultra320 | Ultra320 | Ultra320 | Ultra320 | Ultra320 | SATA | Ultra320 | Ultra320 |
| PCI or PCI-X or PCI Express | PCI | PCI-X | PCI-X | PCI-X | PCI-X | PCI | PCI-X | PCI-X 1.0 |
| PCI bus speed | 66 MHz | 133 MHz | 133 MHz | 133 MHz | 133 MHz | 66 MHz | Varies | 100 MHz |
| PCI bus width | 64-bit | 64-bit | 64-bit | 64-bit | 64-bit | 64-bit | 64-bit | 64-bit |
| PCI bus voltage | 3.3 or 5V | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V or 5V | Not applicable | Not applicable |
| Autosync | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| "Optimal" SCSI speed setting | Yes | Yes | Yes | Yes | Yes | Not applicable | Yes | Yes |
| LVDS support | Yes | Yes | Yes | Yes | Yes | Not applicable | Yes | Yes |
| I2O enabled | Yes | Yes | Yes | Yes | Yes | No | Not applicable | Yes |
| Active PCI support (hot-swap) | No | No | No | No | No | No | No | No |
| Clustering support | No | Yes | Yes | No | No | No | No | No |
| Usable in a fault-tolerant pair | No | Yes | Yes | No | No | No | No | No |
| Data scrubbing | Yes | Yes | Yes | Yes | Yes | No | No | Yes |
| FlashCopy | No | Yes | Yes | Yes | Yes | Yes | No | Yes |
| Copyback | No | No | Yes | Yes | Yes | No | No | Yes |
| Maximum stripe size | 64 KB | 64 KB | 64 KB | 64 KB | 64 KB | 64 KB | 64 KB | 64 KB |
| RAID-0 and RAID-1 support | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| RAID-5 support | Yes | Yes | Yes | Yes | Yes | Yes | No | Yes |
| RAID-1E support | Yes | Yes | Yes | Yes | Yes | No | No | Yes |
| RAID-5E support | No | No | No | No | No | No | No | No |
| RAID-5EE support (replaces 5E) | No | Yes | Yes | Yes | Yes | No | No | Yes |
| RAID-6 | No | No | No | No | No | No | No | No |
| RAID-00 support | No | Yes | Yes | Yes | Yes | No | No | Yes |
| RAID-10 support | Yes | Yes | Yes | Yes | Yes | Yes | No | Yes |
| RAID-1E0 support | No | Yes | Yes | Yes | Yes | No | No | Yes |
| RAID-50 support | Yes | Yes | Yes | Yes | Yes | No | No | Yes |
| RAID-60 support | No | No | No | No | No | No | No | No |
| Feature | 5i | 6M | 6M | 6i | SR-6i+ | 7t | 7e | 7k |
Feature comparison - ServeRAID 8, SAS HBA, MegaRAID
Table 9. Feature comparsion - ServeRAID 8i - ServeRAID 8s, SAS HBA, and MegaRAID
| Feature___________________ | 8i | 8e | 8k-l | 8k | 8s | SASHBA | MegaRAID |
| SCSI or SATA or SAS | SAS, SATA | SAS, SATA | SAS, SATA | SAS, SATA | SAS, SATA | SAS, SATA | SAS, SATA |
| First available | 2005 | 2005 | 2006 | 2006 | 2007 | 2006 | 2006 |
| US Announcement Letter | 105-125 | | | 106-379 | 107-028 | 106-646 | 106-640 |
| Marketing part number | 13N2227 39R8729 | None | None | 25R8064 | 39R8765 | 25R8060 | 39R8850 |
| Processor | Intel IOP321 | Not applicable | Vitesse VSC7250 | Vitesse VSC7250 | | LSI 1064E | Intel Brockton IOP XScale processor |
| Useful links | Drivers Install Guide | Drivers | Drivers Install Guide | Drivers Install Guide | Drivers Install Guide | Support | Support |
| Internal connectors | 1 | 0 | 1 | 1 | 2 | 4 (x1) | 0 |
| External connectors (std/max) | 0 | 0 | 1 | 1 | 1 | 1 (x4) | 2 SAS x4 |
| External connector type | None | None | None | None | SFF-8470 | SFF-8088 | SFF-8470 |
| Cache | 256 MB | None | None | 256 MB | 256 MB | None | 256 MB |
| Battery backup for cache | Yes | No | No | Yes | Optional 39R8812 | None | Yes |
| SATA / SAS ports | 6 or 8 | Varies | 8 | 8 | 2 | 4 | 2 |
| SAS level | SAS SATA 2 | SAS SATA 2 | SAS SATA 2 | SAS SATA 2 | SAS SATA 2 | SAS SATA 2 | SAS SATA 2 |
| PCI or PCI-X or PCI Express | PCI-X 1.0 | PCI-X | PCIe | PCIe | PCIe | PCIe | PCIe |
| PCI bus speed | 133 MHz | Varies | x4 | x4 | x8 | x8 | x8 |
| PCI bus width | 64-bit | Varies | Not applicable | Not applicable | Not applicable | Not applicable | Not applicable |
| PCI bus voltage | 3.3V | Not applicable | Not applicable | Not applicable | Not applicable | Not applicable | Not applicable |
| Autosync | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Active PCI support (hot-swap) | No | No | No | No | No | No | No |
| Clustering support | No | No | No | No | No | No | No |
| Usable in a fault-tolerant pair | No | No | No | No | No | No | No |
| Data scrubbing ("Patrol read") | Yes | No | Yes | Yes | Yes | No | Yes |
| FlashCopy | Yes | No | No | Yes | Yes | No | No |
| Copyback | Yes | No | No | Yes | Yes | No | No |
| Maximum stripe size | 1024 KB | 64 KB | 1024 KB | 1024 KB | 1024 KB | 64 KB | 128 KB |
| RAID-0 and RAID-1 support | Yes | Yes | Yes | Yes | Yes | Yes* | Yes |
| RAID-5 support | Yes | No | No | Yes | Yes | No | Yes |
| RAID-1E support | Yes | No | No | Yes | Yes | Yes* | No |
| RAID-5E support | No | No | No | No | No | No | No |
| RAID-5EE support (replaces 5E) | Yes | No | No | No | No | No | No |
| RAID-6 | Yes | No | No | Yes | Yes | No | No |
| RAID-00 support | Yes | No | No | No | No | No | No |
| RAID-10 support | Yes | Yes | Yes | Yes | Yes | No | Yes |
| RAID-1E0 support | Yes | No | No | No | No | No | No |
| RAID-50 support | Yes | No | No | No | Yes | No | Yes |
| RAID-60 support | Yes | No | No | No | Yes | No | No |
| Feature___________________ | 8i | 8e | 8k-l | 8k | 8s | SASHBA | MegaRAID |
* The SAS HBA only supports the System x3455 for disk RAID (RAID 0, 1, 1E). All other supported systems support tape connectivity only.
** The 3 Gb SAS HBA v2 only supports the System x3455 for disk RAID (RAID 0, 1, 1E). All other supported systems support tape connectivity only. See the announcement letter 109-099 for details.
Table 10. Feature comparison - ServeRAID MR and BR
| Feature | MR10ie | B5015 | MR10is | MR10k | BR10il | MR10M | MR10i | BR10i | 3Gb SAS v2 |
| Port interface | SAS | SAS | SAS | SAS | SAS | SAS | SAS | SAS | SAS |
| Port speed, Gbps | 3 | 6 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of ports | 8 | 8 | | | | | | | |
| PCIe spec | 1.0 | 2.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| PCIe lanes | x4 | x8 | x8 | x8 | x4 | x8 | x8 | x8 | x8 |
| Int. connectors | 2 | 2 | 2 | 0 | 1 | 0 | 2 | 2 | 4 |
| Ext. connectors | 0 | 0 | 0 | 0** | 0 | 2 | 0 | 0 | 1 |
| SAS controller | LSI SAS 1078 | PMC 8013 | LSI SAS 1078 DE | LSI SAS 1078 | LSI SAS 1064 | LSI SAS 1078 | LSI SAS 1078 | LSI SAS 1068 | LSI SAS 1068 |
| Cache (MB)# | 256 | None | 256 | 256 | None | 256 | 256 | None | None |
| Battery | Y | N | Y | Y | N | Y | Opt | N | N |
| Flash | N | N | N | N | N | N | N | N | N |
| Data encryption | N | N | Y | N | N | N | N | N | N |
| Max stripe size (KB) (F=fixed) | 1024 | 1024 | 1024 | 1024 | 64-F | 1024 | 1024 | 64-F | N/A |
| Mixing SAS & SATA drives‡ | Y | N/A | | | | | | | |
| SSD support | Y | Y | | | | N | N | Y | N |
| Tape support | Y | N | N | N | N | N | N | N | Y |
| Max volumes | 64 | 4 | | | | | | | N/A |
| Max LUN size | >2TB | | | | | | | | N/A |
| UEFI support | Y | Y | Y | N | Y | Y | Y | Y | Y |
| Patrol read (data scrubbing) | Y | Y | Y | Y | Y | Y | Y | Y | N/A |
| Consistency check | Y | | | | | | | | |
| Online RAID Level Migration† | Y | | | Y | | Y | | | N/A |
| Online Capacity Expansion | Y | | | | | | | | N/A |
| AutoSync | Y | Y | Y | Y | Y | Y | Y | Y | N/A |
| Copyback§ | N | N | Y | Y | N | Y | Y | N | N |
| FastPath | N | N | N | N | N | N | N | N | |
| CacheCade | N | N | N | N | N | N | N | N | |
| RAID-0 | Y | N | Y | Y | Y | Y | Y | Y | Y* |
| RAID-1 | Y | Y | Y | Y | Y | Y | Y | Y | Y* |
| RAID-1E | N | N | N | N | Y | N | N | Y | Y* |
| RAID-5 | Y | Y | Y | Y | N | Y | Y | N | N |
| RAID-6 | Y | N | Y | Y | N | Y | Y | N | N |
| RAID-10 | Y | N | Y | Y | N | Y | Y | N | N |
| RAID-50 | Y | N | Y | Y | N | Y | Y | N | N |
| RAID-60 | Y | N | Y | Y | N | Y | Y | N | N |
** The ServeRAID-MR10k does not have an external connector; however, the System x3850 M2 and x3950 M2 servers have a SFF-8088 external SAS port to which the MR10k connects.
* The IBM 3Gb SAS HBA v2 only supports RAID on the System x3455. All other supported systems support tape connectivity only.
‡ Support for arrays comprised of SAS drives connected to the same controller as arrays comprised of SATA drives (but not SAS & SATA drives in the same array). Requires that the server also supports the mixing of SAS & SATA.
† Online RAID Level Migration (RLM) is also known as Logical Drive Migration (LDM)
§ Copyback is also known as Revertible Hot Spare.
Supported servers
The following tables lists which servers support each of the ServeRAID adapters. For the latest information about supported adapters, see ServerProven at http://www.ibm.com/servers/eserver/serverproven/compat/us/
Jump to
- IBM Netfinity servers
- IBM eServer xSeries servers
- IBM eServer systems
- IBM System x servers
- IBM iDataPlex servers
- IBM BladeCenter servers
IBM Netfinity servers
Note: RAID controllers newer than the ones shown are not supported.
Table 11. Supported IBM Netfinity servers
| Server | SR | II | 3L | 3H | 3HB | 4L | 4Lx | 4M | 4Mx | 4H | 5i | 6M |
| Netfinity 1000 | No | Yes | Yes | Yes | Yes | Yes | No | No | No | Yes | No | No |
| Netfinity 3000 | No | Yes | Yes | Yes | Yes | Yes | No | No | No | No | No | No |
| Netfinity 3500 | No | Yes | Yes | Yes | Yes | No | No | No | No | No | No | No |
| Netfinity 3500 M20 | No | No | Yes | Yes | Yes | Yes | No | Yes | No | No | No | No |
| Netfinity 4000R | No | No | No | No | No | No | No | No | No | No | No | No |
| Netfinity 4500R | No | No | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | No | No |
| Netfinity 5000 | No | Yes | Yes | Yes | Yes | Yes | No | Yes | No | Yes | No | No |
| Netfinity 5100 | No | No | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | No | No |
| Netfinity 5500 family* | No | Yes | Yes | Yes | Yes | No | No | No | No | No | No | No |
| Netfinity 5600 | No | No | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | No | No |
| Netfinity 6000R | No | No | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | No | No |
| Netfinity 7000 | No | Yes | Yes | Yes | Yes | No | No | No | No | No | No | No |
| Netfinity 7000 M10 | No | Yes | Yes | Yes | Yes | No | No | No | No | Yes | No | No |
| Netfinity 7100 | No | No | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | No | No |
| Netfinity 7600 | No | No | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | No | No |
| Netfinity 8500R | No | No | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | No | No |
* The Netfinity 5500, 5500 M10, and 5500 M20 have a ServeRAID-II controller built in on the server's planar. Two internal connectors: one to the internal hot-swap backplane and one that can be routed externally using an optional cable 03K9313.
IBM eServer xSeries servers
Note: RAID controllers newer than the ones shown in the table are not supported.
Table 12. Supported IBM eServer xSeries servers
xSeries | SR | II | 3L | 3H | 3HB | 4L | 4Lx | 4M | 4Mx | 4H | 5i | 6M | 6i | 6i+ | 7t | 7e | 7k | 8i | 8e | 8k-l | 8k | 8s |
x130 Value | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No |
x130 Perf | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No |
x135 Value | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No |
x135 Perf | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No |
x150 | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No |
x200 (8478) | No | No | No | No | No | Y | Y | Y | Y | No | No | No | No | No | No | No | No | No | No | No | No | No |
x200 (8479) | No | No | No | No | No | Y | Y | Y | Y | Y | No | No | No | No | No | No | No | No | No | No | No | No |
x205 | No | No | No | No | No | No | Y | No | Y | No | No | No | No | No | No | No | No | No | No | No | No | No |
x206 | No | No | No | No | No | No | Y | No | No | No | No | Y | No | Y | Y | Y | No | No | No | No | No | No |
x206m | No | No | No | No | No | No | No | No | No | No | No | Y | No | No | Y | No | No | Y | Y | No | No | No |
x220 (8645) | No | No | No | No | No | Y | Y | Y | Y | No | No | No | No | No | No | No | No | No | No | No | No | No |
x220 (8646) | No | No | No | No | No | Y | Y | Y | Y | Y | No | No | No | No | No | No | No | No | No | No | No | No |
x225 (8647) | No | No | No | No | No | No | Y | No | Y | Y | Y | Y | No | Y | No | No | No | No | No | No | No | No |
x225 (8649) | No | No | No | No | No | No | Y | No | Y | Y | Y | Y | Y | Y | No | No | No | No | No | No | No | No |
x226 | No | No | No | No | No | No | No | No | No | No | No | Y | No | Y | Y | Y | No | No | No | No | No | No |
x230 | No | No | Y | Y | Y | Y | Y | Y | Y | Y | No | No | No | No | No | No | No | No | No | No | No | No |
x232 | No | No | No | No | No | Y | Y | Y | Y | Y | No | No | No | No | No | No | No | No | No | No | No | No |
x235 | No | No | No | No | No | No | Y | No | Y | Y | Y | Y | Y | Y | No | No | No | No | No | No | No | No |
x236 | No | No | No | No | No | No | No | No | No | No | No | Y | No | No | No | Y | Y | No | No | No | No | No |
x240 | No | No | Y | Y | Y | Y | Y | Y | Y | Y | No | No | No | No | No | No | No | No | No | No | No | No |
x250 | No | No | Y | Y | Y | Y | Y | Y | Y | Y | No | No | No | No | No | No | No | No | No | No | No | No |
x255 | No | No | No | No | No | Y | Y | Y | Y | Y | No | Y | No | No | No | No | No | No | No | No | No | No |
x260 | No | No | No | No | No | No | No | No | No | No | No | Y | No | No | No | No | No | Y | No | No | No | No |
x300 | No | No | No | No | No | Y | Y | Y | Y | Y | No | No | No | No | No | No | No | No | No | No | No | No |
x305 | No | No | No | No | No | No | Y | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No |
x306 | No | No | No | No | No | No | Y | No | No | No | No | No | No | Y | Y | Y | Y | No | No | No | No | No |
x306m | No | No | No | No | No | No | No | No | No | No | No | No | No | No | Y | No | No | Y | Y | No | No | No |
xSeries server | SR | II | 3L | 3H | 3HB | 4L | 4Lx | 4M | 4Mx | 4H | 5i | 6M | 6i | 6i+ | 7t | 7e | 7k | 8i | 8e | 8k-l | 8k | 8s |
x330 (8654) | No | No | Y | No | Y | Y | Y | Y | Y | Y | No | No | No | No | No | No | No | No | No | No | No | No |
x330 (8674) | No | No | Y | No | No | Y | Y | Y | Y | Y | No | No | No | No | No | No | No | No | No | No | No | No |
x330 (8675) | No | No | No | No | No | Y | Y | Y | Y | Y | No | No | No | No | No | No | No | No | No | No | No | No |
x335 | No | No | No | No | No | No | Y | No | Y | Y | No | Y | No | No | No | No | No | No | No | No | No | No |
x336 | No | No | No | No | No | No | No | No | No | No | No | Y | No | Y | Y | No | No | No | No | No | No | No |
x340 | No | No | Y | Y | Y | Y | Y | Y | Y | Y | No | No | No | No | No | No | No | No | No | No | No | No |
x342 | No | No | No | No | No | Y | Y | Y | Y | Y | No | No | No | No | No | No | No | No | No | No | No | No |
x343 | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No |
x345 | No | No | No | No | No | No | Y | No | Y | No | Y | Y | Y | Y | No | No | No | No | No | No | No | No |
x346 | No | No | No | No | No | No | No | No | No | No | No | Y | No | No | No | Y | Y | No | No | No | No | No |
x350 | No | No | Y | Y | Y | Y | Y | Y | Y | Y | No | No | No | No | No | No | No | No | No | No | No | No |
x360 | No | No | No | No | No | Y | Y | Y | Y | Y | No | Y | No | No | No | No | No | No | No | No | No | No |
x365 | No | No | No | No | No | No | Y | No | Y | Y | No | Y | Y | Y | No | No | No | No | No | No | No | No |
x366 | No | No | No | No | No | No | No | No | No | No | No | Y | No | No | No | No | No | Y | No | No | No | No |
x370 | No | No | Y | Y | Y | Y | Y | Y | Y | Y | No | No | No | No | No | No | No | No | No | No | No | No |
x380 | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No | No |
x382 | No | No | No | No | No | No | Y | No | Y | No | No | Y | No | No | No | No | No | No | No | No | No | No |
x440 | No | No | No | No | No | No | Y | No | Y | Y | No | Y | No | No | No | No | No | No | No | No | No | No |
x445 | No | No | No | No | No | No | Y | No | Y | Y | No | Y | No | No | No | No | No | No | No | No | No | No |
x450 | No | No | No | No | No | No | No | No | Y | No | No | Y | No | No | No | No | No | No | No | No | No | No |
x455 | No | No | No | No | No | No | No | No | Y | No | No | Y | No | No | No | No | No | No | No | No | No | No |
x460 & MXE-460 | No | No | No | No | No | No | No | No | No | No | No | Y | No | No | No | No | No | Y | No | No | No | No |
xSeries server | SR | II | 3L | 3H | 3HB | 4L | 4Lx | 4M | 4Mx | 4H | 5i | 6M | 6i | 6i+ | 7t | 7e | 7k | 8i | 8e | 8k-l | 8k | 8s |
IBM eServer systems
Note: RAID controllers newer than the ones shown in the table are not supported.
Table 13. Supported IBM eServer systems
| Server | SR | II | 3L | 3H | 3HB | 4L | 4Lx | 4M | 4Mx | 4H | 5i | 6M | 6i | 6i+ | 7t | 7e | 7k | 8i | 8e | 8k-l | 8k | 8s |
| eServer 325 | No | No | No | No | No | No | Yes | No | No | No | No | Yes | No | No | No | No | No | No | No | No | No | No |
| eServer 326 | No | No | No | No | No | No | Yes | No | No | No | No | Yes | No | No | Yes | No | No | No | No | No | No | No |
| eServer 326m | No | No | No | No | No | No | No | No | No | No | No | Yes | No | No | Yes | No | No | No | No | No | No | No |
IBM System x servers
Note: RAID controllers older than the ones shown in the table are not supported.
Table 14. Supported IBM System x servers (Part 1)
| Server | 6M | 6i | 6i+ | 7t | 7e | 7k | 8i | 8e | 8k-l | 8k | 8s |
| x3100 M3 | N | N | N | N | N | N | N | N | N | N | N |
| x3105 | N | N | N | Y | N | N | N | N | N | N | N |
| x3200 | N | N | N | N | N | N | N | N | N | N | Y |
| x3200 M2 | N | N | N | N | N | N | N | N | N | N | N |
| x3200 M3 | N | N | N | N | N | N | N | N | N | N | N |
| x3250 SATA | N | N | N | N | N | N | N | N | N | N | N |
| x3250 SAS/SATA | N | N | N | N | N | N | N | N | N | N | Y |
| x3250 M2 | N | N | N | N | N | N | N | N | N | N | N |
| x3250 M3 | N | N | N | N | N | N | N | N | N | N | N |
| x3350 | N | N | N | N | N | N | N | N | N | N | N |
| x3400 SATA | N | N | N | N | N | N | N | Y | N | Y | Y |
| x3400 SAS/SATA | N | N | N | N | N | N | N | N | Y | Y | Y |
| x3400 M2 | N | N | N | N | N | N | N | N | N | N | N |
| x3400 M3 | N | N | N | N | N | N | N | N | N | N | N |
| x3450 | N | N | N | N | N | N | N | N | N | N | N |
| x3455 | N | N | N | N | N | N | N | N | N | N | Y |
| x3500 | N | N | N | N | N | N | N | N | N | N | Y |
| x3500 M2 | N | N | N | N | N | N | N | N | N | N | N |
| x3500 M3 | N | N | N | N | N | N | N | N | N | N | N |
| x3550 SATA | N | N | N | N | N | N | N | Y | N | Y | N |
| x3550 SAS/SATA | N | N | N | N | N | N | N | N | Y | Y | N |
| x3550 M2 | N | N | N | N | N | N | N | N | N | N | N |
| x3550 M3 | N | N | N | N | N | N | N | N | N | N | N |
| x3610 | N | N | N | N | N | N | N | N | N | N | N |
| x3620 M3 | N | N | N | N | N | N | N | N | N | N | N |
| x3650 | Y | N | N | N | N | N | N | N | Y | Y | Y |
| x3650 T | N | N | N | N | N | N | N | N | N | N | N |
| x3650 M2 | N | N | N | N | N | N | N | N | N | N | N |
| x3650 M3 | N | N | N | N | N | N | N | N | N | N | N |
| x3655 | N | N | N | N | N | N | N | Y | Y | Y | N |
| x3690 X5 | N | N | N | N | N | N | N | N | N | N | N |
| x3755 | N | N | N | N | N | N | N | N | N | Y | Y |
| x3800 | Y | N | N | N | N | N | Y | N | N | N | Y |
| x3850 | Y | N | N | N | N | N | Y | N | N | N | Y |
| x3850 M2 | N | N | N | N | N | N | N | N | N | N | N |
| x3850 X5 | N | N | N | N | N | N | N | N | N | N | N |
| x3950 / E | Y | N | N | N | N | N | Y | N | N | N | N |
| x3950 M2 | N | N | N | N | N | N | N | N | N | N | N |
| x3850 X5 | N | N | N | N | N | N | N | N | N | N | N |
| x3950 X5 | N | N | N | N | N | N | N | N | N | N | N |
Table 14. Supported IBM System x servers (Part 2)
| Server | SAS HBA | MR 8480 | MR 10is | MR 10k | BR 10il | 3 Gb SAS HBA | MR 10M | MR 10i | BR 10i | B5015 |
| x3100 M3 | N | N | N | N | N | N | N | N | N | N |
| x3105 | Y* | N | N | N | N | N | N | N | N | N |
| x3200 | Y* | N | N | N | N | N | N | N | N | N |
| x3200 M2 | Y* | N | Y | N | Y | Y† | N | Y | N | N |
| x3200 M3 | N | N | Y | N | N | Y† | Y | Y | N | N |
| x3250 SATA | Y* | N | N | N | N | N | N | N | N | N |
| x3250 SAS/SATA | Y* | N | N | N | N | N | N | N | N | N |
| x3250 M2 | Y* | N | Y | N | Y | Y† | Y | Y** | N | N |
| x3250 M3 | N | N | Y | N | N | Y† | Y | Y** | N | N |
| x3350 | Y* | N | Y | N | Y | Y† | Y | Y | N | N |
| x3400 SATA | Y* | N | N | N | N | Y† | Y | Y | N | N |
| x3400 SAS/SATA | Y* | N | Y | N | N | Y† | Y | Y | N | N |
| x3400 M2 | N | N | Y | N | N | Y† | Y | Y | Y | N |
| x3400 M3 | N | N | N | N | N | Y† | Y | Y | Y | N |
| x3450 | N | N | N | N | N | N | N | N | N | N |
| x3455 | Y* | N | N | N | N | Y† | N | N | N | N |
| x3500 | Y* | Y | Y | N | N | Y† | Y | Y | N | N |
| x3500 M2 | N | N | Y | N | N | Y† | Y | Y | Y | N |
| x3500 M3 | N | N | N | N | N | Y† | Y | Y | Y | N |
| x3550 SATA | Y* | Y | N | N | N | Y† | Y | Y | N | N |
| x3550 SAS/SATA | Y* | Y | Y | N | N | Y† | Y | Y | N | N |
| x3550 M2 | N | N | Y | N | N | Y† | Y | Y | Y | Y |
| x3550 M3 | N | N | N | N | N | Y† | Y | Y | Y | Y |
| x3610 | N | N | N | N | N | N | N | N | N | N |
| x3620 M3 | N | N | N | N | N | Y† | N | N | N | N |
| x3650 | Y* | Y | Y | N | N | Y† | Y | Y | N | N |
| x3650 T | N | N | N | N | N | N | N | N | N | N |
| x3650 M2 | N | N | Y | N | N | Y† | Y | Y | Y | Y |
| x3650 M3 | N | N | N | N | N | Y† | Y | Y | Y | Y |
| x3655 | Y* | N | N | N | N | Y† | N | N | N | N |
| x3690 X5 | N | N | N | N | N | Y† | N | N | Y | N |
| x3755 | Y* | Y | N | N | N | Y† | Y | N | N | N |
| x3800 | N | Y | N | N | N | N | N | N | N | N |
| x3850 | N | Y | N | N | N | N | N | N | N | N |
| x3850 M2 | Y* | N | Y‡ | Y | N | Y† | Y | N | N | N |
| x3850 X5 | N | N | N | N | N | Y† | N | N | Y | N |
| x3950 / E | N | N | N | N | N | N | N | N | N | N |
| x3950 M2 | Y* | N | Y‡ | Y | N | Y† | Y | N | N | N |
| x3850 X5 | N | N | N | N | N | Y† | N | N | Y | Y |
| x3950 X5 | N | N | N | N | N | Y† | N | N | Y | Y |
** The ServeRAID MR10i is only supported on models of the x3250 M2/M3 with 2.5" drive bays. The MR10i is not supported on models with 3.5" drive bays.
§ The ServeRAID MR10il is available in China, Korea, Hong Kong, Taiwan, India and ASEAN countries.
† The IBM 3Gb SAS HBA v2 supports disk connectivity on the x3455 only. All other supported systems support tape connectivity only.
‡ The ServeRAID MR10is is supported on the x3850 M2 and x3950 M2 machine type 7141 only, not type 7233
IBM iDataPlex servers
Note: RAID controllers older than the ones shown in the table are not supported.
Table 15. Supported IBM iDataPlex servers
| Server | SAS HBA | MR 8480 | MR10is | MR10k | BR10il | 3 Gb SAS HBA | MR10M | MR10i | BR10i |
| dx320 | N | N | N | N | N | N | N | N | N |
| dx340 | N | N | N | N | N | N | N | Y | Y |
| dx360 | N | N | N | N | N | N | N | N | Y |
| dx360 M2 | N | N | N | N | Y | N | N | Y | Y |
| dx360 M3 | N | N | N | N | Y | N | N | N | N |
IBM BladeCenter servers and expansion blades
Note: RAID controllers other than the ones shown in the table are not supported.
Table 16: Supported IBM BladeCenter servers and expansion blades
| Server | 6M | 8k-l | 8k | MR10ie |
| HS12 8014 | No | No | No | No |
| HS12 8028 | No | No | No | Yes |
| HS20 8843 | Yes‡ | No | No | No |
| HS21 | Yes‡ | Yes† | Yes† | No |
| HS21 XM | Yes‡ | Yes† | Yes† | No |
| HS22 | No | No | No | Yes |
| HS22V | No | No | No | Yes |
| LS21 | No | Yes† | Yes† | No |
| LS22 | No | No | No | No |
| LS41 | No | Yes† | Yes† | No |
| LS42 | No | No | No | No |
| SIO 39R7563 | No | Yes | Yes | No |
| PEU2 25K8373 | Yes | No | No | No |
† With the addition of the BladeCenter Storage and I/O (SIO) Expansion Unit, 39R7563
* With the addition of the BladeCenter PCI Express I/O Expansion Unit, 43W4391
Special Notices
This material has not been submitted to any formal IBM test and is published AS IS. It has not been the subject of rigorous review. IBM assumes no responsibility for its accuracy or completeness. The use of this information or the implementation of any of these techniques is a client responsibility and depends upon the client's ability to evaluate and integrate them into the client's operational environment.
