HP ProLiant DL360 Generation 5 (G5)

Retired
Overview

HP ProLiant DL360 Generation 5 (G5)

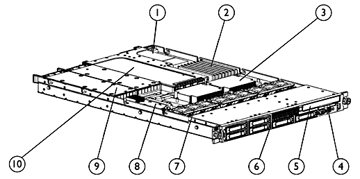

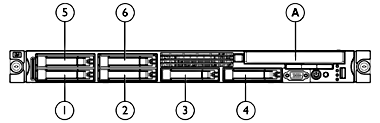

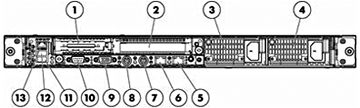

Front View:Rear View:
1. Low-profile x8 PCI-Express slot1. PCI Express expansion slot 1, low-profile, half-length
2.Eight PC2-5300 FB-DIMMs (DDR2 667) slots2.PCI Express expansion slot 2
3. Up to two Intel Quad-Core or Dual-Core Xeon� processors3. Power supply bay 2
4. Slide-out System Insight Display4. Power supply bay 1
5.
Slimline removable media bay
5.
NIC 2 connector
6.Up to six SAS/SATA hot plug drive bays
6.
NIC 1 connector
7. Removable fans for easy serviceability
7.
Keyboard connector
8.Choice of Smart Array P400i Controller or Smart Array E200i Controller8.Mouse connector
9.Video connector
9.Redundant Hot Plug Power Supplies (upgradeable option)10.Serial connector
10.Full length/height x8 PCI-Express Slot (optional PCI-X)11.USB connector
 12.USB connector
13.iLO 2 NIC connector
What's New
  • The HP ProLiant DL360 G5 is now available with the latest Intel processor refresh (Quad-Core X5470 3.33GHz, 120W & L5430 2.66GHz, 50W)
At A Glance
Combining concentrated 1U compute power, integrated Lights-Out management, and essential fault tolerance, the HP ProLiant DL360 is optimized for space constrained installations. Quad or Dual-core Xeon processors, DDR2 Fully Buffered DIMMs, Serial Attached SCSI (SAS) and PCI Express technology provide a high performance system ideal for the full range of scale out applications. What's more, the HP ProLiant DL360 G5 steps up the fault tolerant in an ultra dense platform with redundant power, redundant fans, mirrored memory or online spare memory, embedded RAID capability, and full-featured remote Lights-Out management.
  • Processors:
    • Up to 2 Quad-Core or Dual-Core Intel® Xeon® processor 5100 sequence
    • Up to 2 Quad-Core Intel® Xeon® processor 5400/5300 sequence
    • Up to 2 Dual-Core Intel® Xeon® processor 5200 sequence
    • Intel® 5000P chipset supporting up to a 1333MHz Front Side Bus (FSB)
  • Memory:
    • Up to 64 GB of memory, supported by 8 slots of PC2-5300 Fully Buffered DIMMs (DDR2-667); 4:1 interleaving; memory mirroring; online spare
  • Storage Controller:
    • Performance Models: HP Smart Array P400i/256MB BBWC Controller (RAID 0/1/1+0/5/6) (512MB BBWC optional)
    • High Efficiency and Base Models: HP Smart Array P400i/256MB Controller (RAID 0/1/1+0/5) (512MB BBWC optional)
    • Entry Models: HP Smart Array E200i/64MB Controller (RAID 0/1/1+0) (128MB BBWC optional)
  • Internal Drive Support:
    • Up to (6) small form factor (SFF) hot-plug drive bays
    • Slimline media bay supporting DVD, CD or Floppy drive
  • Network Controller:
    • Two embedded NC373i Multifunction Gigabit Network Adapters with TCP/IP Offload Engine, including support for Accelerated iSCSI through an optional Licensing Kit
  • Expansion Slots:
    • Two PCI-Express expansion slots: (1) full-length, full-height slot; (1) low-profile slot (optional PCIx riser supported)
  • USB 2.0 Ports:
    • 4 Total: (1) front, (1) internal and (2) rear accessible ports
  • Redundancy:
    • Multiple layers of fault tolerance through critical component redundancy (power supply and fan redundancy), mirrored memory, embedded RAID capability, and full-featured remote Lights-Out management
  • Infrastructure Management:
    • Convenient slide-out Systems Insight Display for quick and easy front view server diagnostics, along with status LEDs, Automatic Server Recovery (ASR), ROM Based Setup Utility (RBSU)
    • HP ProLiant Onboard Administrator (powered by the HP Integrated Lights-Out 2 management processor) for simplified server setup, health monitoring and recovery, power and thermal control, and lights-out remote administration.
    • HP Insight Control a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, control and optimize your IT infrastructure through a single, simple management console. Insight Control supports both Windows and Linux-based central management servers.
    • HP Insight Dynamics for ProLiant, a product option, is an integrated command center that enables IT Staff personnel to continuously analyze and optimize a converged infrastructure, while automating and reducing the cost of common data center tasks by as much as 40 percent. This ultimately enables them to dynamically keep pace with the organization's changing business requirements.
  • Form Factor:
    • 1U Rack form factor (1.75"), less than 28 inches (70.5 cm) deep
  • Operating Systems and Virtualization Software Support for ProLiant Servers:
    • Supports Windows, RHEL, SLES, OEL, Solaris, VMware, NetWare & HP Citrix Essentials for XenServer
  • Deployment/Serviceability:
    • Sliding rails for in rack servicing ship standard; optional 1U Cable Management Arm
    • Customer Self Repair (CSR): HP products are designed with many CSR parts to minimize repair time and allow for greater flexibility in performing defective parts replacement
  • Warranty:
    • This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
      NOTE: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have HP replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
Standard Features
NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
Processor
One of the following depending on Model		Quad-Core Processors
Quad-Core Intel® Xeon® Processor X5470 (3.33 GHz, 120 Watts, 1333 FSB)
Quad-Core Intel® Xeon® Processor X5460 (3.16 GHz, 120 Watts, 1333 FSB)
Quad-Core Intel® Xeon® Processor X5450 (3.00 GHz, 120 Watts, 1333 FSB)
Quad-Core Intel® Xeon® Processor E5450 (3.00 GHz, 80 Watts, 1333 FSB)
Quad-Core Intel® Xeon® Processor E5440 (2.83 GHz, 80 Watts, 1333 FSB)
Quad-Core Intel® Xeon® Processor E5430 (2.66 GHz, 80 Watts, 1333 FSB)
Quad-Core Intel® Xeon® Processor E5420 (2.50 GHz, 80 Watts, 1333 FSB)
Quad-Core Intel® Xeon® Processor L5430 (2.66 GHz, 50 Watts, 1333 FSB)
Quad-Core Intel® Xeon® Processor L5420 (2.50 GHz, 50 Watts, 1333 FSB)
Quad-Core Intel® Xeon® Processor E5410 (2.33 GHz, 80 Watts, 1333 FSB)
Quad-Core Intel® Xeon® Processor E5405 (2.00 GHz, 80 Watts, 1333 FSB)
Quad-Core Intel® Xeon® Processor L5410 (2.33 GHz, 50 Watts, 1333 FSB)
Quad-Core Intel® Xeon® Processor E5345 (2.33 GHz, 80 Watts, 1333 FSB)
Quad-Core Intel® Xeon® Processor E5320 (1.86 GHz 80 Watts, 1066 FSB)
Quad-Core Intel® Xeon® Processor L5320 (1.86 GHz 50 Watts, 1066 FSB)
Quad-Core Intel® Xeon® Processor E5310 (1.60 GHz 80 Watts, 1066 FSB)
Dual-Core Processors
Dual-Core Intel® Xeon® Processor X5260 (3.33 GHz, 80 Watts, 1333 FSB)
Dual-Core Intel® Xeon® Processor L5240 (3.00 GHz, 40 Watts, 1333 FSB)
Dual-Core Intel® Xeon® Processor E5205 (1.86 GHz, 65 Watts, 1066 FSB)
Dual-Core Intel® Xeon® Processor 5160 (3.0 GHz, 80 Watts, 1333 FSB)
Dual-Core Intel® Xeon® Processor 5150 (2.67 GHz, 65 Watts, 1333 FSB)
Dual-Core Intel® Xeon® Processor 5148 (2.33 GHz, 40 Watts, 1333 FSB, Low Voltage)
Dual-Core Intel® Xeon® Processor 5140 (2.33 GHz, 65 Watts, 1333 FSB)
Dual-Core Intel® Xeon® Processor 5130 (2.0 GHz, 65 Watts, 1333 FSB)
Dual-Core Intel® Xeon® Processor 5120 (1.86 GHz, 65 Watts, 1066 FSB)
Dual-Core Intel® Xeon® Processor 5110 (1.6 GHz, 65 Watts, 1066 FSB)
NOTE: Up to 2 processors supported. Performance configurations include two processors.
NOTE: Intel® 5400/5300 sequence processors are 64-bit, Quad-Core, and supports Intel VT technology. Intel® 5200/5100 sequence processors are 64-bit, Dual-Core, and supports Intel VT technology.
Cache Memory
One of the following depending on Model
12MB (2 x 6MB) Level 2 cache (5400 sequence)
8MB (2 x 4MB) Level 2 cache (5300 sequence)
6MB (1x 6MB) Level 2 cache (5200 sequence)
4MB (1 x 4MB) Level 2 cache (5100 sequence)
4MB (2 x 2MB) Level 2 cache (5000 sequence)
Upgradeability Upgradeable to quad or dual processing
NOTE: Future upgradeable to Xeon® Series 5400/5300 Quad-Core processors (Please contact your regional sales support to determine quad core upgradeability. Some of the earlier shipping models may not support this upgrade). 5100 Dual-Core models are not upgradeable to the 5200 Dual-Core processors.
ChipsetIntel® 5000P chipset
NOTE: For more information regarding Intel® chipsets, please see the following URL:
http://www.intel.com/products/server/chipsets/.
Memory Protection & FunctionalityAdvanced ECC (multi-bit error protection), Online Spare, Mirroring
4-way interleaving
Memory Type PC2-5300 Fully Buffered DIMMs (DDR2-667)
Standard (Entry or Base Models) 1 GB (2 x 512 MB)
Standard (Performance Models) 2 GB (2 x 1 GB)
Standard (Performance Model) 4 GB (4 x 1 GB)
Maximum 64 GB (8 x 8 GB)
NOTE: Memory DIMMs in systems with the Front Side Bus (FSB) running at 1333 MHz will run at 667 MHz and in systems with a FSB running at 1066 MHz or 667 MHz the memory DIMMs will run at 533 MHz.
Network Controller

Two embedded NC373i Multifunction Gigabit Network Adapters with TCP/IP Offload Engine, including support for Accelerated iSCSI through an optional Licensing Kit

Expansion Slots Expansion Slot # TechnologyBus Width**Connector WidthBus Number* Form FactorNotes
1PCI-e x4 x811Low profile slot
2PCI-ex8x819Full length, full height slot
2PCI-X
(133 MHz, 3.3 Voltage)		64-bitx816  PCI-X is supported with an optional PCI riser cage (also supports PCI-e x8 low profile)
* Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus assignment number
** Indicates the number of physical electrical lanes running to the connector.
Storage Controller
One of the following depending on Model		 Performance Models: HP Smart Array P400i/256MB BBWC Controller (RAID 0/1/1+0/5/6) Available upgrades: 512MB memory battery-backed write cache (BBWC) module for RAID 0/1/1+0/5/6.
High Efficiency and Base Models: HP Smart Array P400i/256MB Controller (RAID 0/1/1+0/5)
Available upgrades: 512MB memory battery for battery-backed write cache (BBWC) module for RAID 0/1/1+0/5/6, or battery-backed write cache for RAID 0/1/1+0/5/6.
Entry Models: HP Smart Array E200i/64MB Controller (RAID 0/1/1+0)
Available upgrades: 128MB memory battery for battery-backed write cache (BBWC) module for RAID 0/1/1+0/5.
StorageOptical Drives
(Slimline Drive bay)
 Optional DVD-ROM, DVD/CD-RW Combo (standard in performance models), DVD-RW, or Slimline floppy drive
Drive Bays Up to 6 Small Form Factor bays total
NOTE: 4 bays active in most models. Smart Array P400i controller and Mini-SAS storage cable (P/N 399546-B21) required for activation of 5th and 6th drive bays.
Maximum Internal Storage Type Hot Plug SAS 1.8TB SAS 6 x 300GB
Hot Plug SATA 3.0TB SATA 6 x 500GB
InterfacesKeyboard1
Mouse1
Serial1
Video1
USB 2.0 Ports 4 total: 2 rear, 1 front, 1 internal
NOTE: Please see the following URL for additional information regarding USB support:
http://h18004.www1.hp.com/products/servers/platforms/usb-support.html.
Network RJ-452
iLO 2 remote
management port		1
Graphics

Integrated ATI ES1000, 32MB video standard

  • 16 bit color: maximum resolution of 1600 x 1200
  • 32 bit color: maximum resolution of 1280 x 1024

NOTE: Maximum resolution available via iLO 2 remote console is 1280x1024.

Form Factor Rack (1U), (1.75 in/4.45 cm); 27.75 inch depth (70.5cm)
HP Insight management software HP Insight Foundation

Managing the growing number of servers can be complex and expensive for your organization. IT managers need to address changing business needs with tools that meet the challenges of managing today's complex Datacenters.

HP provides management solutions that are designed to simplify a server's installation, configuration and maintenance throughout the entire server lifeccyle. This provides the customer with higher levels of operational efficiency and highly reliable systems: www.hp.com/go/foundation.

The foundation pack includes:

  • HP SmartStart
  • HP Management
  • HP ProLiant Firmware Maintenance

SmartStart version supported (minimum): SmartStart 7.60.
http://www.hp.com/servers/smartstart
ProLiant Onboard Administrator HP ProLiant Onboard Administrator (powered by the HP Integrated Lights-Out 2 management processor) simplifies server setup, health monitoring, power and thermal control, and lights-out remote administration of ProLiant ML, DL, and BL servers. HP ProLiant Onboard Administrator functions without additional software, and can be accessed from any location via a web browser. It works hand-in-hand with HP Systems Insight Manager, Insight Control suites, and the Insight Dynamics for ProLiant helping customers unlock the value of the ProLiant platform and deliver the highest possible quality of IT service to the business. See www.hp.com/go/ProLiantOA
HP Insight Control HP Insight Control, a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console.

Two versions of Insight Control are available, to serve environments requiring either a Linux-based or a Windows-based central management server: HP Insight Control for Linux, and HP Insight Control. See www.hp.com/go/insightcontrol

HP Insight Control includes one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, please visit: http://www.hp.com/services/insight.
HP Insight Dynamics for ProLiant HP Insight Dynamics for ProLiant, a product option, is an integrated command center that enables IT Staff personnel to continuously analyze and optimize a converged infrastructure, while automating and reducing the cost of common data center tasks by as much as 40 percent. As a powerfully integrated by design toolkit to accelerate complex technology projects and simplify daily operations that ultimately enable IT Staff personnel to dynamically keep pace with the organizations changing business requirements. It enables them to plan capacity and power continuously, balance across physical and virtual resources, and ensure cost-effective high availability. It also enables IT organizations to provision infrastructure consistently and automatically from pools of shared resources using a self-service portal. Resources provisioned can range from a single virtual machine to complex multi-tier environments and their associated physical and virtual resource requirements. In addition to the previous functional benefits, it also provides a cost-effective disaster recovery for physical and virtual environments that works with HP StorageWorks Continuous Access software for both the Enterprise Virtual Array and the XP storage array allowing application environments to be reactivated in minutes with the touch of a button to a remote location.

NOTE: For more information, visit:
http://www.hp.com/go/insightdynamics
Industry Standard Compliance ACPI 2.0b Compliant
PCI 2.2 Compliant
WOL Support
Microsoft® Logo certifications
PXE Support
USB 1.1 and 2.0 Compliant
Intelligent Manageability HP Systems Insight Manager
SmartStart
ROM-Based Setup Utility (RBSU)
Remote-Flash Redundant ROM
Integrated Management Log (IML)
Server Health logging
Automatic Server Recovery-2 (ASR-2)
System Insight Display (SID)
Dynamic sector repairing and drive parameter tracking (with Smart Array controllers)
Hot Spare Boot
NOTE: Upon the event of a failed processor or VRM in a multi-processing environment, the system will automatically reboot and use the remaining good processor(s).
Power Down Utility
Pre-Failure Warranty (covers processors, as well as SAS hard drives and memory)
SecurityPower-on password
Keyboard password
Diskette drive control
Diskette boot control
QuickLock, Network Server Mode
Removable CD and Diskette Drive Assembly
Serial interface control
Administrator's password
Integrated Lights-Out has 12 customizable user accounts and SSL encryption
Integrated Lights-Out can be disabled via a Global Setting
iLO Advance Pack supports directory services integration and two-factor authentication
Server Power Cords High voltage power cord ships standard with all part numbers. Localized cables included with geographic specific models in other world regions.
NOTE: ProLiant DL servers no longer ship standard with NEMA power cords (187335-001) that allow connection to 110V US wall outlets in a home or office. ProLiant DL servers are primarily connected to PDU's in data center racks so they now ship standard with only a PDU power cord (416151-B21). If a user wishes to power a ProLiant DL server using a 110V receptacle (NEMA-15), the above NEMA power cord must be ordered separately.
UPS and PDU Power Cord Matrix Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page. Under Power Cords, click on the "HP Power Cord Matrix" link. That link will list cable descriptions, requirements, and specifications for UPS and PDU units. Please see the following link: www.hp.com/products/powercords.
Power Supply 700W, Optional (1+ 1 redundant) power supply
NOTE: PN 399542-B21 contains the optional power supply and an IEC power cable only; purchase if connecting to PDU/UPS that supports IEC cables. PN 399542-291 includes IEC power cable and a Japan power cable.
System Fans9 fans ship standard; N+1 fan redundancy standard
Required CablingFor required cabling information, refer to the Web site at: http://h18000.www1.hp.com/products/servers/proliantdl360/.
Operating Systems and Virtualization Software Support for ProLiant Servers Microsoft Windows Server
Microsoft Windows Server Hyper V
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Oracle Enterprise Linux (OEL)
Solaris 10 for x86/x64 based Systems
NetWare
VMware
Citrix Essentials for XenServer
NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server, please visit our Support Matrix at: http://www.hp.com/go/ossupport and our driver download page www.hp.com/support/DL360G5.
Rack Airflow Requirements Rack 10000 G2 series Cabinets
The increasing power of new high-performance processor technology requires increased cooling efficiency for rack-mounted servers. The 10000 G2 Series Racks provide enhanced airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.

CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow and to prevent damage to the equipment:

  • Front and rear doors: If your 42U server rack includes closing front and rear doors, you must allow 830 square inches (5,350 sq cm) of hole evenly distributed from top to bottom to permit adequate airflow (equivalent to the required 64 percent open area for ventilation).
  • Side: The clearance between the installed rack component and the side panels of the rack must be a minimum of 2.75 inches (7 cm).

CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to thermal damage.

NOTE: For additional information, refer to the Setup and Installation Guide or the Documentation CD provided with the server, or to the server documentation located in the Support section at the following URL: www.hp.com/servers/dl360.
Rack Kit Quick deploy rail system provides tool-free support for racks with square or round mounting holes (including Compaq/HP 7000, 9000, 10000 G2 and HP series), with an adjustment range of 24" - 36". The ambidextrous cable management arm can be mounted on either the left or right side for improved cable management.
Telco Rack Support

Support for all 2-post Telco racks requires the use of the standard rack kit and an additional option kit from Rack Solutions at: http://www.hp.com/go/rackandpower

Factory Express Portfolio for Servers and Storage

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.

HP Enterprise Configurator The HP eConfigure-Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance.
http://www.hp.com/products/configurator
Service and Support

HP Care Pack services provide total care and support expertise with committed response designed to meet your IT and business needs.

HP Care Pack services include coverage for the HP branded hardware options qualified for the server and purchased at the same time or afterward that are internal to the enclosure. This also includes the 22" and smaller external monitors and tower UPS options up to 3kVA. These items will be covered at the same service level and for the same coverage period as the server. Coverage of UPS Battery is not included, and standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

To fully capitalizing on your HP ProLiant servers' capabilities requires a service partner who thoroughly understands your server technology and systems environment. HP Services, an industry leader in provision of multi vender support solutions, provides a range of support services designed to meet the varying needs of your business. Whether an SMB, or large global corporation, HP has a ProLiant server support offer to help you speedily deploy and maximize system uptime.

Recommended Service - simplify ProLiant solution implementation, maintenance, and management.

  • Support - 3-Year 4-Hour response 24x7 Same Business Day Coverage only
  • Deployment Service - Installation and Start up only

Enhanced Service - optimize service level to increase IT performance and availability.

  • Support - 3-Year Support Plus 24 only

Refer to the information on "Installation & Start-Up" for service on ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet; to be delivered on a scheduled basis 8am-5pm, M-F, excluding HP holidays.

NOTE: For a complete listing of service offerings and information visit:
http://www.hp.com/services/proliantservices
http://www.hp.com/go/proliant/carepack

Models
NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models" section.
Models

HP DL360 G5 Performance Models

Quad-Core Models
DL360R05 E5450 4GB
490666-xx1

 Processor(s) (2) Quad-Core Intel® Xeon® Processors E5450 (3.00 GHz, 80 Watts, 1333 FSB)
Cache Memory 12MB (2 x 6MB) Level 2 cache; Intel Xeon Processor 5400 Sequence
Memory 4 GB (4 x 1 GB) Standard; PC2-5300 Fully Buffered DIMMs (DDR2-667)
Network ControllerTwo embedded NC373i Multifunction Gigabit Server Adapters
Storage ControllerHP Smart Array P400i/256MB BBWC Controller (RAID 0/1/1+0/5/6)
Hard DriveNo drives included; (6) drive bays active
Internal Storage 1.8TB SAS; 1.50TB SATA
Optical DriveSlimline DVD/CD-RW Combo drive
PCI-Express Slots1 full-length x8 PCI-Express slot
1 low-profile x8 PCI-Express slot
Power Supplies(2) 700W power supplies, redundant
Fans9 total, redundancy standard
Form FactorRack (1U), (1.75 in/4.45 cm); 27.75 inch depth (70.5cm)

HP DL360 G5 Base Models

Quad-Core Models
DL360R05 E5440 2GB
457923-xx1
DL360R05 E5430 2GB
457924-xx1
DL360R05 E5420 2GB
457925-xx1

Dual-Core Models DL360R05 X5260 2 GB 457928-xx1

Processor(s)
One of the following depending on Model		 (1) Quad-Core Intel® Xeon® Processor E5440 (2.83 GHz, 80 Watts, 1333 FSB)
(1) Quad-Core Intel® Xeon® Processor E5430 (2.66GHz, 80 Watts, 1333 FSB)
(1) Quad-Core Intel® Xeon® Processor E5420 (2.50GHz, 80 Watts, 1333 FSB)
(1) Dual-Core Intel® Xeon® Processor X5260 (3.33 GHz, 80 Watts, 1333 FSB)
Cache Memory
One of the following depending on Model

Quad-Core:
12MB (2 x 6MB) Level 2 cache; Intel Xeon Processor 5400 Sequence
Dual-Core:
6MB (1 x 6MB) Level 2 cache; Intel Xeon Processor 5200 Sequence

Memory
One of the following depending on Model
2 GB (2 x 1 GB) Standard on E5335/E5440/E5430/E5420/X5260 Model; PC2-5300 Fully Buffered DIMMs (DDR2-667)
1 GB (2 x 512 MB) Standard on E5320, 5140-5160, 5060 Models; PC2-5300 Fully Buffered DIMMs (DDR2-667)
Network ControllerEmbedded NC373i Multifunction Gigabit Server Adapters
Storage ControllerHP Smart Array P400i/256MB Controller (RAID 0/1/1+0/5)
Hard DriveNo drives included; (4) drive bays active.
(6) bays supported with optional storage cable (PN 399546-B21)
Internal Storage 1.8TB SAS; 1.50TB SATA
Optical DriveOptional DVD, DVD/CD-RW, or Floppy
PCI-Express Slots1 full-length x8 PCI-Express slot
1 low-profile x8 PCI-Express slot
Power Supply(1) 700W power supply, redundant optional
Fans9 total, redundancy standard
Form FactorRack (1U), (1.75 in/4.45 cm); 27.75 inch depth (70.5cm)

HP DL360 G5 Entry Models

Quad-Core Models
DL360R05 E5405 1GB
457926-xx1

 Processor(s) (1) Quad-Core Intel® Xeon® Processor E5405 (2.00GHz 80 Watts, 1333 FSB)
Cache Memory Quad-Core:
12MB (2 x 6MB) Level 2 cache; Intel Xeon Processor 5400 Sequence
Memory1 GB (2 x 512 MB) Standard; PC2-5300 Fully Buffered DIMMs (DDR2-667)
Network ControllerEmbedded NC373i Multifunction Gigabit Server Adapters
Storage ControllerHP Smart Array E200i/64MB Controller (RAID 0/1/1+0)
Hard DrivesNo drives included; (4) drive bays active
Internal Storage 1.8TB SAS; 1.50TB SATA
Optical DriveOptional DVD, DVD/CD-RW, or Floppy
PCI-Express Slots1 full-length x8 PCI-Express slot
1 low-profile x8 PCI-Express slot
Power Supply(1) 700W power supply, redundant optional
Fans9 total, N+1 redundancy standard
Form FactorRack (1U), (1.75 in/4.45 cm); 27.75 inch depth (70.5cm)

HP DL360 G5 High Efficiency

Quad-Core Models
DL360R05 L5420 2GB
457927-xx1

Processor(1) Quad-Core Intel® Xeon® Processor L5420 (2.50GHz 50 Watts, 1333 FSB)
Cache MemoryQuad-Core:
12MB (2 x 6MB) Level 2 cache; Intel Xeon Processor 5400 Sequence
Memory 2 GB (2 x 1 GB) Standard; PC2-5300 Fully Buffered DIMMs (DDR2-667)
Network ControllerEmbedded NC373i Multifunction Gigabit Server Adapters
Storage ControllerHP Smart Array P400i/256MB Controller (RAID 0/1/1+0/5)
Hard DrivesNo drives included; (4) drive bays active
Internal Storage 1.8TB SAS; 1.50TB SATA
Optical DriveOptional DVD or Floppy
PCI-Express Slots1 full-length x8 PCI-Express slot
1 low-profile x8 PCI-Express slot
Power Supply(1) 700W power supply, redundant optional
Fans9 total, N+1 redundancy standard
Form FactorRack (1U), (1.75 in/4.45 cm); 27.75 inch depth (70.5cm)
Country Code KeyRack Code Key
XX=00US
XX=20Brazil
XX=29Japan
XX=37APD
XX=42EURO
XX=AAPRC
Configuration Information - Factory Integrated Models

NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.
NOTE: HP does not allow factory integration of options into standard models listed above.
Configure-to-order servers must start with a CTO Chassis.
NOTE: FIO indicates that this option only available as a Factory Installable Option.

Step 1: Base Configuration (choose one of the following configurable models)
Models HP ProLiant DL360 G5 Rack CTO Chassis 399524-B21

Factory Integrated Model ships with:



Two embedded NC373i Multifunction Gigabit Server Adapters
Integrated Lights-Out 2 (iLO 2) embedded
1 full-length and 1 low-profile x8 PCI-Express slots
9 fans; N+1 fan redundancy
(1) 700W power supply, redundant optional
Rack (1U), (1.75 in/4.45 cm)


Step 2: Choose Required Options (only one of the following from each list unless otherwise noted)
Processors Quad-Core Processors
Quad-Core Intel® Xeon® Processor X5470 - 3.33GHz, 120 Watts, 1333, FSB, FIO 487511-L21
Quad-Core Intel® Xeon® Processor X5460 - 3.16GHz, 120 Watts, 1333 FSB, FIO 457929-L21
Quad-Core Intel® Xeon® Processor X5450 - 3.00GHz, 120 Watts, 1333 FSB, FIO 462858-L21
Quad-Core Intel® Xeon® Processor E5450 - 3.00GHz, 80 Watts, 1333 FSB, FIO 457931-L21
Quad-Core Intel® Xeon® Processor E5440 - 2.83GHz, 80 Watts, 1333 FSB, FIO 457933-L21
Quad-Core Intel® Xeon® Processor E5430 - 2.66GHz, 80 Watts, 1333 FSB, FIO 457935-L21
Quad-Core Intel® Xeon® Processor L5430 - 2.66GHz, 50 Watts, 1333 FSB, FIO 487513-L21
Quad-Core Intel® Xeon® Processor E5420 - 2.50GHz, 80 Watts, 1333 FSB, FIO 457937-L21
Quad-Core Intel® Xeon® Processor L5420 - 2.50GHz, 50 Watts, 1333 FSB, FIO 457943-L21
Quad-Core Intel® Xeon® Processor E5410 - 2.33GHz, 80 Watts, 1333 FSB, FIO 457939-L21
Quad-Core Intel® Xeon® Processor L5410 - 2.33GHz, 50 Watts, 1333 FSB, FIO 457945-L21
Quad-Core Intel® Xeon® Processor E5405 - 2.00GHz, 80 Watts, 1333 FSB, FIO 457941-L21
Dual-Core Processors
Dual-Core Intel® Xeon® Processor X5260 - 3.33 GHz, 80 Watts, 1333 FSB, FIO 457949-L21
Dual-Core Intel® Xeon® Processor L5240 - 3.00 GHz, 40 Watts, 1333 FSB, FIO 457947-L21
Dual-Core Intel® Xeon® Processor E5205 - 1.86 GHz, 50 Watts, 1066 FSB, FIO 460497-L21
NOTE: If High Performance Model features are desired, 2nd processor is included in the Performance Pack part numbers in Step 3 below.
Base Memory 1 GB FBD PC2-5300 2 x 512 MB Single Rank Kit
397409-B21
2 GB FBD PC2-5300 2 x 1 GB Dual Rank Kit
397411-B21
2 GB FBD PC2-5300 2 x 1 GB Low Power Single Rank Kit
461826-B21
4 GB FBD PC2-5300 2 x 2 GB Dual Rank Kit
397413-B21
4 GB FBD PC2-5300 2 x 2 GB Low Power Dual Rank Kit
461828-B21
8 GB FBD PC2-5300 2 x 4 GB Dual Rank Kit
397415-B21
8 GB FBD PC2-5300 2 x 4 GB Low Power Dual Rank Kit
466440-B21
16 GB FBD PC2-5300 2 x 8 GB Dual Rank Kit 413015-B21
64 GB FBD PC2-5300 8 x 8 GB Dual Rank Kit 495604-B21
NOTE: Memory Option Kits described as LP include Low Power DIMMs. For more information on ProLiant Energy Efficient Features, please visit:
http://h18004.www1.hp.com/products/servers/platforms/energyefficient/
Storage Controllers NOTE: If High Performance Model features are desired, Storage Controller is included in the Performance Pack part numbers in Step 3 below.
HP E200i Controller FIO
NOTE: If selected, must choose one of the two cache modules below.
399548-B21
HP Smart Array E200 64MB FIO Cache
NOTE: Supports Smart Array E200 Controller only.
405102-B21
128MB Battery-Backed Write Cache with Battery Housing
NOTE: Supports Smart Array E200i Controller.
346914-B21
Smart Array P400i controller for DL360 G5
NOTE: If selected, must choose one of the two cache modules below.
413741-B21
HP Smart Array P400 256MB Cache FIO
NOTE: Supports Smart Array P400 Controller and Smart Array P400i Controller only.
405139-B21
512MB Battery-backed cache upgrade
NOTE: Supports Smart Array P400 Controller and Smart Array P400i Controller only.
405148-B21
HP Smart Array P600/256 BBWC Controller
NOTE: Requires PCI-X Riser option (PN 405154-B21).
NOTE: Requires HP SAS 4i to Mini SAS 4i 31 inch/.79 meter cable (PN 411100-B21).
337972-B21
HP Smart Array 6402/512 FIO Controller
441508-B21
HP Smart Array 6404/512 FIO CNTRLR
452240-B21
Step 3: Choose Additional Factory Integratable Options
Performance Packs The HP ProLiant DL360 G5 performance packs are necessary to configure a HP ProLiant DL360 G5 Performance Model. HP ProLiant DL360 G5 Performance model includes the latest performance technologies and enterprise class availability features pre-installed for convenience and value. The performance pack includes a 2nd processor, redundant power supplies, Smart Array P400i Controller with 256MB of BBWC, and storage cable to enable the all 6 disk drive bays.
NOTE: 331903-B21 Slimline CD-RW/DVD-ROM Combo Drive Option Kit should also be selected along with the Performance Pack skus below to achieve parity to the HP ProLiant DL360 G5 Performance Models.
HP DL360G5 X5150 HPM FIO Perf Pack
431883-B21
HP DL360G5 X5450 HPM FIO Perf Pack
457951-B21
Step 4: Choose Additional Options for Factory Integration
NOTE: For additional options, please refer to the "Core Options" and "Additional Options" section below.
Core Options
NOTE: Some options may not be factory integratable. Contact your local sales representative for additional information.
HP ProLiant DL360
G5 Unique Options		 Quad-Core Processors
Quad-Core Intel® Xeon® Processor X5470 (3.33GHz, 120 Watts, 1333 FSB) 487511-B21
Quad-Core Intel® Xeon® Processor X5460 (3.16GHz, 120 Watts, 1333 FSB) 457929-B21
Quad-Core Intel® Xeon® Processor X5450 (3.00GHz, 120 Watts, 1333 FSB) 462858-B21
Quad-Core Intel® Xeon® Processor E5450 (3.00GHz, 80 Watts, 1333 FSB) 457931-B21
Quad-Core Intel® Xeon® Processor E5440 (2.83GHz, 80 Watts, 1333 FSB) 457933-B21
Quad-Core Intel® Xeon® Processor E5430 (2.66GHz, 80 Watts, 1333 FSB) 457935-B21
Quad-Core Intel® Xeon® Processor L5430 (2.66GHz, 50 Watts, 1333 FSB) 487513-B21
Quad-Core Intel® Xeon® Processor E5420 (2.50GHz, 80 Watts, 1333 FSB) 457937-B21
Quad-Core Intel® Xeon® Processor L5420 (2.50GHz, 50 Watts, 1333 FSB) 457943-B21
Quad-Core Intel® Xeon® Processor E5410 (2.33GHz, 80 Watts, 1333 FSB) 457939-B21
Quad-Core Intel® Xeon® Processor L5410 (2.33GHz, 50 Watts, 1333 FSB) 457945-B21
Quad-Core Intel® Xeon® Processor E5405 (2.00GHz, 80 Watts, 1333 FSB) 457941-B21
Quad-Core Intel® Xeon® Processor E5345 (2.33 GHz, 80 Watts, 1333 FSB) 435954-B21
Quad-Core Intel® Xeon® Processor E5335 (2.00 GHz, 80 Watts, 1333 FSB) 435952-B21
Quad-Core Intel® Xeon® Processor E5310 (1.60 GHz, 80 Watts, 1066 FSB) 438314-B21
Dual-Core Processors
Dual-Core Intel® Xeon® Processor X5260 (3.33 GHz, 80 Watts, 1333 FSB) 457949-B21
Dual-Core Intel® Xeon® Processor L5240 (3.00 GHz, 40 Watts, 1333 FSB) 457947-B21
Dual-Core Intel® Xeon® Processor E5205 (1.86 GHz, 50 Watts, 1066 FSB) 460497-B21
PCI-X Riser option
NOTE: To convert full-length PCI-Express slot to PCI-X slot.
405154-B21
Processor Quad-Core Processors
Quad-Core Intel® Xeon® Processor X5470 (3.33GHz, 120 Watts, 1333 FSB) 487511-B21
Quad-Core Intel® Xeon® Processor X5460 (3.16GHz, 120 Watts, 1333 FSB) 457929-B21
Quad-Core Intel® Xeon® Processor X5450 (3.00GHz, 120 Watts, 1333 FSB) 462858-B21
Quad-Core Intel® Xeon® Processor E5450 (3.00GHz, 80 Watts, 1333 FSB)
457931-B21
Quad-Core Intel® Xeon® Processor E5440 (2.83GHz, 80 Watts, 1333 FSB)
457933-B21
Quad-Core Intel® Xeon® Processor E5430 (2.66GHz, 80 Watts, 1333 FSB)
457935-B21
Quad-Core Intel® Xeon® Processor L5430 (2.66GHz, 50 Watts, 1333 FSB) 487513-B21
Quad-Core Intel® Xeon® Processor E5420 (2.50GHz, 80 Watts, 1333 FSB)
457937-B21
Quad-Core Intel® Xeon® Processor L5420 (2.50GHz, 50 Watts, 1333 FSB)
457943-B21
Quad-Core Intel® Xeon® Processor E5410 (2.33GHz, 80 Watts, 1333 FSB)
457939-B21
Quad-Core Intel® Xeon® Processor L5410 (2.33GHz, 50 Watts, 1333 FSB)
457945-B21
Quad-Core Intel® Xeon® Processor E5405 (2.00GHz, 80 Watts, 1333 FSB)
457941-B21
Quad-Core Intel® Xeon® Processor E5345 (2.33 GHz, 80 Watts, 1333 FSB)
435954-B21
Quad-Core Intel® Xeon® Processor E5335 (2.00 GHz, 80 Watts, 1333 FSB)
435952-B21
Quad-Core Intel® Xeon® Processor E5310 (1.60 GHz, 80 Watts, 1066 FSB)
438314-B21
Dual-Core Processors
Dual-Core Intel® Xeon® Processor X5260 (3.33 GHz, 80 Watts, 1333 FSB)
457949-B21
Dual-Core Intel® Xeon® Processor L5240 (3.00 GHz, 40 Watts, 1333 FSB)
457947-B21
Dual-Core Intel® Xeon® Processor E5205 (1.86 GHz, 50 Watts, 1066 FSB)
460497-B21

Memory

 1 GB FBD PC2-5300 2 x 512 MB Single Rank Kit
397409-B21
2 GB FBD PC2-5300 2 x 1 GB Dual Rank Kit
397411-B21
2 GB FBD PC2-5300 2 x 1 GB Low Power Single Rank Kit
461826-B21
4 GB FBD PC2-5300 2 x 2 GB Dual Rank Kit
397413-B21
4 GB FBD PC2-5300 2 x 2 GB Low Power Dual Rank Kit
461828-B21
8 GB FBD PC2-5300 2 x 4 GB Dual Rank Kit
397415-B21
8 GB FBD PC2-5300 2 x 4 GB Low Power Dual Rank Kit
466440-B21
16 GB FBD PC2-5300 2 x 8 GB Dual Rank Kit 413015-B21
64 GB FBD PC2-5300 8 x 8 GB Dual Rank Kit 495604-B21
NOTE: Memory Option Kits described as LP include Low Power DIMMs. For more information on ProLiant Energy Efficient Features, please visit:
http://h18004.www1.hp.com/products/servers/platforms/energyefficient/
Diskette DriveSlimline Ejectable Floppy drive
390164-B21
Optical DrivesSlimline CD-RW/DVD-ROM Combo Option Kit
331903-B21
Slimline DVD-ROM Drive (8X/24X) Option Kit
264007-B21
HP DVD+R/RW 8X Slim
383975-B21
Slimline CD-ROM Drive 24X
356963-B21
Hard Drives NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
SAS Hot Plug SFF Enterprise (ENT) Drives
HP 300GB 6G SAS 10K SFF DP ENT HDD 507127-B21
HP 300GB 3G SAS 10K SFF DP ENT HDD 492620-B21
HP 146GB 6G SAS 15K SFF DP ENT HDD 512547-B21
HP 146GB 6G SAS 10K SFF DP ENT HDD 507125-B21
HP 146GB 3G SAS 15K SFF DP ENT HDD 504062-B21
HP 146GB 3G SAS 10K SFF DP ENT HDD 418367-B21
HP 72GB 6G SAS 15K SFF DP ENT HDD 512545-B21
HP 72GB 3G SAS 15K SFF DP ENT HDD 418371-B21
HP 72GB 3G SAS 10K SFF DP ENT HDD 384842-B21
SAS Hot Plug SFF Midline (MDL) Drives
HP 500GB 6G SAS 7.2K SFF DP MDL HDD 507610-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html (Worldwide)
SATA Hot Plug SFF Midline (MDL) Drives
HP 500GB 3G SATA 7.2K 2.5in MDL HDD 507750-B21
HP 160GB 3G SATA 7.2K 2.5in MDL HDD 530888-B21
SATA Hot Plug SFF Entry (ETY) Drives
HP 250GB 3G SATA 5.4K SFF ETY HDD 460355-B21
HP 120GB 1.5G SATA 5.4K SFF ETY HDD 458924-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/13021_div/13021_div.html
(Worldwide)
SATA Hot Plug Midline (MDL) Solid State Drives
HP 60GB 3G SATA 3.5in MDL 1y Wty SSD 570761-B21
HP 120GB 3G SATA 3.5in MDL 1y Wty SSD 570763-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/13415_div/13415_div.html (Worldwide)
Communications Gigabit Ethernet Adapters
HP NC110T PCI Express Gigabit Server Adapter
434905-B21
HP NC360T PCI Express Dual Port Gigabit Server Adapter
412648-B21
HP NC364T PCI Express Quad Port Gigabit Server Adapter
435508-B21
HP NC373F PCI Express Multifunction Gigabit Server Adapter
394793-B21
HP NC373T PCI Express Multifunction Gigabit Server Adapter
394791-B21
HP NC380T PCI Express Dual Port Multifunction Gigabit Server Adapter
NOTE: Supported on a Full Length-Full Height slot only.
394795-B21
10 Gigabit Ethernet Adapters
HP NC522SFP Dual Port 10GbE Server Adapter
NOTE: A minimum of two gigabyte (2 GB) of server memory is required per each NC522SFP adapter.
NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately.
468332-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: www.hp.com/go/ProLiantNICs
Power Supplies 700W HP redundant power supply with IEC cord only
399542-B21
700W HP redundant power supply with IEC cord and Japan cord (Japan)
399542-291
Additional Options
HP Insight Software HP Insight Control server deployment
HP Insight Control server deployment, Electronic License including 1 year of 24x7 Technical Support and Updates T9082AAE
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single activation key.
NOTE: Electronic software is available in all countries except China and Japan. Customers in China and Japan should order the physical equivalent.
NOTE: Customer will receive a license entitlement certificate. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
NOTE: Licenses ship without media. The HP Insight Control Media Kit can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: For additional license options please see the Insight Control QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12631_div/12631_div.html
HP Insight Control for Linux
HP Insight Control for Linux, 1-server license, including one year of 24x7 Technical Support and Updates, Electronic
T9084BAE
HP Insight Control for Linux, No Media, 1-Server license, including one year of 24x7 Technical Support and Updates 464423-B22
HP Insight Control for Linux, Media pack (DVD) - No licenses included
NOTE: Media pack DVD contains the ISO image for HP Insight Control for Linux, HP Systems Insight Manager, HP Insight Control power management, HP Insight Control virtual machine management, and an integrated installer. Servers must be acquired separately.		 464422-B22
NOTE: Licenses ship without media. The HP Insight Control Media Kit can be ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: Electronic software is available in all countries except China and Japan. Customers in China and Japan should order the physical equivalent.
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple licenses with a single set of activation keys.
NOTE: For additional License Kits, including electronic licensing options, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/13019_div/13019_div.html
HP Integrated Lights-Out Advanced
HP Integrated Lights-Out Advanced, No Media, 1-Server License, including 1 year of 24x7 Technical Support and Updates
NOTE: This license allows 1 server to be deployed and managed via HP iLO Advanced. Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service
NOTE: For additional license kits, including electronic delivery options, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/12362_div/12362_div.html		 512485-B21
HP Insight Rapid Deployment software
HP Insight Rapid Deployment software No Media 1-Server License, including 1 year of 24x7 Technical Support and Updates
NOTE: This license allows 1 server to be deployed and managed via RDP. Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service
NOTE: For additional license kits, including electronic delivery options, please see the QuickSpecs at: http://h18000.www1.hp.com/products/quickspecs/11053_div/11053_div.html		 452151-B21
Storage Controllers SAS Controllers
Smart Array E500 Controller
Smart Array E500/256MB Controller
435129-B21
HP Smart Array P400 Controller
HP Smart Array P400i Controller
HP Smart Array P400/256MB Controller
405132-B21
HP Smart Array P400i/256MB Controller 399550-B21
Smart Array P600 Controller
HP Smart Array P600/256 BBWC Controller
NOTE: Requires DL360 G5 PCI-X conversion kit (PN 405154-B21).
337972-B21
Smart Array P800 Controller
HP Smart Array P800/512 BBWC Controller
381513-B21
Optional Upgrades
128 MB Battery-Backed Write Cache with Battery Housing
NOTE: Supports Smart Array E200i Controller only.		 346914-B21
Battery-backed write cache upgrade
NOTE: For Smart Array P400 Controller and Smart Array P400i Controller only.		 383280-B21
512 MB Battery-backed write cache upgrade
NOTE: For Smart Array P400 Controller and Smart Array P400i Controller only.		 405148-B21
512 MB Battery-Backed Cache Upgrade
NOTE: This 512-MB Battery-Backed Cache Module upgrade kit supports the Smart Array P600 Controller and the Smart Array 6400 series Controller.		 372538-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/12460_div/12460_div.html
(Smart Array E200 Controller)
http://h18000.www1.hp.com/products/quickspecs/12700_div/12700_div.html
(Smart Array E500 Controller)
http://h18000.www1.hp.com/products/quickspecs/12400_div/12400_div.html
(Smart Array P400 Controller)
http://h18000.www1.hp.com/products/quickspecs/12247_div/12247_div.html
(Smart Array P600 Controller)
http://h18000.www1.hp.com/products/quickspecs/12616_div/12616_div.html
(Smart Array P800 Controller)
SAS HBA
HP SC08Ge Host Bus Adapter
488765-B21
HP SC44Ge Host Bus Adapter
NOTE: When using the SC44Ge with SATA Hard Drives, 1.5G SATA Hard Drives are required. Transfer rate: 1.5 Gb/s SATA, 3 Gb/s SAS.		 416096-B21
HP 8 Internal Port SAS HBA with RAID
NOTE: Supports SAS and SATA disk drive. RAID 0,1 supported. Transfer rate: 1.5 Gb/s SATA, 3 Gb/s SAS.
347786-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18004.www1.hp.com/products/quickspecs/13082_div/13082_div.html
(SC08Ge HBA)
http://h18004.www1.hp.com/products/quickspecs/12617_div/12617_div.html
(SC44Ge HBA)
http://h18004.www1.hp.com/products/quickspecs/12332_div/12332_div.html
(SAS HBA)
SAS Cables
HP Mini SAS 4i 13.4 inch/0.35 m cable
NOTE: Used to connect Smart Array P400i Controller to DL360 G5 5th and 6th drive bays.
399546-B21
HP SAS 4i to Mini SAS 4i 31 inch/.79 meter cable
NOTE: Used to connect SA-P600, SA-P400, SA-E200 Controllers to the HP ProLiant DL360 G5 drive backplane. This kit supports all six drive bays.
411100-B21
SCSI Controllers for External Drive/Storage Support
Smart Array 6402/128 Controller
NOTE: For support of external drives only.
273915-B21
Smart Array 6404/256 Controller
NOTE: For support of external drives only.
273914-B21
Smart Array 642 Controller
NOTE: For support of external drives only.
291967-B21
128MB Battery-Backed Cache Enabler
NOTE: This 128-MB Battery-Backed Cache Module upgrade kit supports the Smart Array 642 Controller.
351580-B21
512 MB Battery-Backed Cache Upgrade
NOTE: This 512-MB Battery-Backed Cache Module upgrade kit supports the Smart Array P600 Controller and the Smart Array 6400 series Controller.
372538-B21
64-Bit/133-MHz Single Channel Ultra320 SCSI HBA G2
374654-B21
SCSI HBA
HP SC11Xe Host Bus Adapter
NOTE: Recommended HBA for SCSI tape drive connect.
412911-B21

NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/10429_div/10429_div.html
(SCSI Adapter)
http://h18000.www1.hp.com/products/quickspecs/11555_div/11555_div.html
(U320 Adapter)
http://h18000.www1.hp.com/products/quickspecs/11943_div/11943_div.html
(U320 SCSI HBA)
http://h18000.www1.hp.com/products/quickspecs/12566_div/12566_div.html
(SC11Xe HBA)


Power CordsNOTE: The HP ProLiant DL360 G5 ships with an IEC-IEC power cord used for rack mounting with Power Distribution Units (PDUs).
Nema 5-15P to IEC320-C13

AF556A

Power Cord, Euro, 10A 250 V Straight (6 ft/1.83 m)
AF568A
Power Cord, UK, 10A 250 V Straight (6 ft/1.83 m)
AF570A
Power Cord, Danish, 10A 250 V Straight (6 ft/1.83 m)
AF566A
Power Cord, Swiss, 10A 250 V Straight (6 ft/1.83 m)
AF565A
Power Cord, Italian, 10A 250 V Straight (6 ft/1.83 m)
AF571A
Power Cord, South Africa, 10A 250 V Straight (8.2 ft/2.5 m)
AF567A
HPC Specific Options HP IB 4X DDR PCI-e Dual Port HCA
409376-B21
HP IB 4X DDR PCI-e DUAL PORT 0 mem HCA
483513-B21
NOTE: Please see the QuickSpecs for additional information: http://h18000.www1.hp.com/products/quickspecs/13078_div/13078_div.html

Tape Storage

NOTE: For the complete listing of Tape Drive offerings, please see:
http://www.hp.com/products1/storage/compatibility/tapebackup/ISS/index.html
Tape Drives
DAT USB Tape Drives
DAT USB Tape Drives AJ823A
DAT 320 WW SAS External Tape Drive AJ828A
USB Rack-Mount Tape Solutions
HP StorageWorks 1U USB Rack-Mount Kit with one DAT 160 USB Tape Drive
NOTE: Pre-configured with one DAT 160 USB tape drive.
AG703A
SAS Rack-Mount Tape Solutions
NOTE: HP recommends purchasing the HP SC44Ge HBA (416096-B21) for a dedicated SAS HBA for tape.
HP StorageWorks 1U SAS Rack-Mount Kit with one LTO-4 Ultrium 1760
NOTE: Pre-configured with one LTO-4 Ultrium 1760 SAS tape drive.
EH946A
HP StorageWorks 1U SAS Rack-Mount Kit
NOTE: Supports up to (2) half-height SAS tape drives.
AE459A
HP StorageWorks LTO-2 Ultrium 448 SAS Internal Tape Drive
NOTE: Mounts inside the 1U SAS Rack-Mount Kit (AE459A).
DW085A
HP StorageWorks LTO-3 Ultrium 920 SAS Internal Tape Drive
NOTE: Mounts inside the 1U SAS Rack-Mount Kit (AE459A).
EH847A
NOTE: For an up-to-date listing of the latest O/S and software support details for HP tape drives, please visit: http://www.hp.com/go/connect.
HP StorageWorks 1/8 G2 Tape Autoloader
HP StorageWorks 1/8 G2 LTO-4 Ultrium 1760 SAS Tape Autoloader AK377A
HP StorageWorks 1/8 G2 LTO-3 Ultrium 920 SAS Autoloader AH558A
HP StorageWorks 1/8 G2 Tape Autoloader Rack Kit
NOTE: Required to install the 1/8 G2 Autoloaders in a standard 19-inch rack; includes rails and rackmount instructions.		 AH166A
NOTE: Please reference the Tape Autoloader QuickSpecs at: http://www.hp.com/go/automation for additional information needed to create a complete solution.
HP StorageWorks MSL2024 Tape Library
HP StorageWorks MSL2024 1 LTO-4 Ultrium 1760 SAS Drive Library AK378A
HP StorageWorks MSL2024 1 LTO-3 Ultrium 920 SAS Drive Library AH559A
HP StorageWorks MSL4048 Tape Library
HP StorageWorks MSL4048 2 LTO-4 Ultrium 1760 SAS Drive Library AK380A
HP StorageWorks MSL4048 1 LTO-3 Ultrium 920 SAS Drive Library AH560A
NOTE: Please reference the MSL Tape Library QuickSpecs at: http://www.hp.com/go/automation for additional information needed to create a complete solution; reference current compatibility information at: http://www.hp.com/go/ebs.
Disk-Based Backup RDX Removable Disk Backup
HP RDX500 External Removable Disk Backup System
NOTE: 500 GB of Disk Storage.		 AJ935A
NOTE: Please see the HP RDX Removable Disk Backup System QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/13036_div/13036_div.html
D2D Backup
HP StorageWorks D2D2502i Backup System
NOTE: 2 TB raw capacity/1.5 TB useable capacity.		 EJ001A
HP StorageWorks D2D2504i Backup System
NOTE: 4 TB raw capacity/3 TB useable capacity.		 EJ002A
NOTE: Please see the HP D2D Backup Systems QuickSpecs for additional information: http://www.hp.com/go/d2d
StorageWorks Options HP StorageWorks Fibre Channel HBAs
NOTE: The following is a list of all Fibre Channel Host Bus Adapters for Windows and Linux. For detailed compatibility information please see: http://h18006.www1.hp.com/storage/saninfrastructure/hba.html
Brocade Fibre Channel HBAs
HP StorageWorks 81B PCI-e FC HBA Single Port
AP769A
HP StorageWorks 82B PCI-e FC HBA Dual Port
AP770A
HP StorageWorks 41B 4Gb PCI-e FC HBA
AP767A
HP StorageWorks 42B 4Gb Dual-Port PCI-e FC HBA
AP768A
Emulex Fibre Channel HBAs
HP StorageWorks 81E PCI-e FC HBA Single Port AJ762A
HP StorageWorks 82E PCI-e FC HBA Dual Port AJ763A
HP StorageWorks FC2142 4Gb PCI-e HBA A8002A
HP StorageWorks FC2242 Dual Channel 4Gb PCI-e HBA A8003A
QLogic Fibre Channel HBAs
HP StorageWorks 81Q PCI-e FC HBA Single Port AK344A
HP StorageWorks 82Q PCI-e FC HBA Dual Port AJ764A
HP StorageWorks FC1142 4Gb PCI-e HBA AE311A
HP StorageWorks FC1242 Dual Channel 4Gb PCI-e HBA AE312A
StorageWorks SCSI HBA
HP U320e SCSI Host Bus Adapter
NOTE: Recommended HBA for MSL SCSI Tape Library connect.
AH627A
HP StorageWorks Modular Smart Array MSA SAN Storage Arrays
HP StorageWorks 20 Modular Smart Array 335921-B21
NOTE: Rack-mountable 12 (SATA) drive enclosure with U320 Host connectivity, redundant power supplies.
NOTE: Please see the QuickSpecs for additional options and configuration information at: http://h18000.www1.hp.com/products/quickspecs/11942_div/11942_div.html (Worldwide)
HP StorageWorks 50 Modular Smart Array 364430-B21
NOTE: Please see the QuickSpecs for additional options and configuration information at: http://h18000.www1.hp.com/products/quickspecs/12245_div/12245_div.html (Worldwide)
HP StorageWorks 60 Modular Smart Array 418408-B21
NOTE: Please see the QuickSpecs for additional options and configuration information at: http://h18000.www1.hp.com/products/quickspecs/12627_div/12627_div.html (Worldwide)
HP StorageWorks 70 Modular Smart Array 418800-B21
NOTE: Please see the QuickSpecs for additional options and configuration information at: http://h18000.www1.hp.com/products/quickspecs/12652_div/12652_div.html (Worldwide)
HP 2012sa Single Controller Modular Smart Array AJ752A
HP 2012sa Dual Controller Modular Smart Array AJ753A
NOTE: Please see the Modular Smart Array 2000sa QuickSpecs for additional options and configuration information at:
http://h18000.www1.hp.com/products/quickspecs/13045_div/13045_div.html (Worldwide)
Uninterruptible Power Systems HP Rack-mountable UPS
HP R1500 G2 UPS
HP, R1.5kVA UPS, 1U, NA

AF419A
HP, R1.5kVA UPS, 1U, INTL

AF418A
HP, R1.5kVA UPS, 1U, JPN/TW
AF421A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/12507_div/12507_div.html (Worldwide)
HP R3000 UPS
HP R3000 VA UPS, 2U, DTC, INTL
AF414A
HP R3000 VA UPS, 2U, Low voltage L5-30, NA
AF422A
HP R3000 VA UPS, 2U, High voltage L6-20, NA
AF423A
HP R3000 VA UPS, 2U, High voltage L6-20, JPN
AF424A
HP R3000 VA UPS, 2U, Low voltage L5-30, JPN
AF425A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/10671_div/10671_div.html (Worldwide)
HP R3000v Uninterruptible Power System
HP R3000v UPS
NOTE: The R3000v is available in China and India only.
AF444A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/13129_div/13129_div.html (Worldwide)
HP R/T3000 Uninterruptible Power System (UPS)
HP R/T3000 UPS, Low voltage NA/JPN AF452A
HP R/T3000 UPS, High voltage, NA/JPN AF453A
HP R/T3000 UPS, High voltage, detachable inlet cord INTL AF454A
NOTE: Please see the QuickSpecs for additional information:
http://h18000.www1.hp.com/products/quickspecs/13417_div/13417_div.html (Worldwide)
HP Rack-Mountable R5500 UPS
HP R5500 VA UPS, INTL
AF416A
HP R5500 VA UPS, NA/JPN
AF426A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/11871_div/11871_div.html (Worldwide)
NOTE: For additional information on HP Uninterruptible Power Systems please go to: www.hp.com/servers/rackups.
Power Distribution Units Monitored PDUs
HP Monitored Power Distribution Unit: Full Rack Version
HP 17.3 kVA S2324 Monitored PDU- dual input, 3Ø24A (NA/JPN)
AF503A
HP 8.6 kVA S1324 Monitored PDU- single input, 3Ø, 24A (NA/JPN)
AF504A
HP 16.6 kVA S2140 Monitored PDU- dual input, 1Ø, 40A (NA/JPN)
AF505A
HP 8.3 S1140 Monitored PDU- single input, 1Ø, 40A (NA/JPN)
AF506A
HP 22.1 kVA S2316 Monitored PDU- dual input, 3Ø, 16A (INTL)
AF507A
HP 11 kVA S1316 Monitored PDU- single input, 3Ø, 16A (INTL)
AF508A
HP 14.7 kVA S2132 Monitored PDU- dual input, 1Ø, 32A (INTL)
AF509A
HP 7.3 kVA S1132 Monitored PDU- single input, 1Ø, 32A (INTL)
AF510A
HP Monitored Power Distribution Unit: Half Rack Version
HP 4.9 kVA S124 Monitored PDU- single input, 1Ø, 24A (NA/JPN)
AF914A
HP 7.3 kVA S132 Monitored PDU- single input, 1Ø, 32A (INTL)
AF915A
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/12118_div/12118_div.html (Worldwide)

Modular PDUs 1U/0U
(Up to 32 outlets)

 NOTE: 1U/0U mounting brackets shipped with the unit (optimized for 10000 G2 and 9000 series racks).
Fixed Cord Extension Bars
NOTE: Two extension bar sticks; each with (7) C13 plugs.
351655-B21
3.6kVA Model - mPDU, 16A, High (WW)
252663-B24
2.8 kVA Model - mPDU, 24A, Low (NA/JPN)
252663-D71
4.9kVA Model - mPDU, 24A, High (NA/JPN)
252663-D72
7.3kVA Model - mPDU, 32A, High (INT'L)
252663-B31

8.3kVA Model - mPDU, 40A, High (WW)

252663-B21

8.3kVA Model - mPDU, 40A, High (power cord attached) (NA/JPN)

252663-D73

9.2kVA Model - mPDU, 40A, High (power cord attached) (INTL)

252663-B32

8.3kVA Model - mPDU 40A, High (core only) (NA/JPN)

252663-D75
9.2kVA Model - mPDU 40 A, High (core only) (Int'l)
252663-B34
8.3kVA Model - mPDU 32A, High (core only) (Int'l)
252663-B33
4.9kVA Model - mPDU 24A, High (core only) (NA/JPN)
252663-D74
NOTE: For additional information on HP Power Distribution Units including accessories please go to: www.hp.com/go/pdu (Worldwide)

HP Rack Series

 HP Rack 5000 Series (Graphite Metallic)
HP 5642 Rack Unassembled 358254-B21
NOTE: Please see the QuickSpecs for Technical Specifications and additional information: http://h18000.www1.hp.com/products/quickspecs/12074_div/12074_div.html (Worldwide)
HP Rack 10000 G2 Series (Carbon/Graphite Metallic)
S10614 (14U) Rack Cabinet - Shock Pallet 292302-B22
10642 G2 (42U) Rack Cabinet - Pallet
AF001A
10642 G2 (42U) Rack Cabinet – Shock Pallet
AF002A
10642 G2 (42U) Rack Cabinet – Crated
AF003A
10642 G2 (42U) Rack Cabinet, with Extension – Shock Pallet
AF004A
10636 G2 (36U) Rack Cabinet – Pallet
AF011A
10636 G2 (36U) Rack Cabinet – Shock Pallet
AF012A
10636 G2 (36U) Rack Cabinet – Crated
AF013A
10636 G2 (36U) Rack Cabinet, with Extension – Shock Pallet
AF014A
10622 G2 (22U) Rack Cabinet - Pallet
AF021A
10622 G2 (22U) Rack Cabinet - Shock Pallet
AF022A
10642 G2 (42U) Rack Cabinet 1200mm Deep - Shock Pallet AF034A
10642 G2 (42U) Rack Cabinet 1200mm Deep - Pallet AF038A
10842 G2 (42U) 800mm Wide Rack Cabinet - Pallet
AF041A
10842 G2 (42U) 800mm Wide Rack Cabinet - Shock Pallet
AF042A
10647 G2 (47U) Rack Cabinet - Pallet
AF031A
10647 G2 (47U) Rack Cabinet 1200mm Deep - Shock Pallet
NOTE: Due to handling and shipping requirements, AF044A is only orderable through HP Factory Express. It is not for direct sales. Customer site surveys are required before an order is approved. CTO orders may require additional lead time.		 AF044A
10647 G2 (47U) Rack Cabinet 1200mm Deep - Pallet AF045A
NOTE: It is mandatory to use a shock pallet when shipping racks with equipment installed.
NOTE: xxxxxx-B22 (shock pallet) used to ship racks with equipment installed (by custom systems, VARs and Channels).
NOTE: Please see the QuickSpecs for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.html (Worldwide)
NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.

HP Rack Options

 Keyboards and Monitors
TFT7600 Rackmount Keyboard Monitor US
AG052A
TFT7600 Rackmount Keyboard Monitor UK
AG053A
TFT7600 Rackmount Keyboard Monitor GR
AG054A
TFT7600 Rackmount Keyboard Monitor FR
AG055A
TFT7600 Rackmount Keyboard Monitor IT
AG056A
TFT7600 Rackmount Keyboard Monitor SP
AG057A
TFT7600 Rackmount Keyboard Monitor DEN
AG058A
TFT7600 Rackmount Keyboard Monitor NOR
AG059A
TFT7600 Rackmount Keyboard Monitor SE/FI
AG060A
TFT7600 Rackmount Keyboard Monitor SWI
AG061A
TFT7600 Rackmount Keyboard Monitor PORT
AG062A
TFT7600 Rackmount Keyboard Monitor BEL
AG063A
TFT7600 Rackmount Keyboard Monitor JPN2
AG064A
TFT7600 Rackmount Keyboard Monitor RUS
AG065A
TFT7600 Rackmount Keyboard Monitor INTL
AG066A
HP TAA TFT7600 US Rkmntkybd 17in Monitor AG067A
1U Rackmount Keyboard with USB, US
AG072A
1U Rackmount Keyboard with USB, UK
AG073A
1U Rackmount Keyboard with USB, GR
AG074A
1U Rackmount Keyboard with USB, FR
AG075A
1U Rackmount Keyboard with USB, ITL
AG076A
1U Rackmount Keyboard with USB, SP
AG077A
1U Rackmount Keyboard with USB, DEN
AG078A
1U Rackmount Keyboard with USB, NOR
AG079A
1U Rackmount Keyboard with USB, SE/FI
AG080A
1U Rackmount Keyboard with USB, SWI
AG081A
1U Rackmount Keyboard with USB, PORT
AG082A
1U Rackmount Keyboard with USB, BEL
AG083A
1U Rackmount Keyboard with USB, JPN2
AG084A
1U Rackmount Keyboard with USB, RUS
AG085A
1U Rackmount Keyboard with USB, INTL
AG086A
NOTE: For additional information regarding Rack Cabinets, please see the following URL: http://www.hp.com/go/rackandpower.
HP KVM Switch Options
2x1x16 IP Console Switch with Virtual Media AF601A
4x1x16 IP Console Switch with Virtual Media AF602A
2x16 Server Console Switch with Virtual Media AF600A
PS/2 Virtual Media Interface Adapter, 1 pack
NOTE: Requires PS/2 and one USB port on server.		 AF604A
Server console switch 0x2x8 AF616A
Server console switch 0x2x16 AF617A
0x2x16 KVM Server Console G2 Switch with Virtual Media and CAC AF618A
0x2x32 KVM Server Console G2 Switch with Virtual Media and CAC AF619A
1x1Ex8 KVM IP Console Switch G2 with Virtual Media and CAC AF620A
2x1Ex16 KVM IP Console Switch G2 with Virtual Media and CAC AF621A
4x1Ex32 KVM IP Console Switch G2 with Virtual Media and CAC AF622A
HP TAA Server console switch 0x2x16 AF626A
PS/2 Interface Adapter, 1 pack 262588-B21
PS/2 Interface Adapter, 8 pack 262587-B21
NOTE: Cat5e cables are required to connect Interface Adapters to Console Switches. Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
HP 1x4 Console Switch (ALL)
PS2 Server Console Cable, 6 ft, 2 pack AF612A
USB Server Console Cable, 6 ft, 2 pack AF613A
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.
HP Serial Console Server Options
HP 16 Port Serial Console Server (worldwide) AF101A
HP 48 Port Serial Console Server (worldwide) AF102A
Serial Adapter, RJ45-DB9 DCE Female, 1 Pack AF103A
Serial Adapter, RJ45-DB9 DCE Female, 8 Pack AF110A
NOTE: Cat5e cables are required to connect Serial Adapters to Serial Console Servers. Additional Serial Adapters and Cat5e cables can be found at the following URL: http://www.hp.com/go/kvm.
NOTE: For additional information regarding KVM switches, Serial Console servers, rack mount monitors, keyboards and all related options please see the following URL: http://www.hp.com/go/kvm.
USB and SD Options HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver)
DC172B
USB 1.44-MB External Diskette Drive (Carbonite)
DC141B
HP USB 04 Standard Keyboard
DT528A#ABA
HP 1GB USB 2.0 Floppy Drive Key
442085-B21

Service and Support Offerings
(HP Care Pack Services)

Hardware Services 4-Hour On-site Service
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
U4496E
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4497E
Hardware Services 6-Hour Call to Repair On-site Service
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
U4498E
Hardware Services Next Business Day On-Site Service
Hardware Installation, Electronic
U4506E
Installation & Start-Up of a ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet. To be delivered on a scheduled basis 8am-5pm, M-F, excl. HP holidays, Electronic
U4507E
Support Plus
Onsite HW support, 8am-9pm, M-F, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 8am-9pm, M-F 2hr response time excl. HP holidays, Electronic
U4508E
Support Plus 24
Onsite HW support 24x7, 4hr response and Microsoft O/S SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U4509E
Onsite HW support 24x7, 4hr response and SuSE Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U6310E
Onsite HW support 24x7, 4hr response and Red Hat ES Linux SW Tech support offsite, onsite at HP's discretion, 24x7 2hr response time incl. HP holidays, Electronic
U8332E
NOTE: For more information, customer/resellers can contact: http://www.hp.com/services/carepack.
Memory
NOTE: Memory configurations listed do not apply to "Factory Integrated Models".
NOTE: Memory DIMMs in systems with the Front Side Bus (FSB) running at 1333 MHz will run at 667 MHz and in systems with a FSB running at 1066 MHz or 667 MHz the memory DIMMs will run at 533 MHz.

HP ProLiant DL360 G5 Entry and Base Models

Standard Memory
1 GB PC2-5300 Fully Buffered DIMMs (DDR2-667) installed (2 x 512 MB)

Upgrading Memory and Memory Interleaving
When upgrading memory, DIMMs 1A and 3A must match. DIMMs 5B and 7B, DIMMs 2C and 4C, and DIMMs 6D and 8D must match and must be installed as a pair. When DIMMs 1A and 2A are populated the system is automatically configured for 2:1 interleaving. When all 4 banks are populated the system is automatically configured for 4:1 interleaving. When four, six, or eight DIMMs are populated with identical DIMMs the system is automatically configured for bank interleaving.

Standard Memory Plus Optional Memory
Up to 25 GB memory is available with the standard memory of 1 GB and the optional installation of PC2-5300 Fully Buffered DIMMs (DDR2-667) memory kits.

Standard Memory Replaced with Optional Memory
Up to 32 GB of memory is available with the removal of the standard 512 MB of memory and the optional installation of PC2-5300 Fully Buffered DIMMs (DDR2-667) memory kits.
NOTE: 4 GB Fully Buffered DIMMs kits will be available shortly following server availability to allow a maximum of 32 GB. Today's maximum is 16 GB utilizing 2 GB DIMMs.

NOTE: Chart does not represent all possible configurations.

Memory
 Slot
  1 2 3 4 5 6 7 8
Standard 1 GB
512 MB
512 MB
Empty
Empty
Empty
Empty
Empty
Empty
Optional 25 GB
512 MB
512 MB
4 GB
4 GB
4 GB
4 GB
4 GB
4 GB
Maximum 64 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
NOTE: In the online spare configuration, the ROM automatically configures the last populated bank as the spare memory. If only banks A and B are populated, bank B is the spare bank. If banks A, B, and C are populated, bank C is the spare bank, If banks A, B, C and D are populated, bank D is the spare bank, Online spare memory is configured through RBSU.
NOTE: Mirrored Memory uses mirrored banks to provide a high level of memory redundancy. Customer chooses to implement or not: User selectable via BIOS and default is off.


Following are memory options available from HP:



1 GB FBD PC2-5300 2 x 512 MB Single Rank Kit

 397409-B21

2 GB FBD PC2-5300 2 x 1 GB Dual Rank Kit

 397411-B21

2 GB FBD PC2-5300 2 x 1 GB Low Power Single Rank Kit

 461826-B21
4 GB FBD PC2-5300 2 x 2 GB Dual Rank Kit 397413-B21
4 GB FBD PC2-5300 2 x 2 GB Low Power Dual Rank Kit 461828-B21
8 GB FBD PC2-5300 2 x 4 GB Dual Rank Kit 397415-B21
8 GB FBD PC2-5300 2 x 4 GB Low Power Dual Rank Kit 466440-B21
16 GB FBD PC2-5300 2 x 8 GB Dual Rank Kit 413015-B21
64 GB FBD PC2-5300 8 x 8 GB Dual Rank Kit 495604-B21
NOTE: Memory Option Kits described as LP include Low Power DIMMs. For more information on ProLiant Energy Efficient Features, please visit: http://h18004.www1.hp.com/products/servers/platforms/energyefficient/

HP ProLiant DL360 G5 Performance Models

Standard Memory
2 GB PC2-5300 Fully Buffered DIMMs (DDR2-667) (2 x 1 GB)

Upgrading Memory and Memory Interleaving
When upgrading memory, DIMMs 1A and 3A must match. DIMMs 5B and 7B, DIMMs 2C and 4C, and DIMMs 6D and 8D must match and must be installed as a pair. When DIMMs 1A and 2A are populated the system is automatically configured for 2:1 interleaving. When all 4 banks are populated the system is automatically configured for 4:1 interleaving. When four, six, or eight DIMMs are populated with identical DIMMs the system is automatically configured for bank interleaving.

Standard Memory Plus Optional Memory
Up to 14 GB memory is available with the standard memory of 2 GB and the optional installation PC2-5300 Fully Buffered DIMMs (DDR2-667) memory kits.

Standard Memory Replaced with Optional Memory
Up to 32 GB of memory is available with the removal of the standard 1 GB of memory and the optional installation of PC2-5300 Fully Buffered DIMMs (DDR2-667) memory kits.

NOTE: Chart does not represent all possible configurations.

Memory

Slot


1

2

3

 4 5

6

 7 8

Standard

 2 GB
1 GB
1 GB
Empty
Empty
Empty
Empty
Empty
Empty

Optional

 14 GB
1 GB
1 GB
2 GB
2 GB
2 GB
2 GB
2 GB
2 GB
Maximum
 64 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
8 GB
NOTE: In the online spare configuration, the ROM automatically configures the last populated bank as the spare memory. If only banks A and B are populated, bank B is the spare bank. If banks A, B, and C are populated, bank C is the spare bank, Online spare memory is configured through RBSU.
NOTE: Mirrored Memory uses mirrored banks to provide a high level of memory redundancy. Customer chooses to implement or not: User selectable via BIOS and default is off.


Following are memory options available from HP:


1 GB FBD PC2-5300 2 x 512 MB Single Rank Kit397409-B21
2 GB FBD PC2-5300 2 x 1 GB Dual Rank Kit397411-B21
2 GB FBD PC2-5300 2 x 1 GB Low Power Single Rank Kit461826-B21
4 GB FBD PC2-5300 2 x 2 GB Dual Rank Kit 397413-B21
4 GB FBD PC2-5300 2 x 2 GB Low Power Dual Rank Kit 461828-B21
8 GB FBD PC2-5300 2 x 4 GB Dual Rank Kit 397415-B21
8 GB FBD PC2-5300 2 x 4 GB Low Power Dual Rank Kit466440-B21
16 GB FBD PC2-5300 2 x 8 GB Dual Rank Kit413015-B21
64 GB FBD PC2-5300 8 x 8 GB Dual Rank Kit495604-B21

Online spare FBDIMM configuration requirements (in addition to general configuration requirements):

  • When only bank A is being used, it must be fully populated with dual-rank FBDIMMs.
  • If banks A and C are being used, they must be fully populated.
  • If installed, bank A and bank C must contain FBDIMMs with identical part numbers.
  • If installed, bank B and bank D must also contain FBDIMMs with identical part numbers.

In online spare mode, FBDIMMs must be populated as specified in the following table:

Configuration
Branch 0
Bank A
1A and 3A
Branch 0
Bank C
2C and 4C
Branch 1
Bank B
5B and 7B
Branch 1
Bank D
6D and 8D
1*
X
-
-
-
2
X
X
-
-
3
X
X
X
X
* Configuration 1 is only supported if using bank A, populated with dual-rank FBDIMMs.

Mirrored memory FBDIMMs configuration requirements (in addition to general configuration requirements):

  • Banks A and B must be fully populated.
  • Bank A and bank B must contain FBDIMMs with identical part numbers. If installed, bank C and bank D must also contain FBDIMMs with identical part numbers.

When using mirrored memory mode, FBDIMMs must be populated as specified in the following table:

Configuration
Bank A
1A and 3A
Bank B
5B and 7B
Bank C
2C and 4C
Bank D
6D and 8D
1
X
X
-
-
2
X
X
X
X
Storage
1-6 6 x SFF SAS Hot Pluggable Hard Drive Bays
A Slimline Bay: Optional optical or floppy drive

Drive Support


Quantity
Supported

Position
Supported


Controller

Removable Media


Slimline 1.44-MB Diskette Drive

Up to 1
A
 Integrated

Slimline 24x IDE CD-ROM Drive
Up to 1
A
 Integrated IDE
Slimline DVD-ROM Drive (8x/24x) Option Kit (Servers)
Up to 1
A
Integrated IDE
Slimline DVD/CD-RW Combo Option Kit
Up to 1
A
Integrated IDE
Slimline DVD-RW Drive (8X) Option Kit
Up to 1
A
Integrated IDE
Hard Drives
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
SAS Hot Plug SFF Enterprise (ENT) Drives

Quantity
Supported
Position
Supported

Controller
300GB 6G SAS 10K DP 300GB 3G SAS 10K DP 146GB 6G SAS 10K DP
146GB 3G SAS 15K DP
146GB 3G SAS 10K DP
72GB 3G SAS 15K DP
72GB 3G SAS 10K DP
6
1-6
 HP Smart Array E200i/64MB Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400i/512MB BBWC Controller
HP Smart Array P400i/256MB Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller
Please see NOTES below regarding hard drive quantity supported by Smart Array Controller.
NOTE: The Smart Array E200i Controller can support a maximum of 4 hard drives.
NOTE: The Smart Array P400i Controller can support a maximum of 6 hard drives. To support drives 5 and 6, the optional HP Mini SAS 4i 13.4 inch/0.35 m cable is required (PN 399546-B21).
NOTE: The Smart Array P600 Controller requires HP SAS 4i to Mini SAS 4i 31 inch/.79 meter cable (PN 411100-B21).
SAS Hot Plug SFF Midline (MDL) Drives

Quantity
Supported
Position
Supported

Controller
500GB 6G SAS 7.2K DP
6
1-6
 HP Smart Array E200i/64MB Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400i/512MB BBWC Controller
HP Smart Array P400i/256MB Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller
Please see NOTES below regarding hard drive quantity supported by Smart Array Controller.
SATA Hot Plug SFF Midline (MDL) Drives

Quantity
Supported
Position
Supported

Controller
500GB 3G SATA 7.2K
160GB 3G SATA 7.2K
6
1-6
 HP Smart Array E200i/64MB Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400i/512MB BBWC Controller
HP Smart Array P400i/256MB Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller
Please see NOTES below regarding hard drive quantity supported by Smart Array Controller.
SATA Hot Plug SFF Entry (ETY) Drives

Quantity
Supported
Position
Supported
Controller
250GB 3G SATA 5.4K
120GB 1.5G SATA 5.4K
6
1-6
 HP 8 Internal Port SAS HBA with RAID
NOTE: Transfer rate: 1.5 Gb/s SATA, 3 Gb/s SAS.
HP SC44Ge Host Bus Adapter
NOTE: When using the SC44Ge with SATA Hard Drives, 1.5G SATA Hard Drives are required. Transfer rate: 1.5 Gb/s SATA, 3 Gb/s SAS.
HP Smart Array E200i/64MB Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400i/512MB BBWC Controller
HP Smart Array P400i/256MB Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller
Please see NOTES below regarding hard drive quantity supported by Smart Array Controller.
NOTE: The Smart Array E200i Controller can support a maximum of 4 hard drives.
NOTE: The Smart Array P400i Controller can support a maximum of 6 hard drives. To support drives 5 and 6, the optional HP Mini SAS 4i 13.4 inch/0.35 m cable is required (PN 399546-B21).
NOTE: The Smart Array P600 Controller requires HP SAS 4i to Mini SAS 4i 31 inch/.79 meter cable (PN 411100-B21).
SATA Hot Plug Midline (MDL) Solid State Drives

Quantity
Supported
Position
Supported

Controller
60GB 3.0G SATA SSD
120GB 3.0G SATA SSD
6
1-6
 HP 8 Internal Port SAS HBA with RAID
NOTE: Transfer rate: 1.5 Gb/s SATA, 3 Gb/s SAS.
HP SC44Ge Host Bus Adapter
NOTE: When using the SC44Ge with SATA Hard Drives, 1.5G SATA Hard Drives are required. Transfer rate: 1.5 Gb/s SATA, 3 Gb/s SAS.
HP Smart Array E200i/64MB Controller
HP Smart Array E500/256MB Controller
HP Smart Array P400i/512MB BBWC Controller
HP Smart Array P400i/256MB Controller
HP Smart Array P600/256 BBWC Controller
HP Smart Array P800/512 BBWC Controller
Please see NOTES below regarding hard drive quantity supported by Smart Array Controller.
External Storage

Quantity
Supported

Position
Supported


Host Controller or Adapter

20 Modular Smart Array

Please see the QuickSpecs to determine configuration requirements

External
Smart Array 6402/128 Controller
Smart Array 6404/256 Controller
Smart Array 642 Controller
50 Modular Smart Array
Up to 2
External
HP Smart Array P600/256 BBWC Controller
Up to 4
External
HP Smart Array E500/256MB Controller
HP Smart Array P800/512 BBWC Controller
60 Modular Smart Array
Up to 4
External
HP Smart Array P600/256 BBWC Controller
Up to 8
External
HP Smart Array E500/256MB Controller
HP Smart Array P800/512 BBWC Controller
70 Modular Smart Array
Up to 2
External
HP Smart Array P600/256 BBWC Controller
Up to 4
External
HP Smart Array E500/256MB Controller
HP Smart Array P800/512 BBWC Controller
HP 2000sa Modular Smart Array ControllerUp to 4ExternalHP SC08Ge Host Bus Adapter
Tape and Disk-Based Backup

NOTE: For a complete listing of compatible tape and disk-based backup offerings, please visit: www.hp.com/go/connect


Position
Supported
Controller
Controller Part Number

HP StorageWorks SCSI Tape Drives, External
LTO-1 Ultrium 232
LTO-2 Ultrium 448
LTO-3 Ultrium 960
LTO-3 Ultrium 920
LTO-4 Ultrium 1760
LTO-4 Ultrium 1840
DAT 40
DAT 72
DAT 160
1U Rack-Mount Kit
3U Rack-Mount Kit
External
 HP SC11Xe Host Bus Adapter
412911-B21

HP StorageWorks USB Tape Drives, External
DAT 40 USB
DAT 72 USB
DAT 160 USB
1U Rack-Mount Kit
External
 USB 2.0 Port
N/A

HP StorageWorks SAS Tape Drives, External
DAT 160 SAS
LTO-2 Ultrium 448 SAS
LTO-3 Ultrium 920 SAS
LTO-4 Ultrium 1760 SAS
LTO-4 Ultrium 1840 SAS
1U Rack-Mount Kit
3U Rack-Mount Kit

External

 HP SC44Ge Host Bus Adapter
416096-B21

HP StorageWorks SCSI Tape Automation, External
DAT 72x10 Autoloader 1/8 G2 Autoloader
MSL2024
MSL4048
MSL8096
MSL6000
External
 HP SC11Xe Host Bus Adapter
412911-B21
HP U320e SCSI Host Bus Adapter
NOTE: Recommended for MSL tape libraries.
AH627A



HP StorageWorks SAS Tape Automation, External
1/8 G2 Autoloader
MSL2024
MSL4048
MSL8096
External
 HP SC44Ge Host Bus Adapter
416096-B21


HP StorageWorks Fibre Tape Automation, External
MSL2024
MSL4048
MSL8096
MSL6000
External

Please consult the EBS connectivity matrix at: http://www.hp.com/go/ebs for detailed connectivity information.

N/A


HP StorageWorks RDX Removable Disk Backup System
RDX160
RDX320
RDX500		 External USB 2.0 Port N/A

HP StorageWorks D2D Backup Systems
D2D120
D2D130
D2D2500i
D2D4000i
External
 Embedded Network Controller
N/A
Power Specifications
Part Number - AC 399542-B21
Operational Input Voltage Range (V rms) 90 to 264
Frequency Range (Nominal) (Hz) 47 to 63 (50/60)
Nominal Input Voltage (Vrms) 100 120 208 220 230 240
Max Rated Output Wattage Rating 700 700 700 700 700 700
Nominal Input Current (A rms) 8.5 7 4 3.77 3.6 3.4
Max Rated Input Wattage Rating (Watts) 833 823 815 813 811 800
Max. Rated VA (Volt-Amp) 850 840 832 829 828 816
Efficiency (%) 83.5 84 86 86 87 87.5
Power Factor 0.98 0.98 0.98 0.98 0.98 0.98
Leakage Current (mA) 0.35 0.41 0.71 0.78 0.81 0.85
Max. Inrush Current (A peak) 30 30 30 30 30 30
Max. Inrush Current duration (mS) 3 3 3 3 3 3
NOTE: To review typical system power ratings use the HP Power Advisor which is available online located at url: www.hp.com/go/proliant-energy-efficient or www.hp.com/go/hppoweradvisor

To drill down to calculators:
- Click on: "ProLiant Servers"
- Click on the Server of interest. Example: DL360 G5
- Click on: "Power Calculator" link. (You may need to scroll down to see it)
Technical Specifications
System Unit Dimensions (H x W x D)
(with bezel)		 1.70 x 16.78 x 27.25 in (4.32 x 42.62 x 69.22 cm)
Weight
(approximate)		Maximum
(all hard drives, power supplies, and processors installed)		39.5 lb (17.92 kg)
Minimum
(one hard drive, power supply, and processor installed)		32 lb (14.51 kg)
Input Requirements
(per power supply)		Rated Line Voltage100 to 240 VAC
Rated Input Current
7.1 Amps (at 120VAC) to 3.5 Amps (at 240 VAC)
Rated Input Frequency50 to 60 Hz
Rated Input Power852 W
BTU Rating Maximum2910 BTU / hr (at 120 VAC), 2870 (at 240 VAC)
Power Specifications NOTE: To review typical system power ratings use the HP Power Advisor which is available online located at url: www.hp.com/go/proliant-energy-efficient or www.hp.com/go/hppoweradvisor

- Click on the system of interest. Example: DL360 G5
- Follow the instructions of the next screens.
Power Supply Output
(per power supply)		 Rated Steady-State Power

700 W (at 100 VAC),
700 W (at 200 VAC)
Maximum Peak Power 700 W (at 100 VAC),
700 W (at 200 VAC)
System Inlet Temperature Operating

10° to 35° C (50° to 95° F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8° F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10° C/hr (18° F/hr). The upper limit may be limited by the type and number of options installed.
System performance may be reduced if operating with a fan fault or above 30° C (86° F).
Non-operating-40 to 70C (-40 to 158F). Maximum rate of change is 20°C/hr (36°F/hr).
Relative Humidity
(non-condensing)		 Operating

10 to 90% relative humidity (Rh), 28° C (82.4° F) maximum wet bulb temperature, non-condensing.
Non-operating5 to 95% relative humidity (Rh), 38.7° C (101.7° F) maximum wet bulb temperature, non-condensing.
Altitude Operating3050 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Non-operating9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).
Acoustic NoiseListed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109).
Idle
L WAd
 6.4 B
L pAm
49 dBA
Operating
L WAd
6.4 B
L pAm
49 dBA
Emissions Classification (EMC)FCC RatingClass A
Normative StandardsCISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1
NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.
Smart Array E200i Controller Disk Drive and Enclosure Interface3G SAS (Serial Attached SCSI)
1.5G SATA (Serial Advanced Technology Attachment)
SAS Connectors 2 internal (SFF8484) x4 wide port connectors
Cache Memory SpeedDDR-1/266 MHz provides up to 4.2 GB/s maximum bandwidth.
Server Interfacex4 2.5G PCIe provides 2GB/s maximum bandwidth.
SAS Speedx8 3G SAS provides 2.4GB/s maximum bandwidth.
Cache Memory40-bit 64MB or 128MB cache: ECC protection, battery-backed, and transportable
Logical Volumes SupportedUp to 32 logical volumes
Maximum Volume Capacity3TB (6 x 500GB)
Host Memory Addressing64-bit, supporting greater than 4GB server memory space
RAID Support RAID 5 (Distributed Data Guarding) requires 128MB BBWC option
RAID 1, 1+0 (Striping & Mirroring)
RAID 0 (Striping)
Upgradeable FirmwareUpgradeable Firmware
Smart Array P400i Controller Disk Drive and Enclosure Interface 3G SAS (Serial Attached SCSI)
1.5G SATA (Serial Advanced Technology Attachment)
SAS Connectors 2 internal (SFF8484) x4 wide port connectors
Cache Memory SpeedDDR2-533MHz with 40 or 72-bit wide bus provides up to 4.2 GB/s maximum bandwidth.
Server Interfacex8 2.5G PCIe provides 2GB/s maximum bandwidth.
SAS Speedx8 3G SAS provides 2.4GB/s maximum bandwidth.
Cache Memory40-bit 256MB cache (72-bit 512MB module upgrades available); ECC protection, battery-backed, and transportable
Logical Drives SupportedUp to 32 logical drives
Maximum Logical Drive Capacity3 TB (6 x 500GB)
Host Memory Addressing64-bit, supporting greater than 4GB server memory space
RAID SupportRAID 6 with ADG (Advanced Data Guarding) requires Battery Backed Write Cache Upgrade
RAID 5 (Distributed Data Guarding)
RAID 1+0 (Striping & Mirroring)
RAID 0 (Striping)
Upgradeable FirmwareUpgradeable Firmware with recovery ROM feature
Embedded NC373i Multifunction Gigabit Server Adapters Network Interface 10/100/1000-T
Compatibility EEE 802.3 10Base-T
IEEE 802.3ab 1000Base-T
IEEE 802.3u 100Base-TX
Data Transfer Method PCI Express, four lanes (x4)
Network Transfer Rate 10Base-T (Half-Duplex) 10 Mb/s
10Base-T (Full-Duplex) 20 Mb/s
100Base-TX (Half-Duplex) 100 Mb/s
100Base-TX (Full-Duplex) 200 Mb/s
1000Base-TX (Half and Full-Duplex) 2000 Mb/s
Connector RJ-45
Cable Support 10Base-T Categories 3, 4 or 5 UTP up to 328 ft (100 m)
10/100/1000 Base-TX Category 5 UTP up to 328 ft (100 m)
Environment-friendly Products and ApproachEnd-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.



Changes

QuickSpecs Changes

HP ProLiant DL360 Generation 5 (G5)
November 23, 2009 - From Version 66 to 67
Removed
Removed 580385-B21.
November 16, 2009 - From Version 65 to 66
Changed
Changes were made throughout the QuickSpec.
September 18, 2009 - From Version 64 to 65
Changed
Changes affected the North America and Canada versions only. Just the date and version were changed in the Worldwide version.
September 14, 2009 - From Version 63 to 64
Changed
Changes were made throughout the QuickSpec.
July 17, 2009 - From Version 62 to 63
Changed
  • Increased Hot Plug Serial ATA (SATA) Maximum Internal Storage to 3.0TB
  • Combined HP Insight Control (ICE) suites and ProLiant Onboard Administrator into Core Infrastructure Management in the Standard Features section
  • Completely revised UPS and PDU Power Cord Matrix, Rack Kit and Telco Rack Support in the Standard Features section
  • Updated Communications and Power Supplies in the Core Options section and Hard Drives in the Core Options and Storage sections
  • Revised the Additional Options section throughout
  • Removed Server Management Stand Alone Management and HP Serviceguard for Linux from the Standard Features section
June 2, 2009 - From Version 61 to 62
Added
  • HP 146GB 6G SAS 15k SFF and HP 72GB 6G SAS 15k SFF to Hard Drives in the Core Options and Storage sections
  • NOTE to HP NC522SFP Dual Port 10GbE Server Adapter for Communications in the Core Options section and HP SC11Xe Host Bus Adapter for Storage Controllers and HP U320e SCSI Host Bus Adapter for StorageWorks Options in the Additional Options section
  • HP StorageWorks D2D2502i and D2D2504i Backup Systems to Disk-Based Backup in the Additional Options section
Removed
  • Small Form Factor (SFF) SATA Hot Plug Drives from Hard Drives in the Core Options and Storage sections
  • SCSI Rack-Mount Tape Solutions from Tape Drives in the Additional Options section
  • HP StorageWorks RDX160 and RDX320 Internal Removable Disk Backup Systems from Disk-Based Backup in the Additional Options section
  • HP StorageWorks DAT Autoloader and HP StorageWorks 1/8 G2 LTO-2 Ultrium 448 Tape Autoloader from Tape Autoloaders in the Additional Options section
  • HP StorageWorks MSL2024/MSL4048 1 LTO-4 Ultrium 1840 SCSI Drive Libraries, HP StorageWorks MSL2024/MSL4048 1 LTO-3 Ultrium 960 SCSI Drive Libraries and HP StorageWorks MSL2024 1 LTO-2 Ultrium 448 SCSI Drive Library from Tape Libraries in the Additional Options section
April 27, 2009 - From Version 60 to 61
Changed
OS Support was changed to Operating Systems and Virtualization Software Support for ProLiant Servers in the Overview and Standard Features sections, High Availability Cluster Options was completely revised in the Additional Options section, Voltage was added to HP R3000 UPS and NOTE to Uninterruptible Power Systems - Rack in the Additional Options section and Server console switch 0x2x8 and 0x2x16 were added to HP KVM Switch Options in the Additional Options section.
March 30, 2009 - From Version 59 to 60
Added
  • HP ProLiant Onboard Administrator to the Standard Features section
  • 300 GB 6G Hard Drive, 146 GB 6G Hard Drive and 146 GB 3G 15k Hard Drive to the Core Options and Storage sections
  • HP NC522SFP Server Adapter to Communications in the Core Options section
  • NOTE to HP Specific Options in the Additional Options section
Changed
  • Management in the Overview section
  • Increased Hot Plug Serial Attached SCSI Internal Maximum Storage in the Standard Featuers and throughout the Models section
  • Completely revised HP Insight Control suite and Server Management Stand Alone Software Products in the Standard Features and Additional Options sections
  • NOTE for Step 1 of the Configuration Information section, Tape and Disk-Based Backup in the Storage section and Power Specifications
  • Removed Integrated hypervisors from the Overview and Configuration Information sections, Remote Management from the Standard Features section and HP NC510 Server Adapter from Communications in the Core Options section
February 5, 2009 - From Version 58 to 59
Removed
3.5" SATA Hot Plug Drives from the Hard Drives in the Options section.
January 26, 2009 - From Version 57 to 58
Changed
  • Updated HP Insight Control Management Suite and Server Management Stand Alone Software Product in the Standard Features and Options sections and HP Rack 10000 G2 Series in the Options section
  • Completely revised Core Infrastructure Management and HP Serviceguard for Linux in the Standard Features section
Removed
  • Quad-Core Intel Xeon Processor X5450 from Processors in the Models section
  • HP IB 4X SDR PCI-e single PORT HCA and HP IB 4X DDR PCI-e Single PORT HCA from HPC Specific Options in the Options section
  • HP 256MB USB 2.0 Floppy Drive Key from USB Options in the Options section
  • HP Rack 10000 Series from the Options section
December 15, 2008 - From Version 56 to 57
Changed
  • Revised the HP Insight Control Management Suite in the Standard Features section
  • HP ProLiant Essentials Integrated Lights-Out (iLO 2) Advanced Pack in Server Management Stand Alone Software Product in the Standard Features and Options sections
  • URL for NOTES in OS Support in the Standard Features section
  • Completely revised Remote Management in the Standard Features section and Hard Drives in the Options and Storage sections
  • HP SC44Ge Host Bus Adapter and HP 8 Internal Port SAS HBA with RAID in Storage Controllers in the Options section
November 17, 2008 - From Version 55 to 56
Added
  • HP Insight Dynamics - VSE to Server Management Stand Alone Software Product in the Standard Features section
  • Microsoft Windows Small Business Server 2008 and Essentials Server 2008 and Oracle Enterprise Linux (OEL) to OS Support in the Standard Features section
  • HP RDX500 Ext. Removable Disk Backup System to Disk-Based Backup in the Options section
Changed
  • Processors, Cache Memory and Memory within the Models section
  • Processors in Step 2 and Performance Racks in Step 3 of the Configuration Information - Factory Integrated Models section
Removed
  • "Supported Summer 2008" from SG/LX in Red Hat and SUSE Xen Hosts (DOMO) in HP Serviceguard for Linux in the Standard Features section
  • DL360R05 E5345 Model from the Models section
  • HP StorageWorks MSL4048 1 LTO-3 Ultrium 448 SCSI Drive Library from Tape Libraries in the Options section
October 23, 2008 - From Version 54 to 55
Removed
Removed the first note in the Standard Features section due to an invalid link.
October 17, 2008 - From Version 53 to 54
Changed

Memory section for the High Efficiency Models in the Models section.

September 15, 2008 - From Version 52 to 53
Changed

Changes were made to the following sections:

  • Overview
    • What's New
    • At A Glance
  • Standard Features
    • Processor
    • Maximum Internal Storage Type
    • HP Insight Control Environment Management Suite
    • HP Serviceguard for Linux (SGLX)
    • OS Support
  • Models (all sections)
  • Configuration Information - Factory Integrated Models / Step Two
  • Options
    • HP ProLiant DL360 G5 Unique Options
    • HP Insight Control Environment Management Suite
    • Processor
    • Hard Drives
    • Tape Drives
    • Disk-Based Backup
    • Tape Autoloaders
    • Tape Libraries
August 27, 2008 - From Version 51 to 52
Changed
Changed the Product Description for the HP 120GB SFF SATA Hot Plug Entry (ETY) Drive in the Hard Drive section of the Options.
August 1, 2008 - From Version 50 to 51
Changed
Corrected the Power Calculator link in the Power Specifications section and the System Unit section of the Technical Specifications.
July 18, 2008 - From Version 49 to 50
Added
HP 2000sa Modular Smart Array Controller to the Options and External Storage sections.
July 14, 2008 - From Version 48 to 49
Added
  • BTO Performance Model with E5450 Intel Processor
  • 64 GB of Memory
  • HP Insight Dynamics - VSE
  • SAS HBA Models
  • RDX Removable Disk Backup
    •
Removed
  • RDMA Pack from Server Management Stand Alone
  • Tape Drives
  • Rack Mounted 17" Monitor
  • HP KVM Switch Options models
    •
June 10, 2008 - From Version 47 to 48
Changed
Changes affected the North America and Canada versions only. Just the date and version were changed in the Worldwide version.
May 28, 2008 - From Version 46 to 47
Removed
Removed HP IB 4x DDR PCI-e Single Port HCA, Part #448398-B21, from HPC Specific Options in the Options section.
May 14, 2008 - From Version 45 to 46
Changed
Changes were made within the QuickSpec including, updating Memory throughout and adding a chart to the Power Specifications section.
May 12, 2008 - From Version 44 to 45
Changed
Changes were made throughout the Overview, Standard Features, Configuration Information, Options and Storage sections.
April 25, 2008 - From Version 43 to 44
Changed
A small change was made to the Options/Storage Controllers section.
April 11, 2008 - From Version 42 to 43
Changed
A small change was made to the Standard Features/Expansion Slots section.
March 31, 2008 - From Version 41 to 42
Changed
Changes were made to the Overview, Standard Features, Models, Configuration Information, Options, Storage and Technical Specifications sections.
Removed
ProLiant Cluster Starter Kit Part #364023-B-22 was removed from Cluster Options in the Options section.
February 29, 2008 - From Version 40 to 41
Added
Microsoft Windows Server 2008 was added to the Standard Features/OS Support section.
Changed
One of the NOTE's was changed within the Standard Feature/OS Support section.
February 15, 2008 - From Version 39 to 40
Changed
Changes made to the North America and Canada QuickSpecs only.
February 11, 2008 - From Version 38 to 39
Changed
Changes were made in the Standard Feaures, Models, Options, Storage and Technical Specifications sections.
January 31, 2008 - From Version 37 to 38
Changed
Changed an invalid part number in the Options section.
January 18, 2008 - From Version 36 to 37
Changed
Changes were made in the Technical Specifications section only.
January 16, 2008 - From Version 35 to 36
Changed
Changes were made in the models section only.
January 15, 2008 - From Version 34 to 35
Changed
Changes were made in the models section only.
January 14, 2008 - From Version 33 to 34
Changed
Changes were made throughout the QuickSpec.
December 21, 2007 - From Version 32 to 33
Added
"Microsoft Windows Small Business Server 2003, R2" was added to the Standard Features/Operating System section.
December 14, 2007 - From Version 31 to 32
Added
Notes were added to Configuration/Step Two, Options/Memory and Memory/Part Numbers sections.
November 27, 2007 - From Version 30 to 31
Removed
The HP Proliant Smart Buys option was deleted from the Standard Features section. A note in the Models section was also deleted to reflect this change.
November 14, 2007 - From Version 29 to 30
Changed
Changes made to the North America and Canada QuickSpecs only.
November 12, 2007 - From Version 28 to 29
Changed
Changes made throughout the entire QuickSpec.
October 19, 2007 - From Version 27 to 28
Changed
In the Memory section under DL360 G5 Performance models, changed the text of the 2nd paragraph to "UWhen upgrading memory, DIMMs 1A and 3A must match. DIMMs 5B and 7B, DIMMs 2C and 4C, and DIMMs 6D and 8D must match and must be installed as a pair. When DIMMs 1A and 2A are populated the system is automatically configured for 2:1 interleaving. When all 4 banks are populated the system is automatically configured for 4:1 interleaving. When four, six, or eight DIMMs are populated with identical DIMMs the system is automatically configured for bank interleaving."
September 10, 2007 - From Version 26 to 27
Changed
Changes made to the North America and Canada QuickSpecs only.
September 5, 2007 - From Version 25 to 26
Changed
Changes made throughout the entire QuickSpec.
August 3, 2007 - From Version 24 to 25
Changed
Change made to the Storage Controllers section of Options only.
July 25, 2007 - From Version 23 to 24
Changed
Changes made to the North America and Canada QuickSpecs only.
July 9, 2007 - From Version 22 to 23
Changed
Changes made throughout the Overview, Standard Features, Models, and Options sections.
May 14, 2007 - From Version 21 to 22
Changed
Changes made throughout the Overview, Standard Features, Models, Options and Memory sections.
May 3, 2007 - From Version 20 to 21
Changed
Corrected an error in the Processor section of Standard Features.
April 13, 2007 - From Version 19 to 20
Changed
Corrected a link in the Hard Drives section of Options.
March 30, 2007 - From Version 18 to 19
Changed
Changed a part number description in Step 2 of the Configuration Information section only.
March 26, 2007 - From Version 17 to 18
Changed
Changes made throughout the QuickSpec. All sections received changes except for Memory and Technical Specifications.
January 19, 2007 - From Version 16 to 17
Added
Added a NOTE to the Server Power Cords section.  Added the Rack Kits section to Standard Features.  And added Part Number 435960-B21 to Step 3 of the CTO section.
January 16, 2007 - From Version 15 to 16
Changed
Changes were made throughout the document to reflect the addition of 4 Quad-Core Intel Xeon Processors and the 72GB 3G SAS 15K SFF SP and 36GB 3G SAS 15K SFF SP Hard Drives.
December 21, 2006 - From Version 14 to 15
Added
Added Part Number 356963-B21 to the Optical Drives section of Options.
December 19, 2006 - From Version 13 to 14
Changed
Corrected the processor information in the Models section for model # 438312-xx1.
November 17, 2006 - From Version 12 to 13
Changed
Changes made to Overview Image callout #9 and to the Storage Controllers section of Options.
November 14, 2006 - From Version 11 to 12
Changed
Changes included the addition of new processors, new hard drives, tape drives, and tape libraries.   These changes affected several sections in the document. The Communications section of Options was also edited extensively, as well as the StorageWorks Options section.
October 6, 2006 - From Version 10 to 11
Changed
Changes made within the Standard Features and Models sections only.
September 29, 2006 - From Version 9 to 10
Changed
Changes made within the Standard Features, Options and Technical Specifications sections only.
September 25, 2006 - From Version 8 to 9
Changed
Changes made throughout the entire QuickSpec.
September 08, 2006 - From Version 7 to 8
Changed
In STANDARD FEATURES, made changes to the Note in "Processors".  In the standard MEMORY table, changed slot 1 to 4GB maximum.
August 18, 2006 - From Version 6 to 7
Changed
Changed P/N 354676-B21 to 405154-B21 in the Tape Drive sections of OPTIONS and STORAGE.
August 11, 2006 - From Version 5 to 6
Removed
Deleted "NOTE: For more information" and URL from Expansion Slots in STANDARD FEATURES.
July 28, 2006 - From Version 4 to 5
Changed
Changes made in the Optical Drives section of Options only.
July 14, 2006 - From Version 3 to 4
Changed
Changes made to the Security section of Standard Features only.
July 7, 2006 - From Version 2 to 3
Removed
Removed part number 356963-B21 from the Optical Drives section.
June 30, 2006 - From Version 1 to 2
Changed
Corrected an error in the At A Glance section of Overview.
DA-12476 67 - Version 67 - November 23, 2009

© Copyright 2009 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.
Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation. Intel is a US registered trademark of Intel Corporation.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.

c04284194 - Worldwide - Version 67 - November 23, 2009
