• Processors:
  • Quad-Core and Dual-Core Intel® Xeon® processors for blazing performance; systems support up to 2 processors
  • 1333/1066/667 MHz front side bus (FSB)
  • Intel® 5000Z chipset
• Memory:
  • Eight PC2-5300 Fully Buffered DIMMs (DDR2 667) sockets with online-spare support for cost-effective memory configuration and expansion and 2:1 interleaving
  • Up to 16 GB of memory supported on Dual-Core 5000 and 5100 series
  • Up to 32 GB of memory supported on Dual-Core 5200 series, Quad-Core 5300 and 5400 series
• Storage Controllers:
  • Entry Models: HP Smart Array E200i/64MB Controller (integrated SAS/SATA Hot-Plug Controller with RAID 0/1/1+0 support)
    • 128MB BBWC optional upgrade kit for RAID 5 support also available
  • Base Models: HP Smart Array E200i/128 BBWC Controller (RAID 0/1/1+0/5)
• Internal Drive Support:

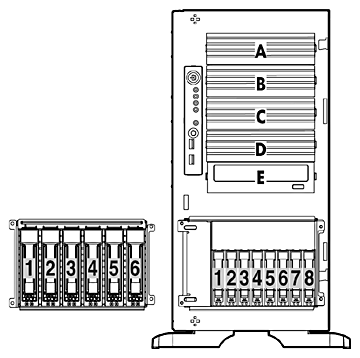

  • Up to eight SFF (2.5") or six LFF (3.5") Hot Plug Serial Attached SCSI (SAS) or Serial-ATA (SATA) hard drives
  • Maximum of 6TB of internal storage capacity (using Hot-Plug SATA drives)
• Network Controller:
  • Embedded NC373i Multifunction Gigabit Network Adapter with TCP/IP Offload Engine, including support for Accelerated iSCSI through an optional Licensing Kit
• Expansion Slots:
  • Six total expansion slots
  • One 64-bit/133-MHz PCI-X; two 64-bit/100-MHz PCI-X; three x8 PCI Express (x4 speed)
  • Optional PCI-X Expander provides additional two 64-bit/100-MHz PCI-X slots by converting a single PCI Express slot
  • A single x8 PCI Express slot with x8 bus speed can be achieved by attaching the x4/x8 PCIE Bus Expander option kit. (Please see the chart and notes in the Expansion Slots under Standard Features below for more details)
• USB Ports:
  • Six USB 2.0 ports: (2) front; (2) rear; (2) internal
• Redundancy:
  • Optional Hot plug redundant power supplies
  • Support for optional redundant system fans
• Infrastructure Management:
  • Convenient slide-out Systems Insight Display for quick and easy front view server diagnostics, along with status LEDs, Automatic Server Recovery (ASR), ROM Based Setup Utility (RBSU)
  • HP ProLiant Onboard Administrator (powered by the HP Integrated Lights-Out 2 management processor) for simplified server setup, health monitoring and recovery, power and thermal control, and lights-out remote administration.
  • HP Insight Control a product option, delivers essential infrastructure management that can help save time and money by making it easy to deploy, migrate, monitor, control and optimize your IT infrastructure through a single, simple management console. Insight Control supports both Windows and Linux-based central management servers.
  • HP Insight Dynamics for ProLiant, a product option, is an integrated command center that enables IT Staff personnel to continuously analyze and optimize a converged infrastructure, while automating and reducing the cost of common data center tasks by as much as 40 percent. This ultimately enables them to dynamically keep pace with the organization's changing business requirements.
• Operating Systems and Virtualization Software Support for ProLiant Servers:

  • Supports Windows, RHEL, SLES, OEL, NetWare

• Deployment/Serviceability:
  • Optional parallel and second serial port available without using a PCI slot
  • Tool-free chassis entry and component access
  • Tool-free motherboard removal
  • Universal rail solution supporting both square and round hole rack environments
  • Customer Self Repair (CSR): HP products are designed with many CSR parts to minimize repair time and allow for greater flexibility in performing defective parts replacement
• Warranty:
  • This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
  • NOTE: Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have HP replace Optional CSR parts at no charge. Additional information regarding worldwide limited warranty and technical support is available at: http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html

Integrated ATI ES1000, 32MB video standard

• 16 bit color: maximum resolution of 1600 x 1200
• 32 bit color: maximum resolution of 1280 x 1024

NOTE: Maximum resolution available via iLO 2 remote console is 1280 x 1024.

Managing the growing number of servers can be complex and expensive for your organization. IT managers need to address changing business needs with tools that meet the challenges of managing today's complex Datacenters.

HP provides management solutions that are designed to simplify a server's installation, configuration and maintenance throughout the entire server lifecycle. This provides the customer with higher levels of operational efficiency and highly reliable systems: http://www.hp.com/go/foundation.

The foundation pack includes:

• HP SmartStart
• HP Management
• HP ProLiant Firmware Maintenance

SmartStart version supported (minimum): SmartStart 7.60.
http://www.hp.com/servers/smartstart

HP ProLiant Onboard Administrator (powered by the HP Integrated Lights-Out 2 management processor) simplifies server setup, health monitoring, power and thermal control, and lights-out remote administration of ProLiant ML, DL, and BL servers. HP ProLiant Onboard Administrator functions without additional software, and can be accessed from any location via a web browser. It works hand-in-hand with HP Systems Insight Manager, Insight Control suites, and the Insight Dynamics for ProLiant helping customers unlock the value of the ProLiant platform and deliver the highest possible quality of IT service to the business. See: www.hp.com/go/ProLiantOA

HP Factory Express offers configuration, customization, integration and deployment services for HP servers and storage products. Customers can choose how their factory solutions are built, tested, integrated, shipped and deployed.

Factory Express offers service packages for simple configuration, racking, installation, complex configuration and design services as well as individual factory services, such as image loading, asset tagging, and custom packaging. HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

For more information on Factory Express services for your specific server model please contact your sales representative or go to: http://www.hp.com/go/factory-express.

The HP eConfigure-Enterprise Configurator now provides factory default racking for our HP hardware portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our valued customers. If you require "custom" rack configuration, please contact HP's Customer Business Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator

HP Care Pack services provide total care and support expertise with committed response designed to meet your IT and business needs.

HP Care Pack services include coverage for the HP branded hardware options qualified for the server and purchased at the same time or afterward that are internal to the enclosure. This also includes the 22" and smaller external monitors and tower UPS options up to 3kVA. These items will be covered at the same service level and for the same coverage period as the server. Coverage of UPS Battery is not included, and standard warranty terms & conditions apply. For servers or storage systems installed within a rack, service also covers all HP qualified rack options installed within the same rack.

To fully capitalizing on your HP ProLiant servers' capabilities requires a service partner who thoroughly understands your server technology and systems environment. HP Services, an industry leader in provision of multi vender support solutions, provides a range of support services designed to meet the varying needs of your business. Whether an SMB, or large global corporation, HP has a ProLiant server support offer to help you speedily deploy and maximize system uptime.

Recommended Service - simplify ProLiant solution implementation, maintenance, and management.

• Support - 3-Year 4-Hour response 24x7 Same Business Day Coverage only
• Deployment Service - Installation and Start up only

Enhanced Service - optimize service level to increase IT performance and availability.

• Support - 3-Year Support Plus 24 only

Refer to the information on "Installation & Start-Up" for service on ProLiant server and Microsoft or Linux O/S per the Customer Description and/or Data Sheet; to be delivered on a scheduled basis 8am-5pm, M-F, excluding HP holidays.

NOTE: For a complete listing of service offerings and information visit:
http://www.hp.com/services/proliantservices
http://www.hp.com/go/proliant/carepack

HP ML350 G5 Entry Models

Tower
Quad-Core Models
HP ML350T05 E5420 LFF
458239-001
HP ML350T05 E5410 LFF
458244-001

Rack
Quad-Core Models HP ML350R05 E5420 LFF
458240-001

HP ML350 G5 Base Models

Tower
Quad-Core Models
HP ML350T05 E5430 SFF
458238-001
HP ML350T05 E5420 SFF
458242-001
HP ML350T05 E5410 SFF
458246-001

Rack
Quad-Core Models
HP ML350R05 E5430 SFF
458237-001
HP ML350R05 E5420 SFF
458243-001

HP Smart Array P400/256 MB Controller
NOTE: SAS Controller supporting RAID 0/1/1+0/5.

Optical Drives

416096-B21

PCI Option

Port Options

252663-D71

252663-D72

252663-B21

252663-D73

Hardware Installation (Electronic)

Following are memory options available from HP:

1 GB FBD PC2-5300 2 x 512 MB Single Rank Kit

2 GB FBD PC2-5300 2 x 1 GB Dual Rank Kit

2 GB FBD PC2-5300 2 x 1 GB Low Power Single Rank Kit

4 GB FBD PC2-5300 2 x 2 GB Dual Rank Kit

4 GB FBD PC2-5300 2 x 2 GB Low Power Dual Rank Kit

8 GB FBD PC2-5300 2 x 4 GB Dual Rank Kit

8 GB FBD PC2-5300 2 x 4 GB Low Power Dual Rank Kit

Online spare memory configuration
FBDIMMs can either be single-rank or dual-rank. Certain FBDIMM configuration requirements are based on these classifications. A dual-rank FBDIMM is similar to having two separate FBDIMMs, or ranks, on the same module. Although only a single FBDIMM module, a dual-rank FBDIMM acts as two separate FBDIMMs.

In online spare mode, a single rank of memory acts as the spare memory. For single-rank FBDIMMs, the entire FBDIMM acts as the spare memory. For a dual-rank FBDIMM, only half of the FBDIMM acts as the spare memory while the other half is available for operating system and application usage.

Online spare FBDIMM configuration requirements (in addition to general configuration requirements):

• When only bank A is being used, it must be fully populated with dual-rank FBDIMMs.
• For optimum memory usage, HP recommends all FBDIMMs be the same size with the same HP part number. If different sized FBDIMMs are used, a portion of the installed memory may not be utilized.

In online spare mode, FBDIMMs must be populated as specified in the following table:

• Configuration 1 (Bank A only) is only supported if using bank A, populated with dual-rank FBDIMMs.
• After installing FBDIMMs, use RBSU to configure the system for online spare memory support.

Removable Media

External Storage

47 - 63 (50 / 60)

Efficiency (%)

Power Factor

Leakage Current (mA)

Maximum Inrush Current (A peak)

Maximum Inrush Current duration (milliseconds)

50 lb (22.7 kg)

44 lb (20.0 kg)

- Click on the system of interest. Example: ML350 G5
- Follow the instructions of the next screens.

System Inlet Temperature

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green. To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.
