Sord IS-11C

Little-known Z80 Clamshell

Resources
The Sord IS-11C is a rather uncommon Japanese laptop. I don't know too much about it yet, except that I had the opportunity to bid on seven of them a few years back and didn't. (That'll teach me!)


All text and images are copyright © 1998-2002 Roger Sinasohn
Unauthorized use or duplication is strictly prohibited.

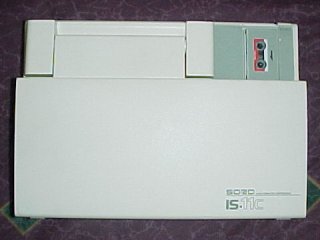

The Sord IS-11C, when closed, looks a lot like the NEC PC-8401A, except for the microcassette in the upper right corner.
The Sord IS-11C

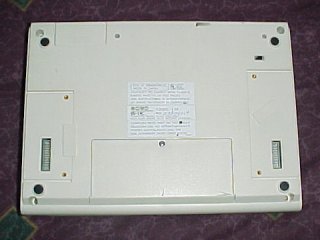

A look at the bottom of the IS-11C. Note the backup switch, printer interface, and external keyboard connector.
The Underbelly

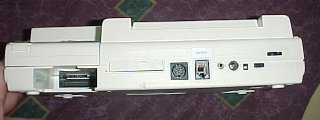

The back of the machine features expansion cartridge, printer, serial, modem, barcode reader, and power connectors, as well as the power, reset, and contrast controls.
The Back Panel

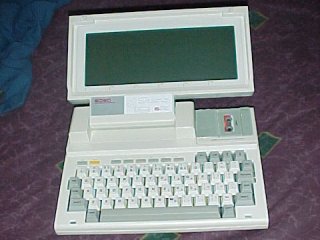

Still looking a lot like the NEC PC-8401A, the IS-11C has a full-size, albeit minimal, keyboard.
Open for Business

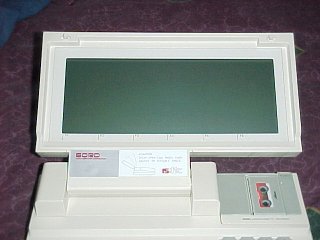

Typical for the time, the screen offered 8 lines of 80 characters.
A close-up of the screen

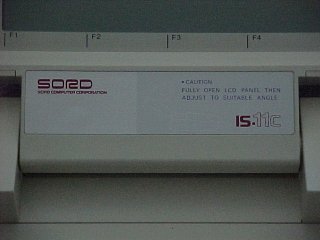

Logo and warning

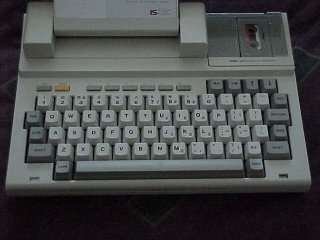

Note the six function keys across the top and the escape and reset buttons in the upper left corner.
A close-up of the keyboard

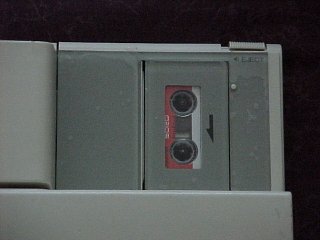

Loading programs from tape is not an enjoyable experience, but once upon a time, the microcassette was the only practical portable storage medium.
A close-up of the microcassette drive

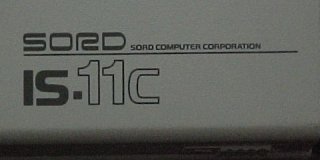

This is found on the outside of the case, on the backside of the screen.
The Sord logo

Mfr: Sord Computer Corporation
Location:
Model: IS-11C
Processor: Z80A
Speed:
Op. Sys: Proprietary
Bits:
Internal: 8
Data: 8
RAM:
Min: 80K
Max: 144K
ROM:
Input: 70-key Keyboard
Display: Mono LCD 80x8 char, 640x200 graphics
Storage:
Cassette: built-in microcassette
Floppy Disk: optional 640K FDD
Hard Disk:
Ports:
Serial: 1 RS-232C, proprietary connector
Parallel: 2 IDC connectors (16- and 34-pins)
Keyboard: Proprietary 20-pin IDC connector
Joystick:
Other: RJ-11 Phone Line, Barcode Reader
Expansion: Expansion Cartridge bay
Introduced: 1983
Discontinued:
Cost:
Physical:
Size: 11.6 x 8.3 x 3.1 inches
Weight:
Power:
Voltage: 7.2vdc 1.5A
Connector: Standard Line Cord
Polarity: + -(o- -
Peripherals:
Notes:
