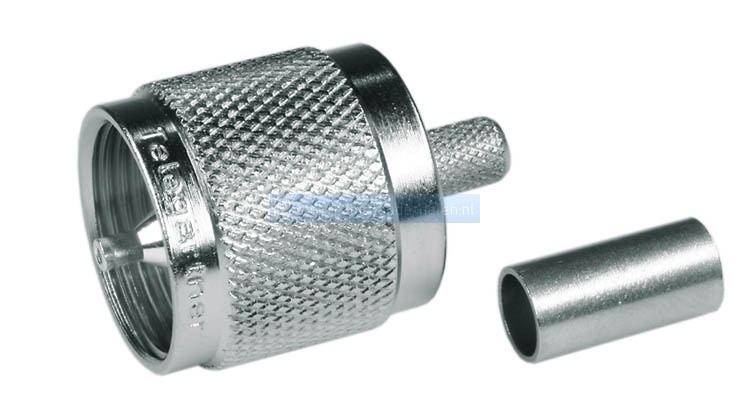

UHF-Plug crimp RG-213/U

Availability: 6

€ 5,49450

Buy 25 for € 5,15700 each and save 7%
Buy 50 for € 4,94100 each and save 11%
Buy 100 for € 4,71150 each and save 15%

Add to Wishlist

Qty:

Details

The UHF series is a low cost, low frequency connector with a screw coupling. The maximum usable frequency is limited to 200 MHz, as the impedance of the connector is not controlled.
Applications for the UHF connectors are for low-frequency communication equipment.

Specification:
Mechanical characteristics:
Materials:
Contacts:	CuZn39Pb3
Other metal parts:	CuZn39Pb3
Insulators:	PTFE, POM

Finish:
Inner conductor:	Cu2Ag5
Outer conductor:	Cu2Ni5
Other metal parts:	Cu2Ni5

Electrical characteristics:
Contact resistance:
Inner conductor:	≤ 5 mΩ
Outer conductor:	≤ 5 mΩ
Insulation resistance:	≥ 5 GΩ
Withstand voltage:	2000 Veff / 50 Hz
Operating voltage:	≤ 750 Veff / 50 Hz
Frequency range up to:	200 MHz

Thermal and climatic characteristics:
Climatic test category according to DIN IEC 68 Teil 1:	40/070/21

Cable group:	Cable type:
G1 (RG58C/U)	7806A Belden, 9907 Belden, KX 15, WCX195, RG58C/U
G5 (RG223/U)	RG223/U, RG400/U

Dimensions (mm)

Item:	for Cable group; Cable:	Termination:	Dimensions:
J01040A0006	RG 213/U	crimp / crimp	a = 18.3 / b = 32.5
