"BRAVO Series PIR Motion Detectors"


	BRAVO Series PIR Motion Detectors

FEATURES

·	Multi-level PIR signal processing†
·	Single/dual element low noise sensor
·	High level static and transient protection
·	Exceptional white light immunity
·	Excellent RF immunity
·	Temperature compensation
·	LED on/off jumper
·	Vertical adjustment
·	Super quiet operation
·	Wall, corner, or ceiling mounting
·	Attractive styling for any decor
·	5 year warranty

BRAVO2

·	Ideal for normal home, office, and industrial settings

BRAVO3

·	Accurate coverage of large 50' x 60' (15 x 18m) areas

BRAVO4

·	Quad design sensors for severe environments

BRAVO5

·	360° ceiling-mount motion detector with optional integral glass break detector

BRAVO6

·	Digital temperature compensation
·	*Dual PIR sensors with High Density Digital Analysis and multi level signal processing for better intruder catch and immunity to pets weighing up to 85lbs/38kg**

BRAVO

  Simply the best passive infrared motion detectors available in the industry! Backed by years of research and exhaustive testing, Bravo series motion detectors take advantage of microprocessor-based multi-level signal processing software and specially designed lenses to deliver superior intruder detection and reliable long-term operation while minimizing false alarms.

  For normal home and office environments, the Bravo2 is the efficient choice. For larger spaces, the Bravo3 provides expanded coverage, while the Bravo4 is especially suited for use in highly changeable conditions. The ceiling-mounted Bravo5 provides the dual benefit of uniform 360° motion detection and optional glass break detection in one housing. And Bravo6 is not only immune to large pets – its intruder detection is the best in the field.

  The Bravo series takes motion detectors to a new level of detection sensitivity, stability and false alarm immunity in residential, commercial and industrial settings.

* patent pending † patented

Bravo

Bravo2

Bravo

SPECIFICATIONS for BRAVO2, 3, & 4

Operational :

Coverage angle
(wall to wall lens)..........

90° minimum

Vertical adjustment.......

+5 to -10°

Mounting height............

6' to 12' (2 to 3.5m) nominal 7.5' (2.3m)

Walk detection speed...

0.5 to 10ft/s
(0.15 to 3.0m/s)

Alarm duration.............

2 to 3 seconds

Environmental/Immunity :

Operating temperature..

32 to 122°F (0 to 50°C)

Operating humidity.......

5% to 95% non-condensing

RF immunity................

Bravo2 & 3.................

50V/m from 0.01 to 1,200MHz

Bravo4........................

20V/m from 0.01 to 1,200MHz

Transient immunity.......

2.4kV @ 1.2 joules

Static immunity.............

25kV

White light immunity.....

20,000Lux at the detector

Electrical :

Operating voltage........

9.5 to 14.5VDC

Ripple tolerance..........

3Vpp at 12VDC

Standby current...........

16mA at 12VDC

Alarm current..............

20mA at 12VDC

Contact ratings............

100mA at 24VDC

Alarm contact series resistance....................

10ohm 0.25W

Physical :

Dimensions.................

3.5"H x 2.5"W x 1.87"D
(8.9 x 6.4 x 4.8cm)

Mounting....................

wall or corner

Color..........................

designer white, with light grey lens

Bravo2 is especially suitable for residential security systems, and all normal office and commercial applications.

MODELS

BV-200 Form A alarm contact

BV-201 Form A alarm contact & tamper switch

BV-202 Form C alarm contact & tamper switch

LENS COVERAGE
Wall-to-Wall lens......... (BV-L1)	40'L x 40'W (12.2 x 12.2m)
Corridor lens................ (BV-L2)	70'L x 6'W (21.3 x 1.8m)
Curtain lens.................. (BV-L3)	40'L x 3.5'W (12.2 x 1.1m)
Pet Alley lens............... (BV-L4)	40'L x 40'W (12.2 x 12.2m)

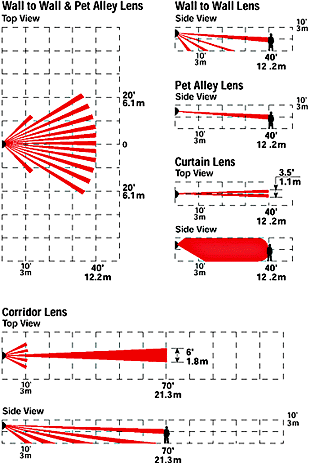

Bravo2 Lens Coverage

Bravo3

Bravo4

Bravo3 can be used for all residential, commercial and industrial applications requiring longer range sensing capability without compromising accuracy.

MODELS

BV-300 Form A alarm contact

BV-301 Form A alarm contact & tamper switch

BV-302 Form C alarm contact & tamper switch

LENS COVERAGE
Wall-to-Wall lens......... (BV-L1)	50'L x 60'W (15.2 x 18.3m)
Corridor lens................ (BV-L2)	120'L x 10.5'W (36.6 x 3.2m)
Curtain lens.................. (BV-L3)	50'L x 4.4'W (15.2 x 1.3m)
Pet Alley lens............... (BV-L4)	50'L x 60'W (15.2 x 18.3m)

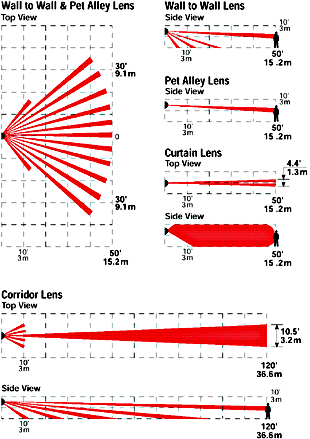

Bravo3 Lens Coverage

Bravo4 has a quad design, suitable for commercial, institutional, and industrial applications where abnormally severe or highly changeable environmental conditions are present.

MODELS

BV-400 Form A alarm contact

BV-401 Form A alarm contact & tamper switch

BV-402 Form C alarm contact & tamper switch

LENS COVERAGE
Wall-to-Wall lens......... (BV-L1)	50'L x 60'W (15.2 x 18.3m)
Corridor lens................ (BV-L2)	50'L x 5'W (18.3 x 1.5m)
Curtain lens.................. (BV-L3)	50'L x 4.4'W (15.2 x 1.3m)
Pet Alley lens............... (BV-L4)	50'L x 60'W (15.2 x 18.3m)

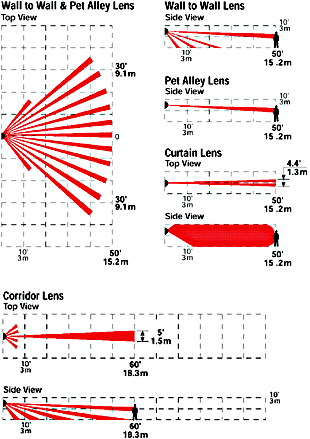

Bravo4 Lens Coverage

Bravo6

Bravo6 features dual PIR sensors incorporating High Density Digital Analysis* and multi-level signal processing with a vertically interleaving beam pattern for superior intruder detection while being immune to pets weighing up to 85lbs/38kg.

* patent pending

MODELS

BV-600

Form A alarm contact

BV-601

Form A alarm contact & tamper switch

BV-602

Form C alarm contact & tamper switch

LENS COVERAGE

Dual PIR lens pattern....

40'L x 50'W
(12.2 x 15.2 m)

SPECIFICATIONS

Operational :

Mounting height............

6' to 10' (2 to 3m)

Lens horizontal
pattern angle.................

100° minimum

Vertical adjustment.......

from +5 to -10°

Alarm duration.............

2 to 3 seconds

Walk speed..................

0.5 to 10 ft/s
(0.15 to 3.0 m/s)

Environmental/Immunity :

Operating humidity.......

5% to 95% non-condensing

RF/EMI immunity.........

10V/m 80% A.M.,
from 80 to 1,000 MHz

Transient immunity.......

2.4kV @ 1.2 joules

Static immunity.............

15kV

White light immunity.....

4kLux

Operating temperature..

32 to 122°F (0 to 50°C)

Electrical :

Operating voltage........

9.5 to 14.5VDC

Ripple tolerance..........

3Vpp at 12VDC

Standby current...........

17.5mA at 12VDC

Alarm current..............

25mA at 12VDC

Contact ratings............

100mA at 24VDC

Alarm contact series resistance....................

10ohm 0.25W

Physical :

Dimensions.................

4.9"H x 2.76"W x 1.75"D
(12.5 x 7.0 x 4.5cm)

Mounting....................

wall or corner

Color..........................

designer white, with light grey lens

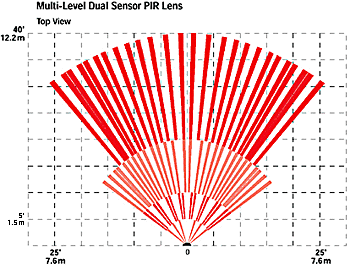

Bravo6 Multi-Level Dual PIR Lens

(For clarity, overlapping beams are not shown)

Bravo6 Multi-Level Dual PIR Lens

		PIR 1 - Top Lens
		PIR 2 - Bottom Lens
	Multi-level signal processing with a vertically interleaving beam pattern

Mounting Brackets for Bravo2, 3, 4, and 6

Both brackets allow detectors to be tilted up or down and rotated through 90° to obtain an ideal position for optimal coverage.

AFT 100 Glass Break Simulator for Bravo5

The AFT-100 Glass Break Simulator is a portable, battery operated tester that ensures reliable locating and testing of the Bravo5 with integral glass break detector.

·	generates Plate or Tempered Glass sound samples
·	3" full range speaker accurately reproduces the full range of frequencies generated by shattering glass
·	single or automatic/continuous sound (sound every 10sec) operation

The contractor shall provide infra-red motion detectors in the areas specified on the drawings. Contractor shall be responsible for determining the best mounting location in each area to provide full coverage while minimizing false alarms. Wall mount detectors shall in addition be ceiling, or corner mountable, and shall share common mounting brackets so that they are interchangeable. Mounting position shall be adjustable both vertically and horizontally so that final position may be fine tuned as required during walk-testing.

Detectors shall employ multi-level signal processing and temperature compensation for accurate detection, “even in warm environments”. They shall have high immunity to false alarms from RF, static, electrical transients, and white light.

All detectors shall carry a 5 year manufacturer’s warranty.

Motion detectors for each area shall be selected from the following to best match the coverage requirements of each area :

Bravo2
For small areas, detectors shall have 4 interchangeable lenses to provide 40' L x 40' W (12.2 x 12.2m) wall to wall coverage with or without pet alley, 70' L x 6' W (21.3 x 1.8m) corridor coverage, and 40' L x 3.5' W (12.2 x 1.1m) curtain coverage.

Bravo3
For larger commercial / residential areas, detectors shall have 4 interchangeable lenses to provide 50' L x 60' W (15.2 x 18.3m) wall to wall coverage with or without pet alley, 120' L x 10.5' W (36.6 x 3.2m) corridor coverage, and 50' L x 4.4' W (15.2 x 1.3m) curtain coverage.

Bravo4
For areas where there are abnormally severe or highly changeable environmental conditions, detectors shall have a quad element low noise sensor. Detectors shall have 4 interchangeable lenses to provide 50' L x 60' W (15.2 x 18.3m) wall to wall coverage with or without pet alley, 60' L x 5' W (18.3 x 1.5m) corridor coverage, and 50' L x 4.4' W (15.2 x 1.3m) curtain coverage.

Bravo6
For areas where maximum immunity to false alarms caused by pets is required, without a reduction in the ability to detect people, detectors shall have dual PIR sensors employing high density digital analysis and multi-level signal processing with a vertically interleaving beam pattern. Detector shall provide 40' L x 50' W (12.2 x 15.2m) wall to wall coverage.

Information in this brochure is subject to change without notice
