FlexT I/O Module/Base

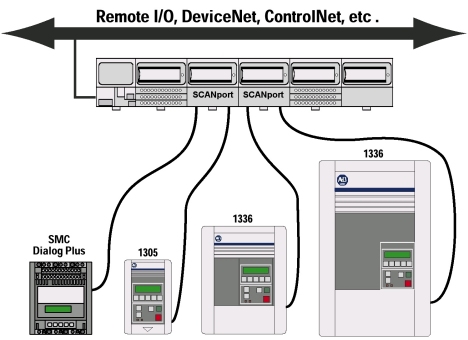

The Flex I/O to SCANport communication module provides a digital connection to an Allen-Bradley SCANport product from a Flex T I/O system. This simplifies installation and minimizes the need for discrete wiring.

• Supports all Flex I/O network options (DeviceNet, ControlNet, Remote I/O, others)
• Connect up to 2 drives per FM1/FB1 combination
• Up to 4 FM1/FB1's (8 drives) allowed per Flex network adapter
• 4 words of I/O per device
  • Inputs to Flex: Logic-Command and Speed-Reference
  • Outputs from Flex: Logic-Status and Speed-Feedback
• LEDs indicate channel and module status
• Can be combined with other Flex I/O modules on the same adapter

Part Numbers:

• 1203-FM1 Flex I/O SCANport module
• 1203-FB1 Flex I/O SCANport terminal base
  * A complete unit consists of one FM1 and one FB1
