| Place of Origin: |
Shandong China (Mainland)
|
Brand Name: |
KEYA
|
Model Number: |
MMT-220DR35AL
|
| Motor Type: |
DC Motor
|
Size: |
150*115*60MM
|
weight: |
1.3KG
|
| Speed ratio: |
80:1
|
Control model: |
Potentiometer/0-5V
|
Suit for: |
Z2 series motor/Excitation Motor
|
| input voltage: |
110/220+/-10%
|
Soft start time: |
0-10S
|
Soft stop time: |
0-10S
|
| undervoltage protection: |
Yes
|
over current protection: |
Yes
|
| Packaging Detail: | CARTON |
| Delivery Detail: | IN STOCK |

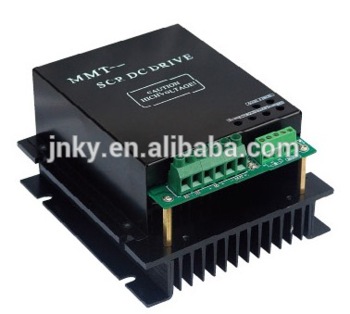

180V DC Motor Control
Dual closed loop PI adjustment,
For PMDC Motor,separate-excited DC Motor
180V DC Motor Control
MMT-220DR
serial DC motor drive adopts SCR chopper, which has unique trigger
mode, thus making it more accurate and reliable. The drive is the update
speed regulation product which develops and produces in combination
with the international standard requirements and absorbs advanced
technology experience. The drive has high performance-cost ratio because
of its excellent performance and reliable quality. (it can reach high
speed ratio even when at non-speed feedback) It is in DC motor drive
field. Currently, the serial products have been exported to many
countries and widely used in fields of domestic , food machinery, cable
equipment, , papermaking, printing, , equipment, and so on.
Product Features
1. SMT Small volume
2. Applicable to permanent-magnet, separate excitation DC motor and DC torque motor
3. Dual closed loop PI adjustment (Current and Voltage).
4. Current setting and current limiting protection
5. The speed control mode and expansive force control mode are selectable.
6. Large torque for low-speed start-up.
7. Quick stop function
8. Upper limit and Low limit can be set up to different need
9. ACCEL and DECEL function
10. Standard signal interface0 — 5V or 10K potentiometer
11. Can realize remote start and stop, Fine following performance; immediate dynamic response
12. A wide speed-regulating range (0 - max).
13. Strong mechanical features, static voltage error 1%
14. A rapid dynamic response process.(adjustable)
15. Automatic and smooth transition process during acceleration or deceleration.
16. Good excavator features, can automatically overload current limit on the current settings.
17. High reliability, compact structure and highly cost-effective.
Main Parameters
1. AC Input Voltage : 110V / 220V±10%.
2. AC Frequency (Hz):-50/60
3. Output voltage DC: 0~90V 0-110V 0-160V 0-180V 0-220V (Can be set)
3. Rated Armature current: (DC100V or 200V) 3A
4. Rated output current: 6A 8A 10A 20A 30A 35A
5. Speed adjust ratio: 80:1
6. Output voltage accuracy:≤0.1degree
7. Ambient temperature :10degree- +60degree
8. Ambient Humidity:Relative Humidity≤80RH.(Below dew point)
