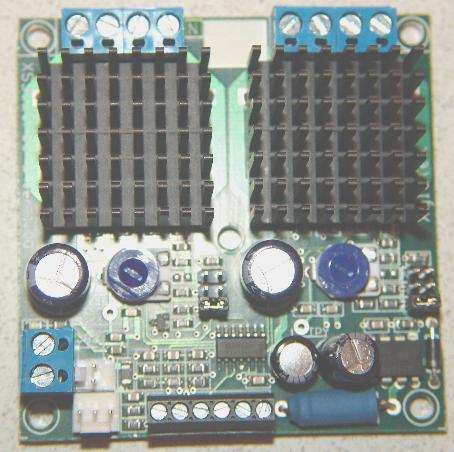

The XS-3025/8S-2 Stepper Motor Driver Board (Ver 1.00) $125.00

The Perfect Choice For Your Sherline or Taig Two Axis CNC Lathe Retrofit

Two axis bipolar drive
±2.5 Amp/Phase PWM controlled drives
up to 30 Volt (w/BEMF)
FULL, HALF, QUARTER, & EIGHTH step/Full Step
Built-in DC-DC Converter for 5 Volt Logic
Filtered and Buffered STEP & DIR Signals
Synchronous Rectification
Internal UVLO and Thermal Shutdown circuitry
Easy connect for most popular Step/Direction control software
Small Size:
Use with Mach2 (WinXP or Win2K) or TurboCNC (DOS)

click here for Drive Setup Instructions

This is a Two axis micro-stepping bi-polar PWM current regulated stepper motor driver. It can be configured to deliver up to ±2.5 Amps/phase up to a maximum of 30 Volts (including BEMF). The drive has built-in TVS (transient voltage suppression) that will help protect the device from voltage spikes in the 30+ volt range (typically caused by a disconnected motor while powered up). The drive is not warranted to withstand such treatment

Each axis is independently jumper selectable to operate in either FULL, HALF, QUARTER or EIGHTH step modes. For a typical 1.8° (200 spr) stepper motor, this means up to 1,600 steps per revolution (16,000 steps per inch if driving a 10 tpi lead screw). The drive is shipped in 1/8th step mode. Additional jumpers required if lower resolution wanted..

Each axis has a potentiometer to allow maximum motor current drive adjustment.

The signal screw terminals can be directly connected to a PC's parallel port (or through a break-out board) to drive the boards STEP and DIRECTION input signals.

Each axis has an ENA# pin to allow enabling/disabling of the motor current-drivers.

If you want a break-out board, look here:breakout board s under hardware

Signal Screw terminal (from Left): GND-YDIR-YSTEP-XDIR-XSTEP-+5V

Please Read the DATASHEET for more information!:coming soon

These drive boards are Fully Assembled and Tested.

If you have more questions regarding using the board with your application: Contact Xylotex

Before using the device, the potentiometers must be set for proper current output, which requires the use of your voltage/multimeter! When running at High Current (generally 2.0A/phase or above), convective cooling (fan) required.

USA Paypal ordering coming soon
International XS-3525/8S-2 Paypal Ordering coming soon

The stepper motor drive is also sometimes known as a stepper motor controller. Drive is more appropriate, as a PC is generally used to control the board.
