The main point: if you disconnect the fan connector and switch on
the power supply, it will record the fault status to the internal
memory and the power supply will become unusable permanently. When you switch on the power supply it will power on for 2-3 seconds and turn to stand by mode.
There was an unlucky attempt to reset the fault status via USB to I2C adapter based on CH341A chip.
There is an idea to reset the fault status via USB to PMBus adapter, but
it costs almost as a new or used power supply. Please, submit a
solution if you got one.

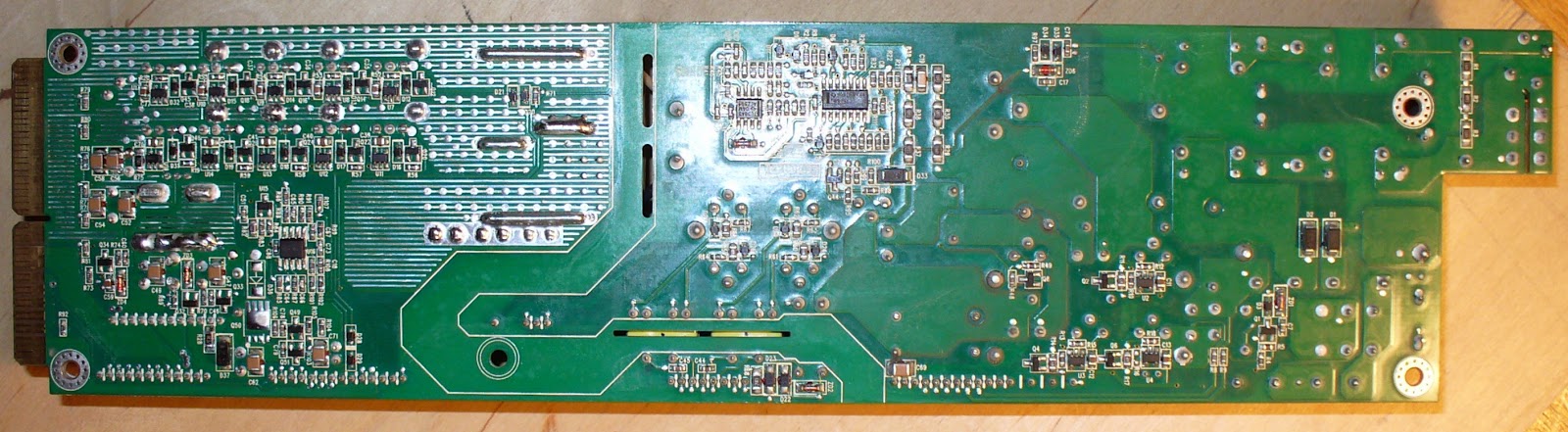

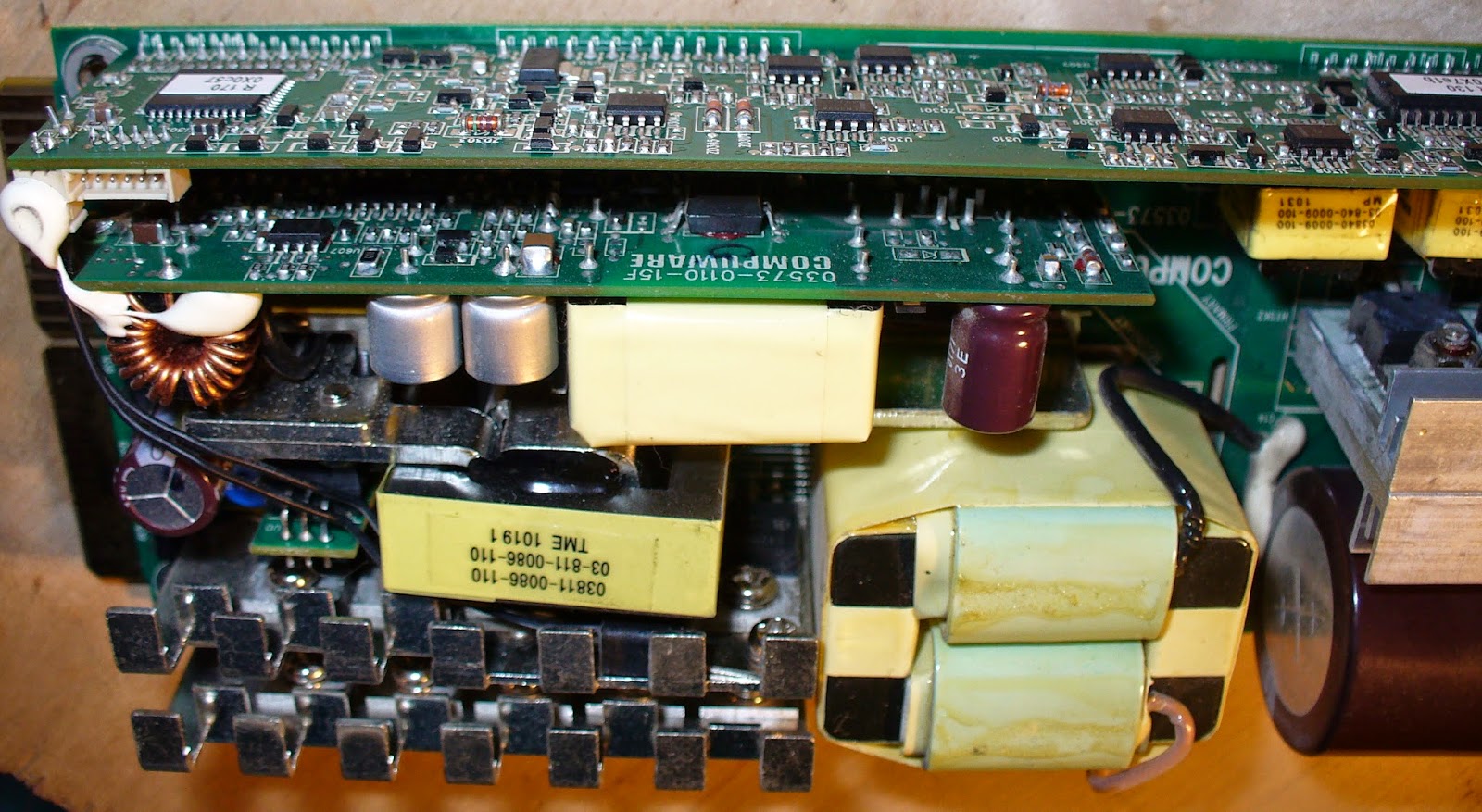

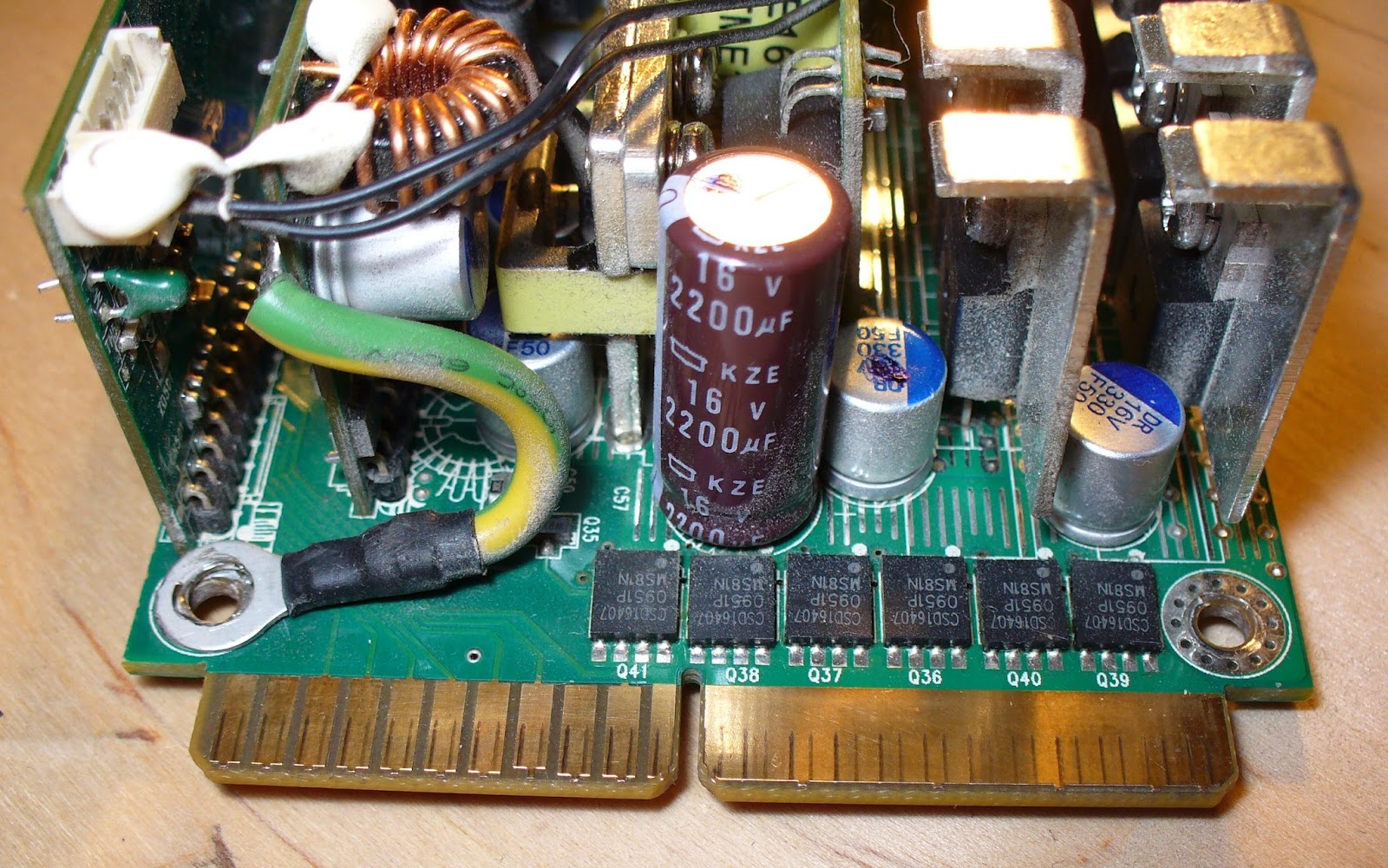

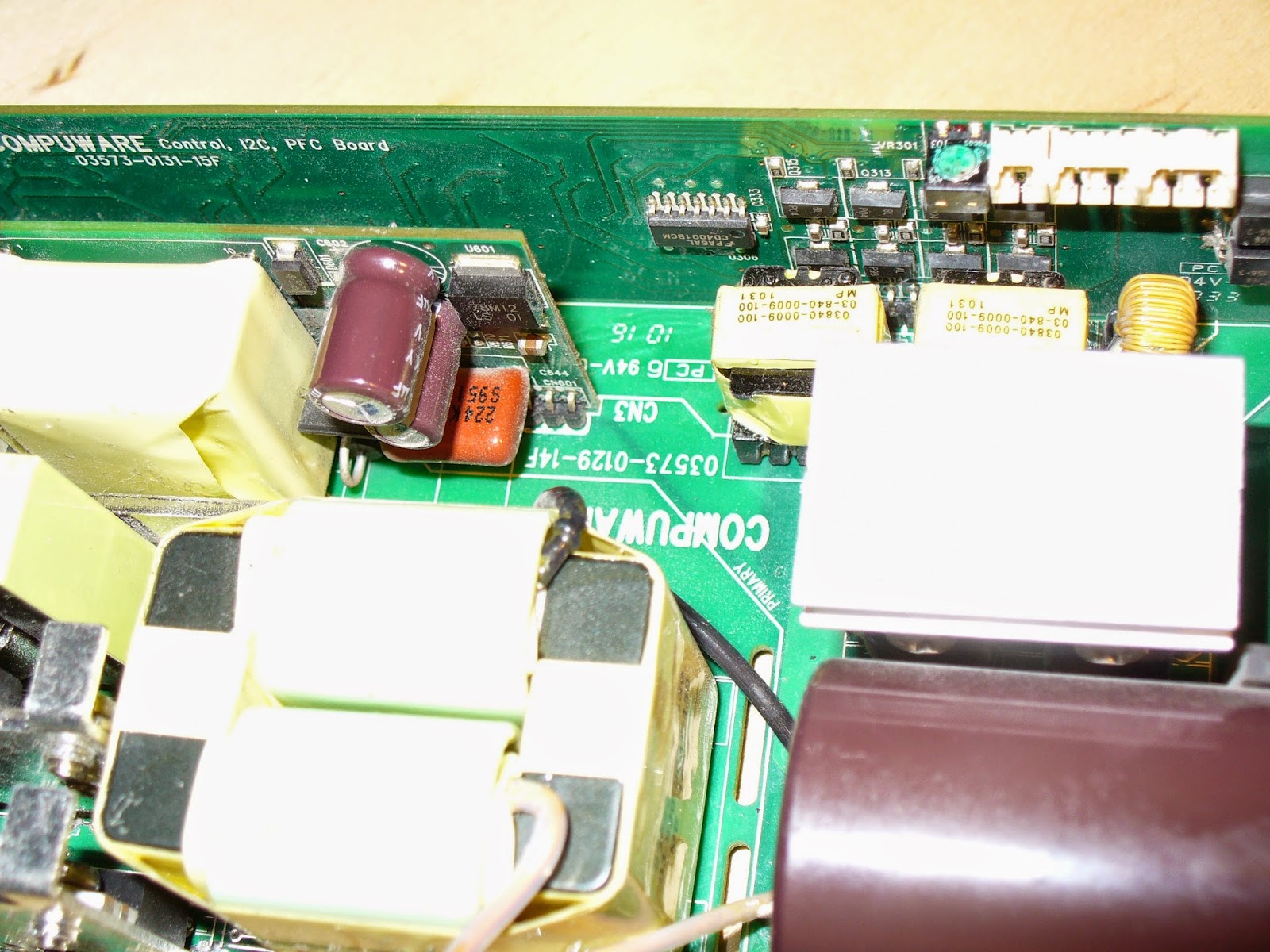

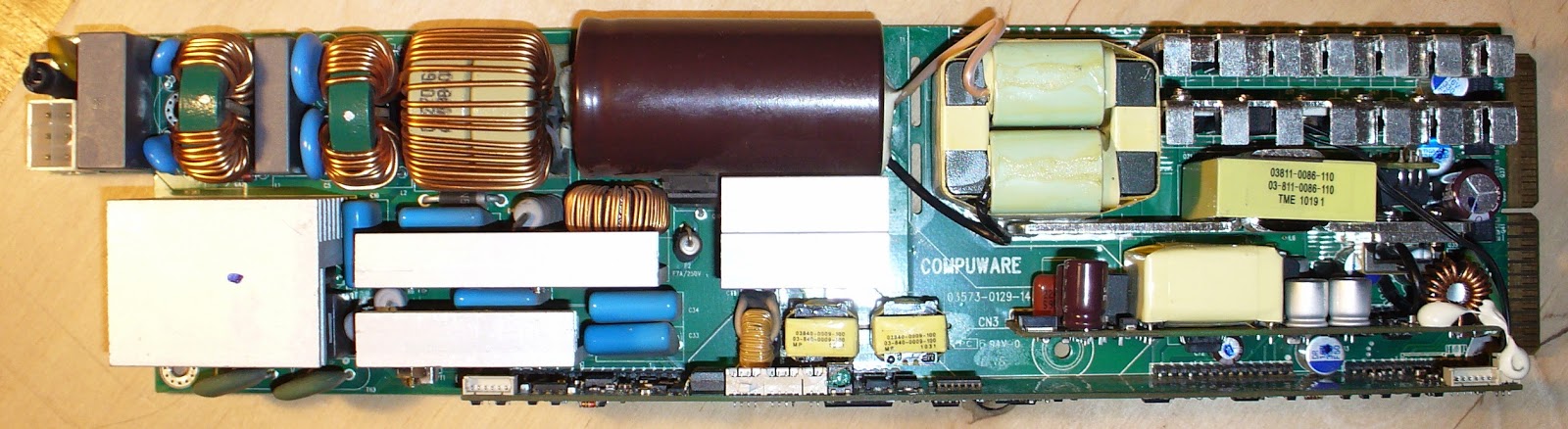

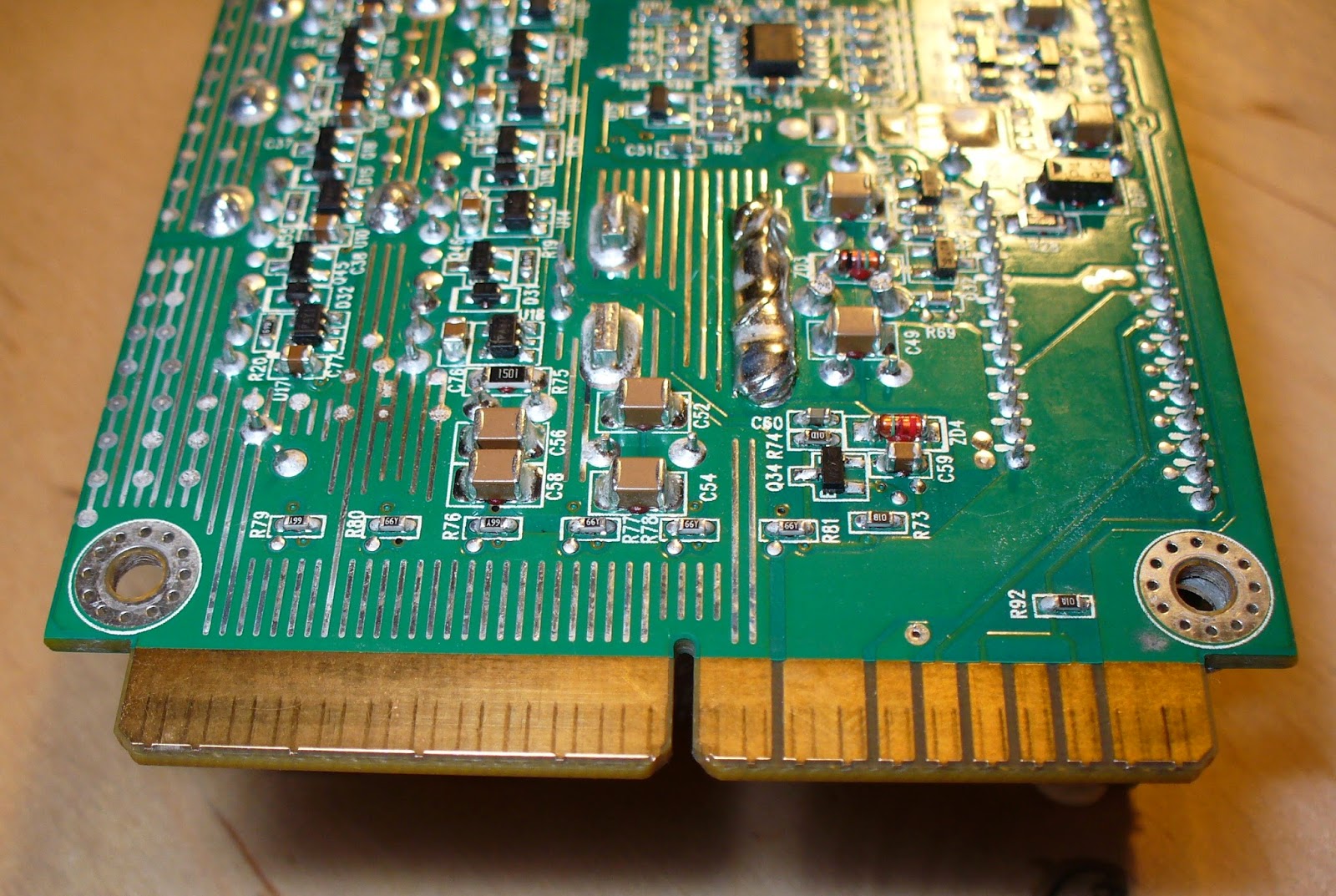

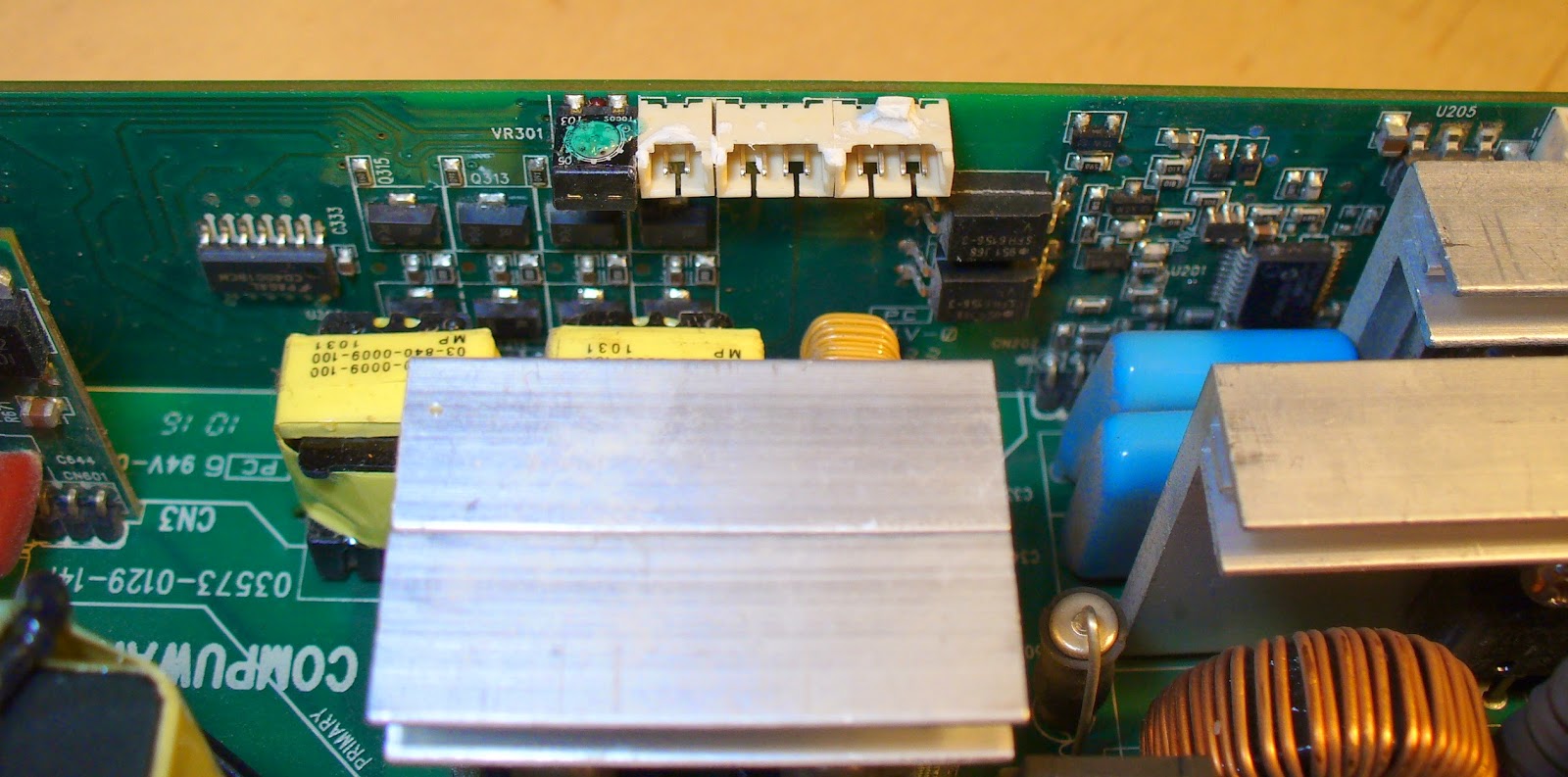

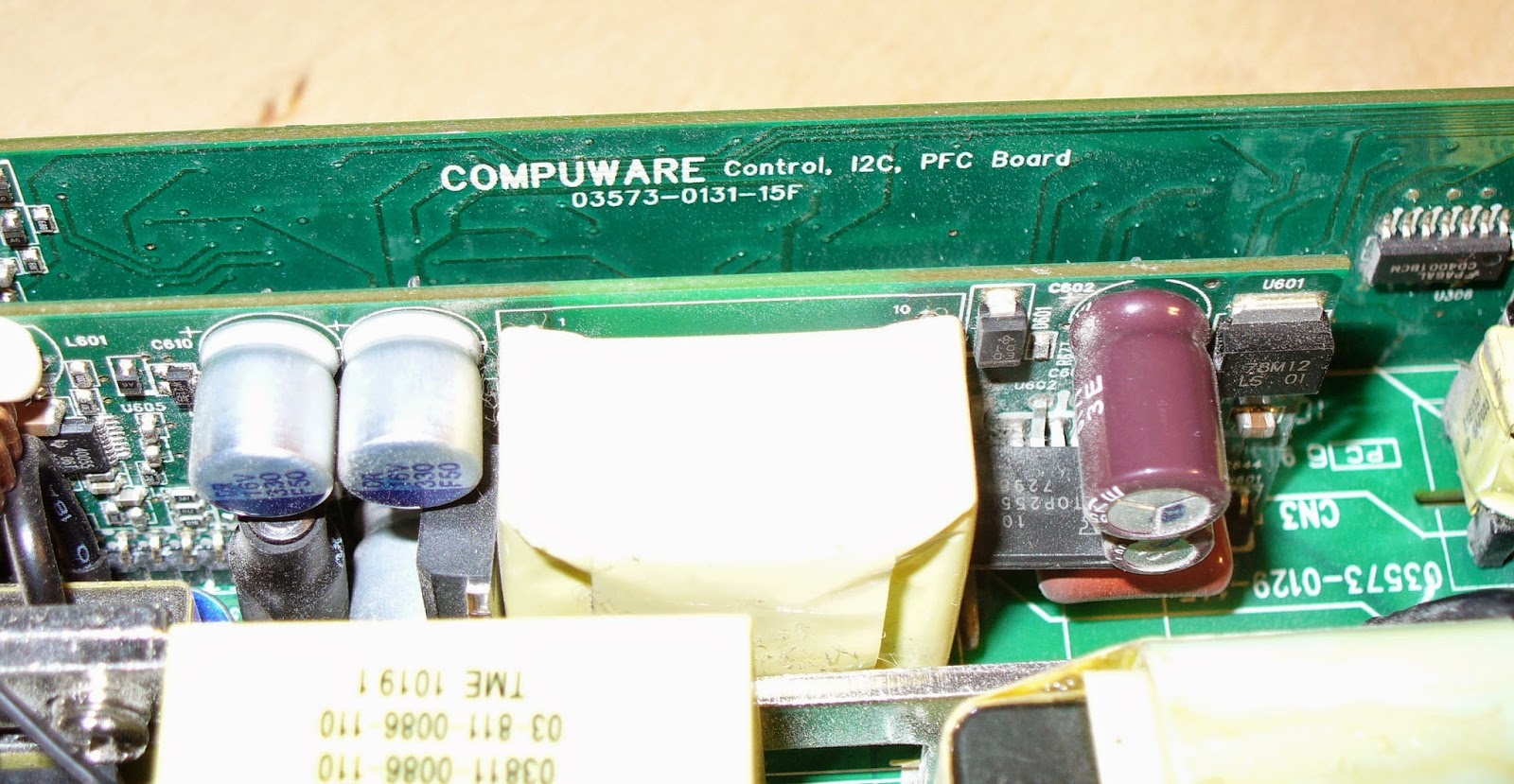

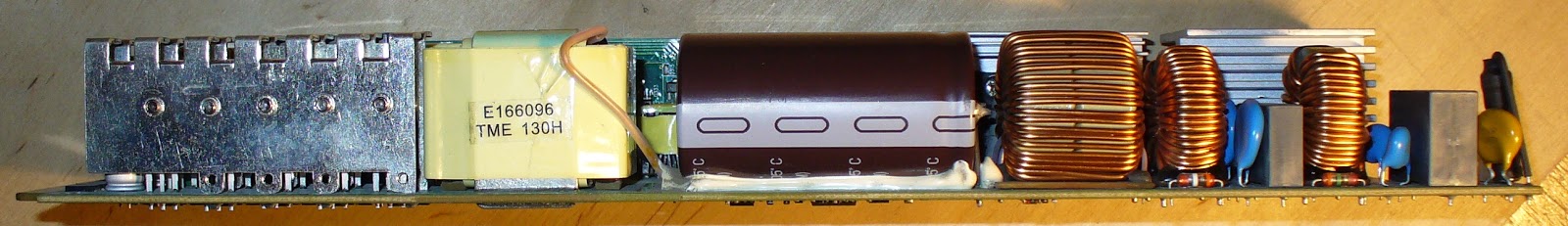

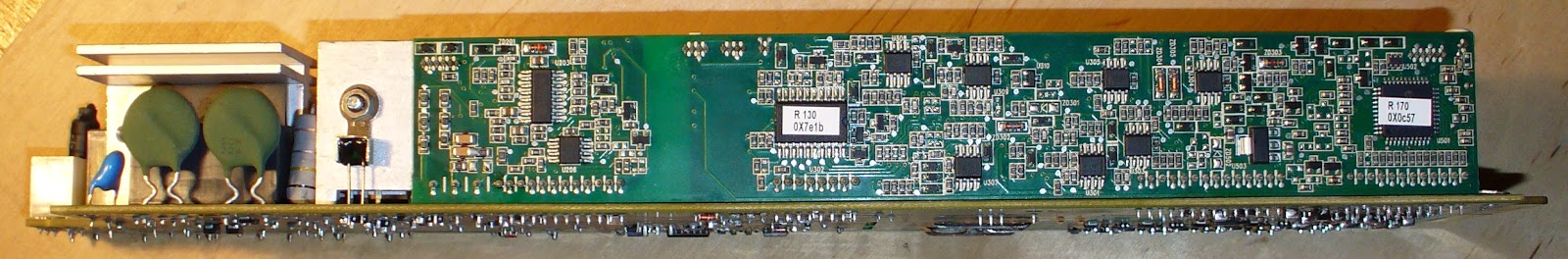

Main control ICs inside Microchip PIC18F44J10, Microchip PIC16F690, UCC3895DW, UCC3818AD. Compuware PCB 03573-0129-14F, 03573-0110-15F, 03573-0131-15F.

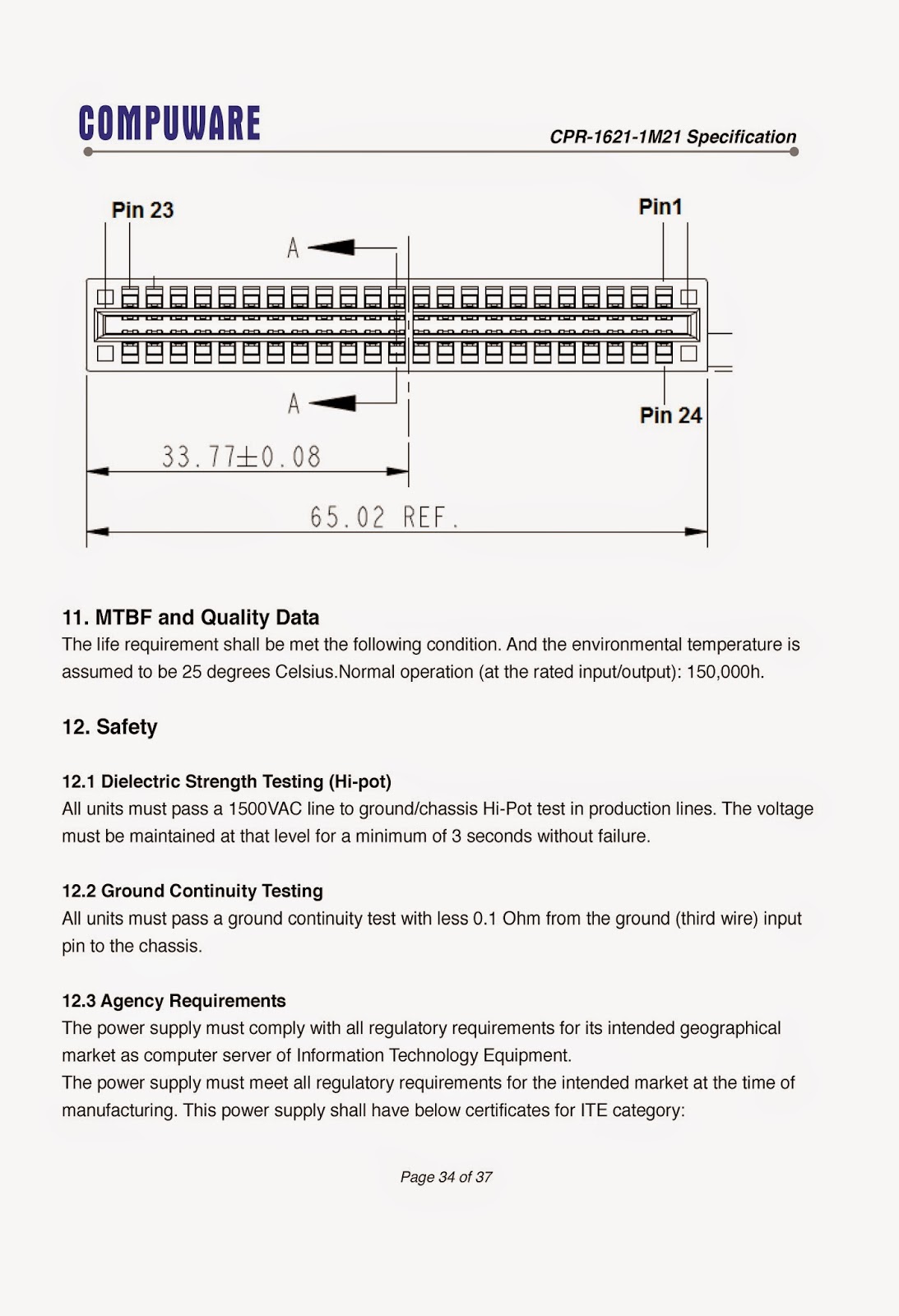

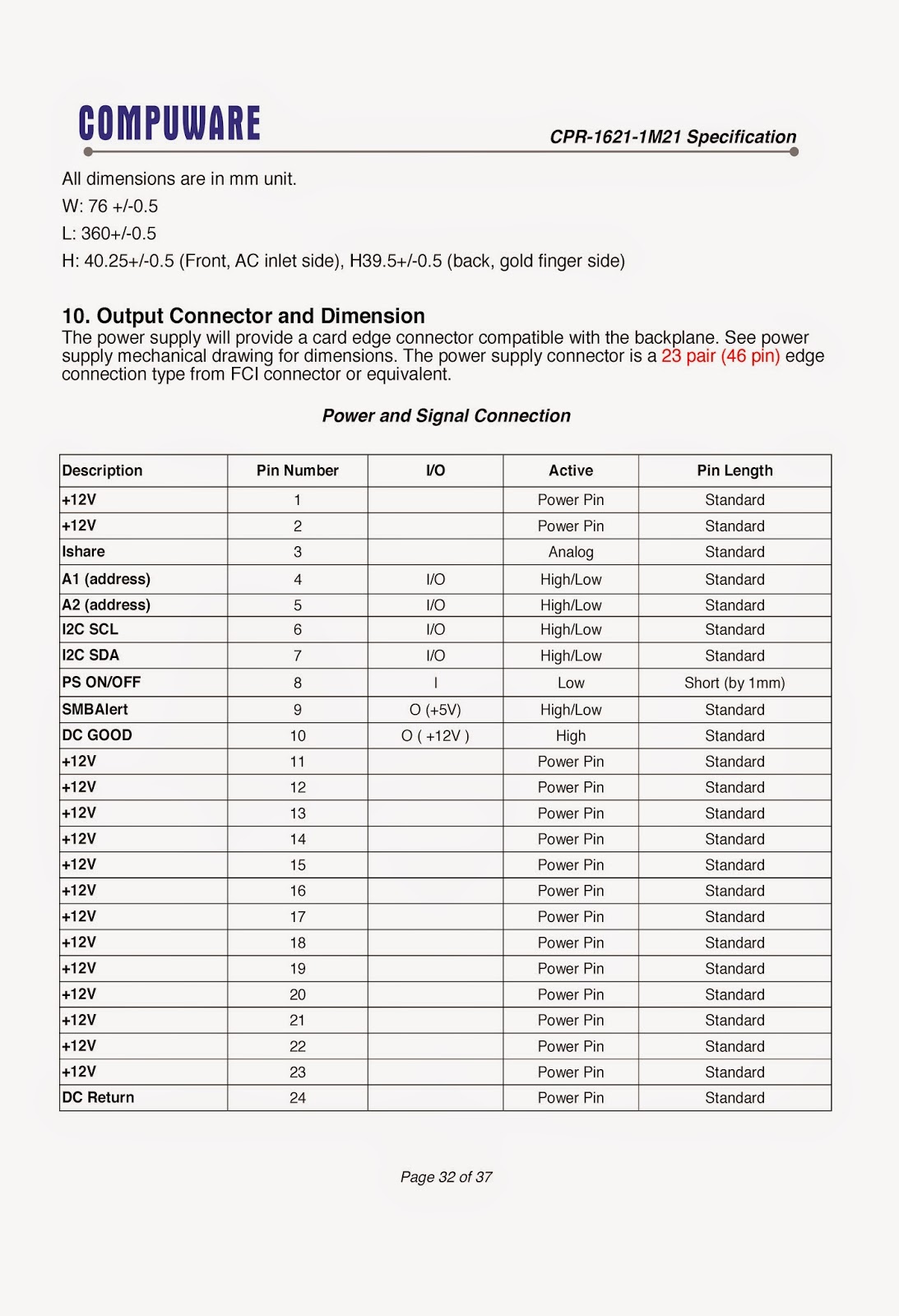

Main document: Compuware CPR-1621-1M21 power supply
file_640_525 by Dmitry Pakhatov
Main control ICs inside Microchip PIC18F44J10, Microchip PIC16F690, UCC3895DW, UCC3818AD. Compuware PCB 03573-0129-14F, 03573-0110-15F, 03573-0131-15F.
Main document: Compuware CPR-1621-1M21 power supply
file_640_525 by Dmitry Pakhatov

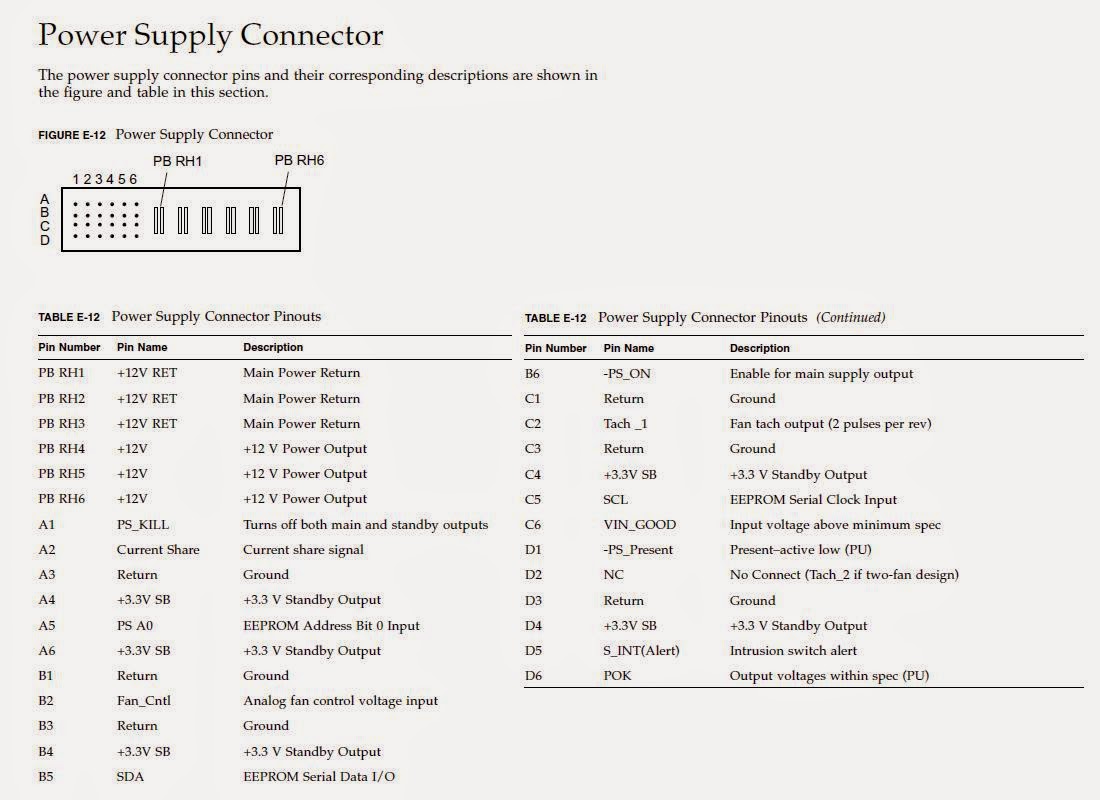

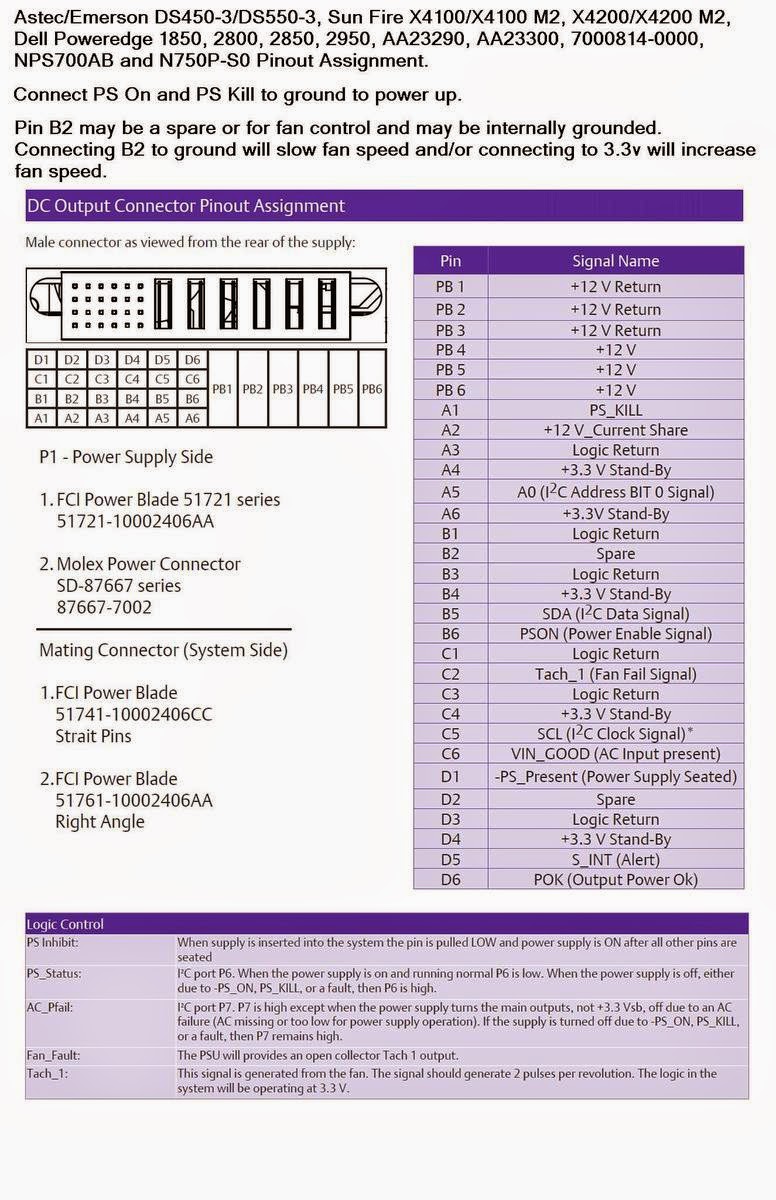

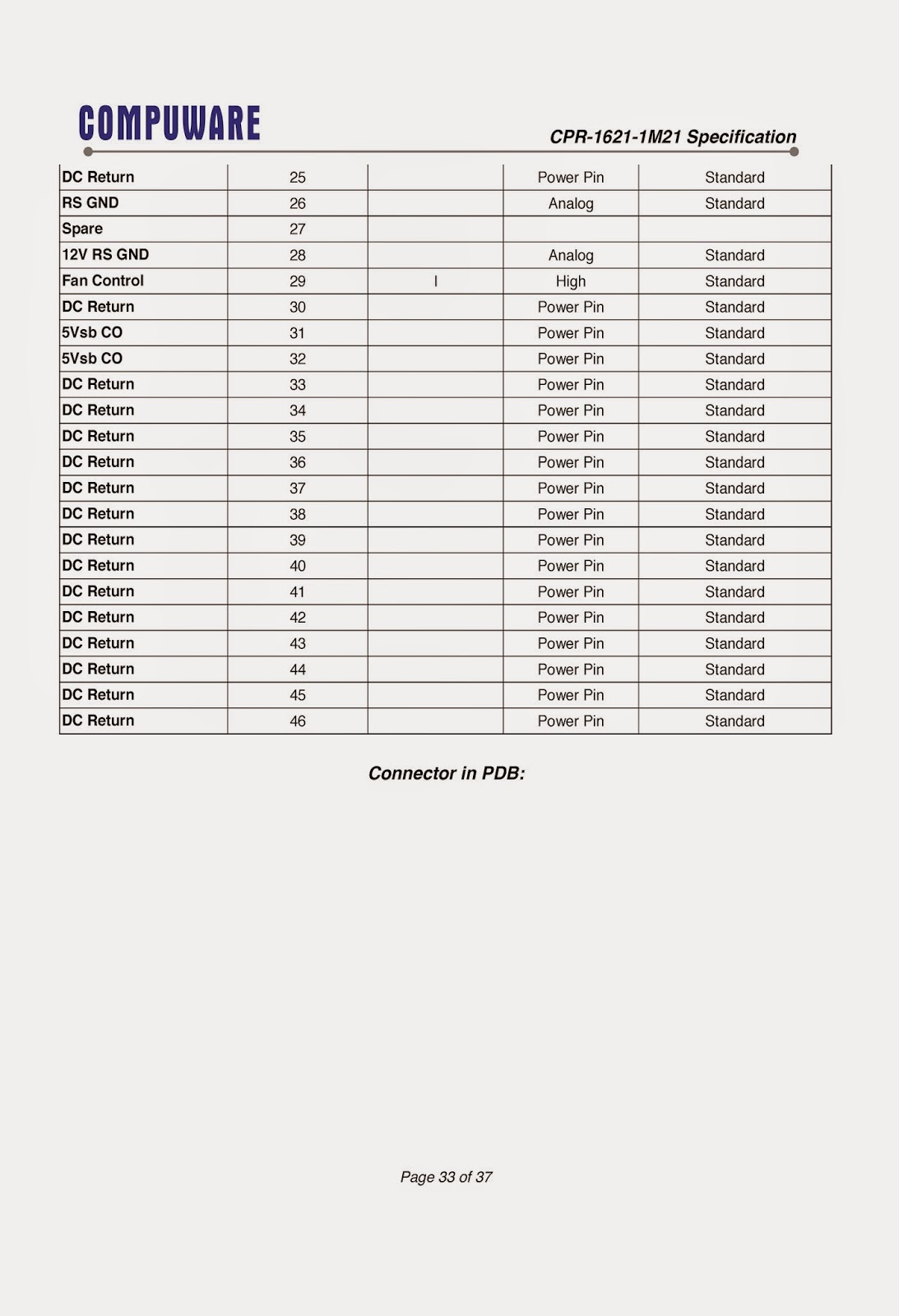

Pinouts:
Additional documents: https://www.scribd.com/collections/11667525/Compuware-Supermicro
From the document http://www.scribd.com/doc/251546659/80PLUS-PWS-1K62P-1R follows that Supermicro PWS-1K62P-1R is COMPUWARE TECHNOLOGY CPR-1621-1M2 1620W power supply.
Additional documents: https://www.scribd.com/collections/11667525/Compuware-Supermicro
From the document http://www.scribd.com/doc/251546659/80PLUS-PWS-1K62P-1R follows that Supermicro PWS-1K62P-1R is COMPUWARE TECHNOLOGY CPR-1621-1M2 1620W power supply.
Supermicro PWS-1K41P-1R inside
