The Collins 51J-3 is not merely a receiver; it is a mechanical covenant with the radio art. The labels from the front panel—CRYSTAL FILTER, SELECTIVITY, PASSING, LIMITER—are the vocabulary of an era when the operator shaped the signal with their hands. This is the soul of a 1950s masterpiece.
A look back — The 51J-3 (and its military sibling, the R-388) was the pinnacle of HF engineering from 1952 to 1956. Designed for professionals and serious amateurs, its 18-tube triple-conversion architecture delivered sensitivity and stability that set the standard. It lacks a product detector, making SSB a dance with the BFO, yet many swear its crystal-filter audio surpasses the later mechanical filters of the 51J-4.
Selectivity and the CRYSTAL FILTER — The SELECTIVITY control adjusts the IF bandwidth, while the CRYSTAL FILTER provides razor-sharp rejection of adjacent interference. PASSING and LIMITER manage the noise-limiter circuit, allowing the operator to set the threshold for pulse-type noise. This is where the operator works the radio to achieve the perfect balance of signal and noise.
Living with the 'mechanical' radio — Critics point out its lack of SSB, its 85W power draw, and the fact it was often sold without a cabinet. But its fans are unwavering: fantastic audio, the smooth, solid feel of the dials, and the undeniable warmth of glowing tubes. The 51J-3 is a monument to an engineering philosophy where quality and durability were paramount.
⣠control & performance
⺠The 'CRYSTAL' filter — a crystal lattice filter that gave the 51J-3 its legendary shape factor. The PASSING and LIMITER controls are part of the noise-limiter circuit, a feature ahead of its time.
The 51J-3 is often described as “the best receiver Collins ever built†— a benchmark for the '50s.
Other Resources
For those who wish to delve deeper into the Collins 51J-3 and its variants, a comprehensive collection of original documentation, high-resolution scans, and modern restoration notes is available in the main receiver directory.
📠Explore the Full ArchiveOriginal Manuals & Brochures
- 51J-3 Operator’s Manual – Available in three parts (
51J3-Manual_part1_33p.pdf,_part2_34p_200dpi.pdf,_part3_25p_200dpi.pdf) with searchable OCR versions. - Period Sales Brochures – Multiple high-resolution scans (
51J3-Brochure_8p_400col.pdf,_400gs.pdf, etc.) detailing the receiver's features and specifications. - Collins Filter Catalog – A comprehensive guide to the various mechanical and crystal filters used in Collins equipment.
Technical & Service Data
- Schematic Diagrams – Including
51j3~R366-Collins-Schematic_1p.pdffor detailed circuit analysis. - Mechanical Filters – A dedicated document (
Collins-MechFilters_17p.pdf) explaining the filter technology that set Collins receivers apart. - PTO (Permeability Tuned Oscillator) Restoration – A guide titled
New_Life_for_51J_PTO_6p_ocr.pdffor rebuilding this critical component.
Image Gallery

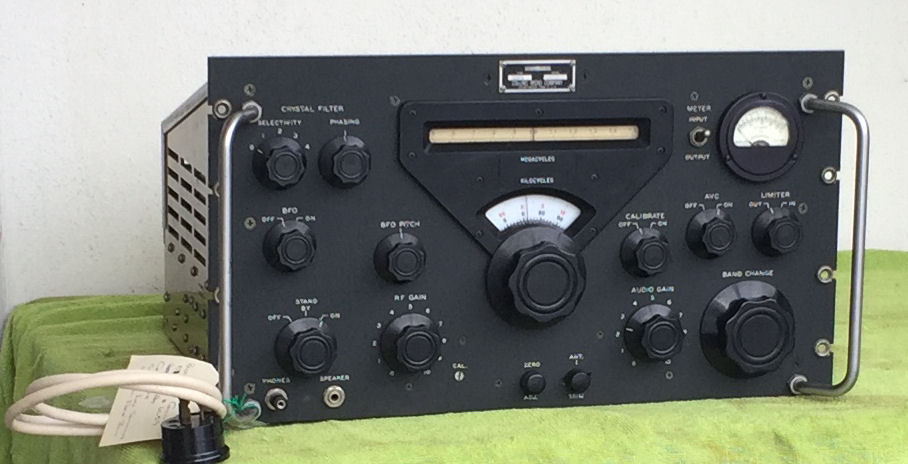

- The Gallery subfolder contains additional photographs of the receiver, its front panel (including the CRYSTAL FILTER, SELECTIVITY, PASSING, and LIMITER controls), internal chassis views, and related test equipment.
- Key images include
51J3-front.jpgand51J3-front.pngfor visual reference.
Additional Resources
- Collins 354A-1 Kit Manual – Available in multiple versions for those interested in Collins' broader product line.
- Test Reports – Including
51J3-Collins-SN6659-Tests_1p-20260806.pdfwith performance measurements from a specific unit. - Kitparts Reference – A provider of parts and kits for restoration projects.
